Brand: DESTACO

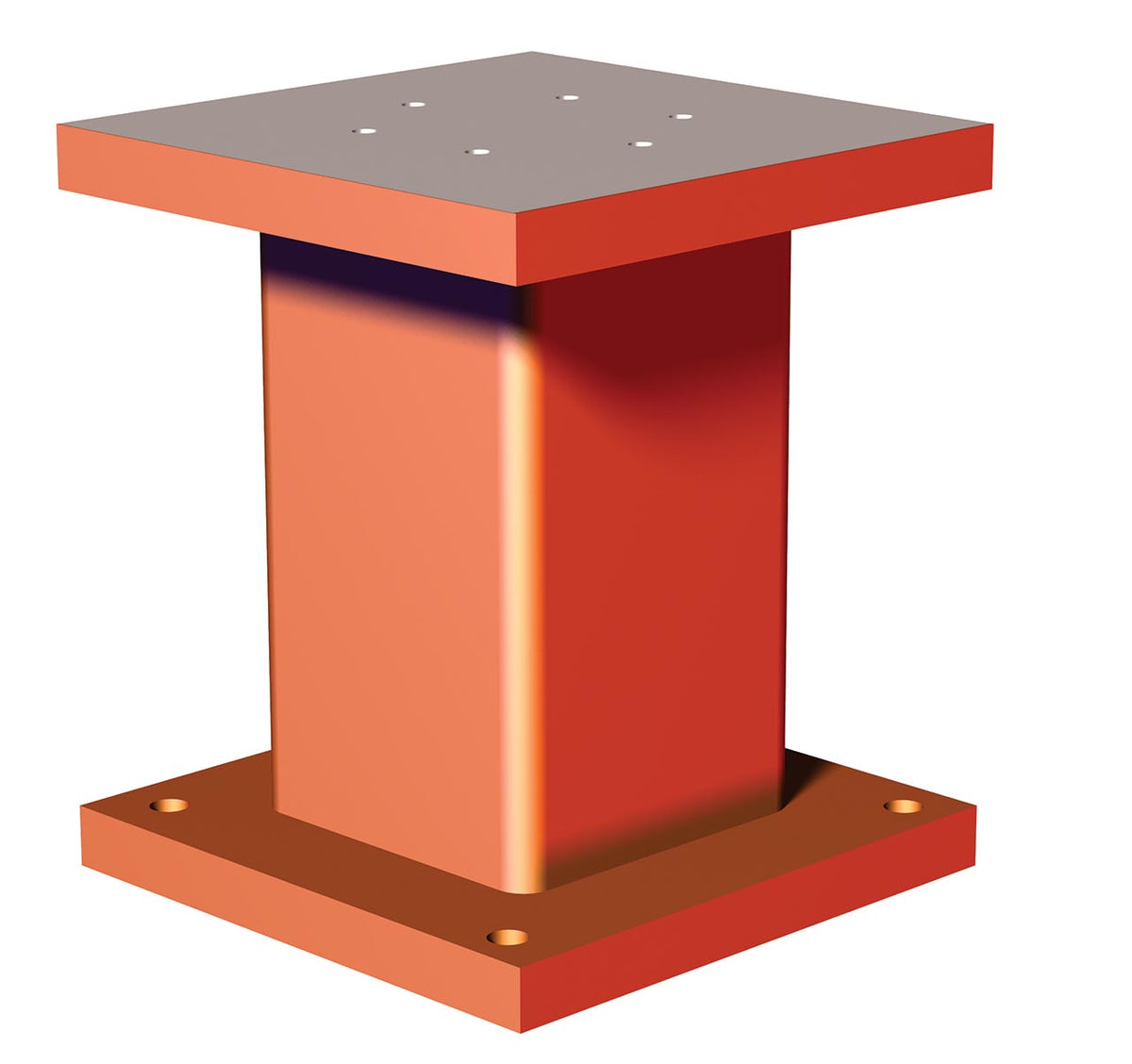

DESTACO CPI-HTW-800-4 Hold Table Weldment - 4" Post - 800mm High
SKU: DE-STA-CO-CPI-HTW-800-4
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Elevate your automation, workholding, and containment solutions with DESTACO CPI-HTW-800-4 Hold Table Weldment - the perfect pedestal base for a robust parts nest. Designed for use with Mid Mount assemblies, this 4" square hold table weldment pairs seamlessly with 45mm or 60mm flange and end mount assemblies. Its 203.2mm length and width make it ideal for accommodating a variety of tube sizes, while its sturdy steel construction ensures reliability and durability. Experience high-performance with this catalog favorite, featuring a mounting pattern of 4xM10 x 1.50 thru on 79.4mm square and available in 45B or 60B tube size. Trust DESTACO for all your hold table needs.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-HTW-800-4 Hold Table Weldment - 4" Post - 800mm High
Pedestal Hold Table Weldment, when used with Mid Mount assemblies, servers as a pedestal base for a robust parts nest Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- 4" square Pedestal Hold Table Weldment when used in conjunction with 45mm or 60mm flange and end mount assemblies serves as a pedestal base for a robust parts nest.
Tube Diameter (mm) | 45, 60 |
Tube Diameter (in) | 1.77, 2.36 |
Length (mm) | 203.2 |
Length (in) | 8.000 |
Width (mm) | 203.2 |
Width (in) | 8.000 |
Height (mm) | 800.0 |
Height (in) | 31.500 |
Material | Steel |
Mounting Pattern | 4xM10 x 1.50 thru on 79.4 mm square |
Product Type | Hold Table |
Tube Size | 45B or 60B |
Weight (kg) | 33.96 |
Weight (lb) | 74.87 |
Product Series Description | Pedestal Hold Table |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | bodybuilder end effector |
