*For all inquires, please call (586)463-3200 or Contact Us!*
Currently for sale:
Used 2006 HAAS HRT310 Tooling and Workholding
Used 2006 HAAS TRT210B Tooling and Workholding

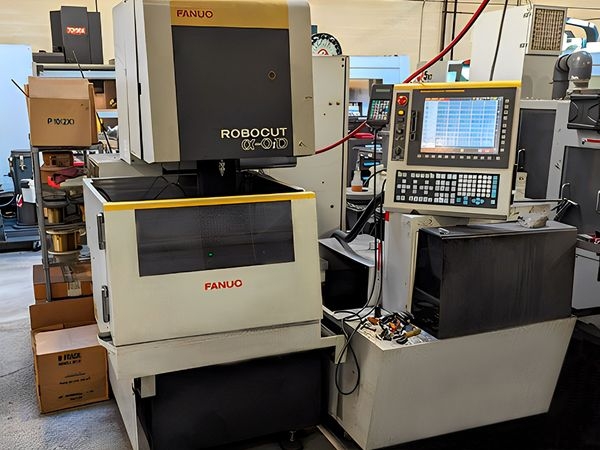

Used 2000 FANUC ROBOCUT ALPHA OIB EDM

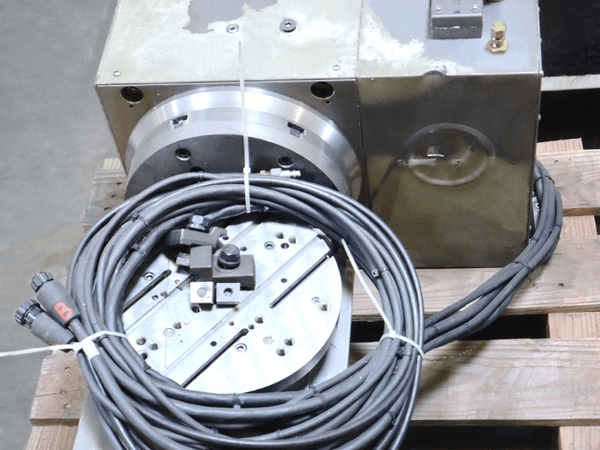

Used 2006 HAAS HRT310 Tooling and Workholding - $4,000
All specs and additional information can be found here:
https://www.haascnc.com/machines/rotaries-indexers/rotary-tables/models/hrt310.html
| PLATTER |
S.A.E |
METRIC |
| Platter Diameter |
12.20 in |
310 mm |
| Max Weight on Platter (w/support) |
435 lb |
197.3 kg |
| Max Weight on Platter (unsupported) |
218 lb |
98.7 kg |
| Number of Std T-Slots |
6 @ 60° |
6 @ 60° |
| SPINDLE |
S.A.E |
METRIC |
| Max Speed |
75 °/sec |
75 °/sec |
| Max Torque |
300 ft-lbf |
407 Nm |
| Runout Max |
0.0010 in |
0.025 mm |
| Center Height |
9.000 in |
228.60 mm |
| Backlash |
30 arc-sec |
30 arc-sec |
| Brake Torque @ 100 psi/6.9 bar |
500 ft-lbf |
678 Nm |
| Gear Ratio |
72:1 |
72:1 |
| Timing |
2:1 |
2:1 |
| INDEXING |
S.A.E |
METRIC |
| Accuracy (±) |
± 15 arc-sec |
± 15 arc-sec |
| Repeatability |
10 arc-sec |
10 arc-sec |
| Resolution |
0.001 ° |
0.001 ° |
| Worm Gear Dia |
9.4 in |
235 mm |
| Max Rotation/Step (with rotary control) |
999.999 ° |
999.999 ° |
| GENERAL |
S.A.E |
METRIC |
| Power Requirement |
115 VAC ± 10% @ 15 A |
115 VAC ± 10% @ 15 A |
| Operating Temp (max ambient) |
100 °F |
38 °C |
| AIR REQUIREMENTS |
S.A.E |
METRIC |
| Air Pressure Max |
150 psi |
10.3 bar |
| DIMENSIONS - SHIPPING |
S.A.E |
METRIC |
| Export Crate |
32 in x 17 in x 27 in |
82 cm x 42 cm x 69 cm |
| Weight |
510 lb |
232.0 kg |
Used 2006 HAAS TRT210B Tooling and Workholding - $7,000
Any additional information can be found here:
https://www.haascnc.com/content/dam/haascnc/en/service/manual/operator/english---trt-tilting-table-operator's-manual---2002.pdf
| DIMENSIONS |
TRT210B |
| A |
24.34" |
| B |
8.48" |
| C |
+/- 120° |
| D |
1.000" |
| E |
9.000" |
| F |
0.40" |
| G |
15.90" |
| H |
17.65" |
| J |
6.00" |
| K |
31.1" |
