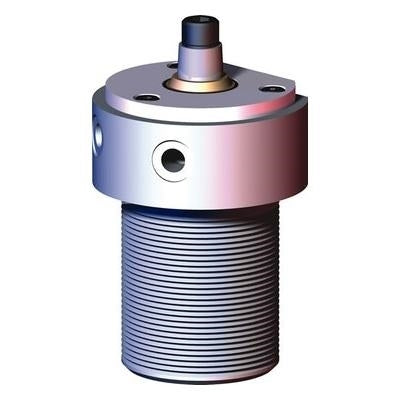

DESTACO 89E63-008-2L - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC

Brand: DESTACO

DESTACO 89E63-008-2L - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC

SKU: DE-STA-CO-89E63-008-2L
MPN: 89E63-008-2L

  • $736.21
    Unit price per
  • Save $47.97
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Experience the impressive capabilities of these proven and reliable Destaco Pneumatic Swing Clamps with threaded body styles. DESTACO 89E63-008-2L is designed to be mounted in either a tapped hole or through-hole, these clamps offer versatile use in a range of applications including welding and assembly. With a 360-degree radial clamping arm and the ability to withstand several million cycles, these clamps are lightweight yet robust. With a maximum operating pressure of 8 bars and a stroke length of 26.0mm, these clamps provide a strong clamping force of 1,430N (321lbf) at 5 bars (72psi). The air consumption is 1.080 dm³ (0.038 in³) per double stroke at 5 bars (72psi) and the stroke during rotation is 18.0mm (0.71in). The vertical clamp stroke is 8.0mm (0.32in).

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 89E63-008-2L - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. Metric threaded bodies can be mounted in a tapped hole or through-hole for recessed mounting. The clamping arm can be positioned 360 degrees radially.

  • Lightweight and robust, designed for several million cycles
  • Clamp arms and accessories sold separately
  • Maximum operating pressure 8 bar (120 psi)
Stroke (mm) 26.0
Stroke (in) 1.020
Cylinder Bore (mm) 63
Cylinder Bore (in) 2.48
Clamping Force @ 5Bar[72Psi] (N) 1,430
Clamping Force @ 5Bar[72Psi] (lbf.) 321
Mount Threaded Body
Replacement Seal Kit 89B/E63-2-00
Swing Direction LH
Air Port size G-1/4
Air Consumption (per double stroke at 5 bar) (dm³) 1.080
Air Consumption (per double stroke at 7 psi) (in³) 0.038
Stroke during rotation (mm) 18.0
Stroke during rotation (in) 0.71
Vertical clamp stroke (mm) 8.0
Vertical clamp stroke (in) 0.32
Sensor Ready No
Weight (kg) 1.67
Weight (lb) 3.68
Product Series Description Swing Clamp
