Brand: DESTACO

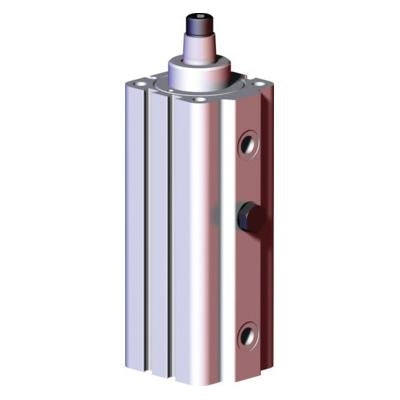

DESTACO 89R40-010-2 - PNEUMATIC SWING CLAMP

SKU: DE-STA-CO-89R40-010-2
MPN: 89R40-010-2

$414.72
Unit price per
Save $17.73

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

MODEL: 89R40-010-2
The compact design and high reliabilityMake these swing clamps suitable for applications where rapid and unobstructed access to the clamping station is required. New, updated design accomodates 4mm round as well as 6.5mm X 5mm T-slot style switches.
Swing direction is field adjustable between left or right
Multiple mounting accessoriesSensor ready
Robust design for several millions cycles

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 89R40-010-2 - PNEUMATIC SWING CLAMP

Product Details

The compact design and high reliability make these swing clamps suitable for applications where rapid and unobstructed access to the clamping station is required. New, updated design accommodates 4mm round as well as 6.5mm X 5mm T-slot style switches.

Swing direction is field adjustable between left or right
Multiple mounting accessories
Sensor ready
Robust design for several million cycles

Stroke (mm)	31.5
Stroke (in)	1.240
Cylinder Bore (mm)	40
Cylinder Bore (in)	1.57
Clamping Force @ 5Bar[72Psi] (N)	380
Clamping Force @ 5Bar[72Psi] (lbf.)	85
Mount	Block style
Replacement Seal Kit	89R40-00
Swing Direction	LH, RH, Straight
AirPort size	G-1/8
Air Consumption (per double stroke at 5 bar) (dm³)	0.430
Air Consumption (per double stroke at 7 psi) (in³)	0.015
Stroke during rotation (mm)	21.5
Stroke during rotation (in)	0.85
Vertical clamp stroke (mm)	10.0
Vertical clamp stroke (in)	0.39
Sensor Ready	Yes
Weight (kg)	0.95
Weight (lb)	2.09
Product Series Description	Swing Clamp
