Brand: DESTACO

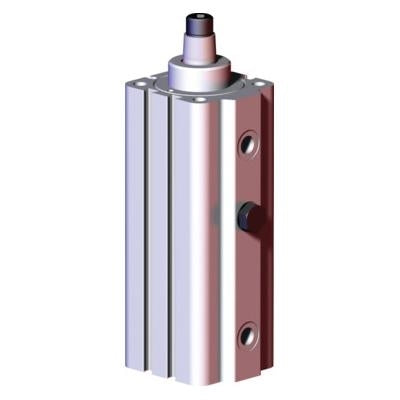

DESTACO 89R32-010-2 - PNEUMATIC SWING CLAMP

SKU: DE-STA-CO-89R32-010-2
MPN: 89R32-010-2

$369.59
Unit price per
Save $28.58

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Discover the versatile DESTACO 89R32-010-2 - PNEUMATIC SWING CLAMP! This compact yet reliable design allows for quick and easy access to the clamping station. The updated design now accommodates both 4mm round and 6.5mm X 5mm T-slot style switches. Customize the swing direction to your needs and choose from multiple mounting accessories. With a robust construction and the ability to withstand several million cycles, this clamp provides a clamping force of 245N at 5Bar[72Psi]. Enjoy effortless operation with a stroke of 28.0mm and a cylinder bore of 32mm. This product also includes a replacement seal kit and is sensor ready. The lightweight design of only 0.60kg (1.32lb) makes it easy to handle. Don't wait any longer, get your hands on the versatile DESTACO Swing Clamp today!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 89R32-010-2 - PNEUMATIC SWING CLAMP

Product Details

The compact design and high reliability make these swing clamps suitable for applications where rapid and unobstructed access to the clamping station is required. New, updated design accommodates 4mm round as well as 6.5mm X 5mm T-slot style switches.

Swing direction is field adjustable between left or right
Multiple mounting accessories
Sensor ready
Robust design for several million cycles

Stroke (mm)	28.0
Stroke (in)	1.100
Cylinder Bore (mm)	32
Cylinder Bore (in)	1.26
Clamping Force @ 5Bar[72Psi] (N)	245
Clamping Force @ 5Bar[72Psi] (lbf.)	55
Mount	Block style
Replacement Seal Kit	89R32-00
Swing Direction	LH, RH, Straight
Air Port size	G-1/8
Air Consumption (per double stroke at 5 bar) (dm³)	0.250
Air Consumption (per double stroke at 7 psi) (in³)	0.009
Stroke during rotation (mm)	18.0
Stroke during rotation (in)	0.61
Vertical clamp stroke (mm)	10.0
Vertical clamp stroke (in)	0.39
Sensor Ready	Yes
Weight (kg)	0.60
Weight (lb)	1.32
Product Series Description	Swing Clamp
