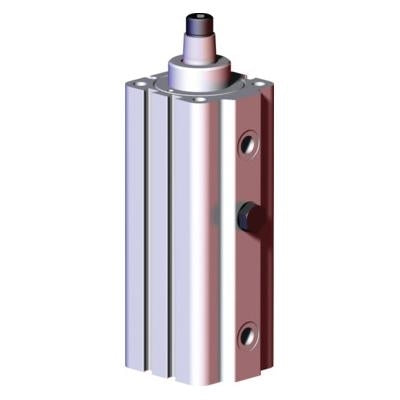

DESTACO 89R40-025-2 - PNEUMATIC SWING CLAMP

SKU: DE-STA-CO-89R40-025-2
MPN: 89R40-025-2

$431.54
Unit price per
Save $33.37

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO 89R40-025-2 - PNEUMATIC SWING CLAMP offers a compact design and unmatched reliability, making it perfect for applications that require fast and easy access to the clamping station. With a newly updated design, it now accommodates both 4mm round and 6.5mm X 5mm T-slot style switches. You can easily adjust the swing direction in the field, and it comes with multiple mounting accessories and is sensor-ready. Built to last for millions of cycles, this robust clamp has a stroke of 46.5mm (1.830 inches) and a cylinder bore of 40mm (1.57 inches). At 5 bar (72 psi) it provides a clamping force of 380N (85 pounds). It is available in LH, RH, and straight swing directions, and has a G-1/8 air port size.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 89R40-025-2 - PNEUMATIC SWING CLAMP

Product Details

The compact design and high reliability make these swing clamps suitable for applications where rapid and unobstructed access to the clamping station is required. New, updated design accommodates 4mm round as well as 6.5mm X 5mm T-slot style switches.

Swing direction is field adjustable between left or right
Multiple mounting accessories
Sensor ready
Robust design for several million cycles

Stroke (mm)	46.5
Stroke (in)	1.830
Cylinder Bore (mm)	40
Cylinder Bore (in)	1.57
Clamping Force @ 5Bar[72Psi] (N)	380
Clamping Force @ 5Bar[72Psi] (lbf.)	85
Mount	Block style
Replacement Seal Kit	89R40-00
Swing Direction	LH, RH, Straight
Air Port size	G-1/8
Air Consumption (per double stroke at 5 bar) (dm³)	0.630
Air Consumption (per double stroke at 7 psi) (in³)	0.022
Stroke during rotation (mm)	21.5
Stroke during rotation (in)	0.85
Vertical clamp stroke (mm)	25.0
Vertical clamp stroke (in)	0.98
Sensor Ready	Yes
Weight (kg)	1.10
Weight (lb)	2.43
Product Series Description	Swing Clamp
