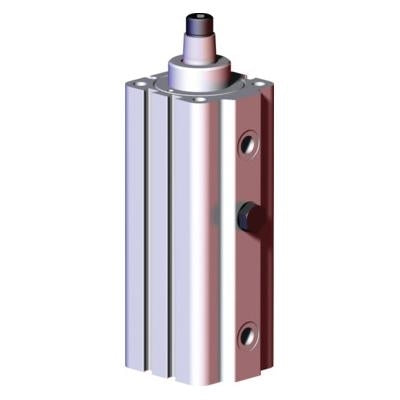

DESTACO  89R20-010-2 - PNEUMATIC SWING CLAMP

Brand: DESTACO

DESTACO 89R20-010-2 - PNEUMATIC SWING CLAMP

SKU: DE-STA-CO-89R20-010-2
MPN: 89R20-010-2

  • $322.34
    Unit price per
  • Save $8.99
Shipping calculated at checkout.

Only -1 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

MODEL: 89R20-010-2
The compact design and high reliabilityMake these swing clamps suitable for applications where rapid and unobstructed access to the clamping station is required. New, updated design accomodates 4mm round as well as 6.5mm X 5mm T-slot style switches.
Swing direction is field adjustable between left or right
Multiple mounting accessories
Sensor ready
Robust design for several millions cycles

*In-stock Destaco products will be shipped within 3 business days. Average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 89R20-010-2 - PNEUMATIC SWING CLAMP

Product Details

The compact design and high reliability make these swing clamps suitable for applications where rapid and unobstructed access to the clamping station is required. New, updated design accommodates 4mm round as well as 6.5mm X 5mm T-slot style switches.

  • Swing direction is field adjustable between left or right
  • Multiple mounting accessories
  • Sensor ready
  • Robust design for several million cycles
Stroke (mm) 21.0
Stroke (in) 0.830
Cylinder Bore (mm) 20
Cylinder Bore (in) 0.79
Clamping Force @ 5Bar[72Psi] (N) 80
Clamping Force @ 5Bar[72Psi] (lbf.) 18
Mount Block style
Replacement Seal Kit 89R20-00
Swing Direction LH & RH
AirPort size M5
Air Consumption (per double stroke at 5 bar) (dm³) 0.070
Air Consumption (per double stroke at 7 psi) (in³) 0.002
Stroke during rotation (mm) 11.0
Stroke during rotation (in) 0.43
Vertical clamp stroke (mm) 10.0
Vertical clamp stroke (in) 0.39
Sensor Ready Yes
Weight (kg) 0.30
Weight (lb) 0.66
Product Series Description Swing Clamp
