Brand: DESTACO

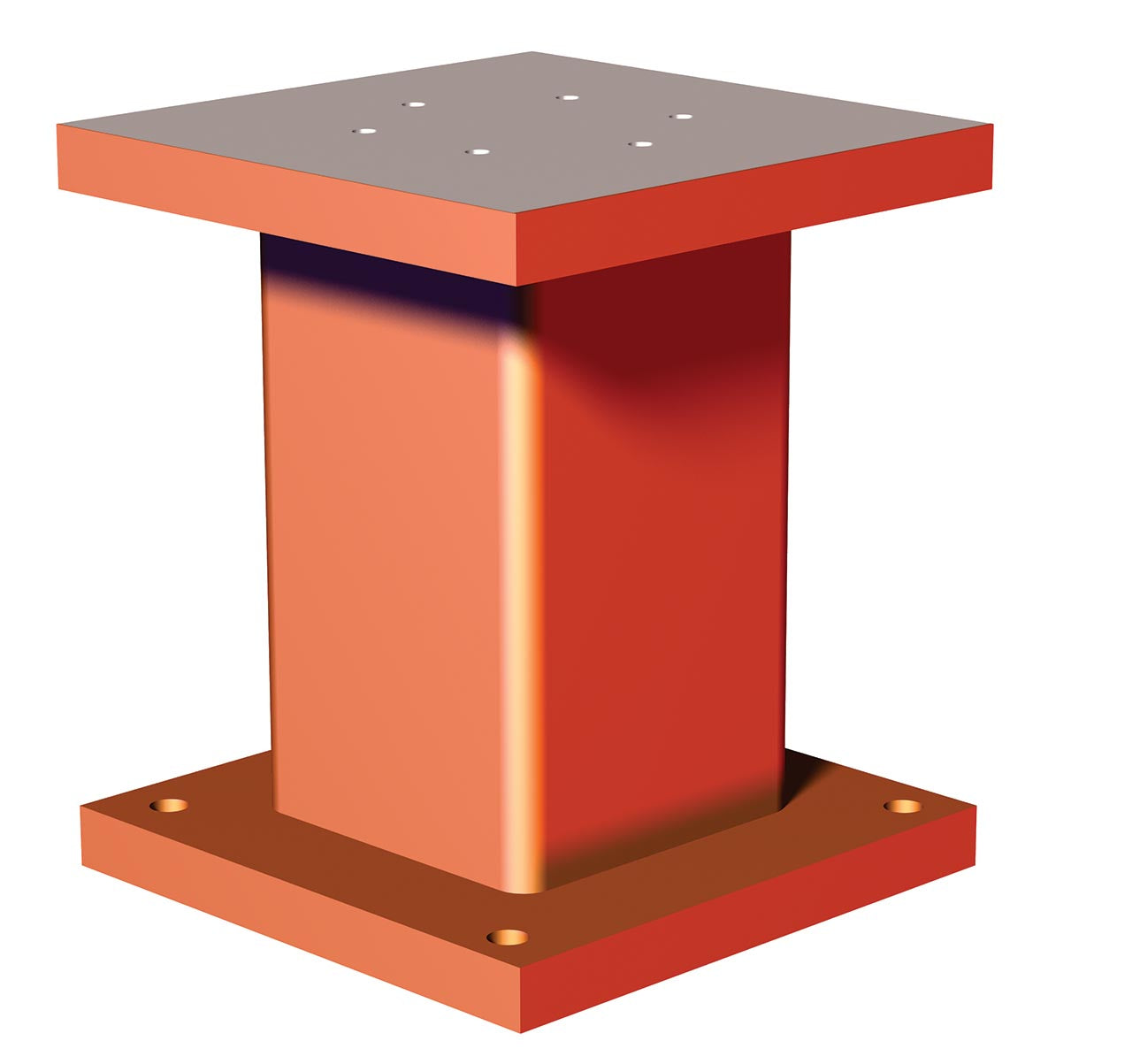

DESTACO CPI-HTW-750 Hold Table Weldment - 6" Post - 750mm High
SKU: DE-STA-CO-CPI-HTW-750
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-HTW-750 Hold Table Weldment - 6" Post - 750mm High Pedestal Hold Table Weldment is the perfect solution for high-performance automation, workholding, and containment needs. With its 6" square Pedestal Hold Table Weldment, in combination with Mid Mount assemblies, it serves as a strong and sturdy base for your parts nest. Made of durable steel and with a mounting pattern of 6xM10 x 1.50 thru and 2x10 P.F. dowel holes on 160 B.C., this Hold Table is a must-have for every production facility. Length (mm) 254.0 Length (in) 10.000 Width (mm) 254.0 Width (in) 10.000 Height (mm) 750.0 Height (in) 29.530 Product Type Hold Table.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-HTW-750 Hold Table Weldment - 6" Post - 750mm High
Pedestal Hold Table Weldment, when used with Mid Mount assemblies, servers as a pedestal base for a robust parts nest Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- 6" square Pedestal Hold Table Weldment when used in conjunction with Mid Mount assemblies serves as a pedestal base for a robust parts nest.
Length (mm) | 254.0 |
Length (in) | 10.000 |
Width (mm) | 254.0 |
Width (in) | 10.000 |
Height (mm) | 750.0 |
Height (in) | 29.530 |
Material | Steel |
Mounting Pattern | 6xM10 x 1.50 thru and 2x10 P.F. dowel holes on 160 B.C. |
Product Type | Hold Table |
Weight (kg) | 46.41 |
Weight (lb) | 102.31 |
Product Series Description | Pedestal Hold Table |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | bodybuilder end effector |
