Brand: DESTACO

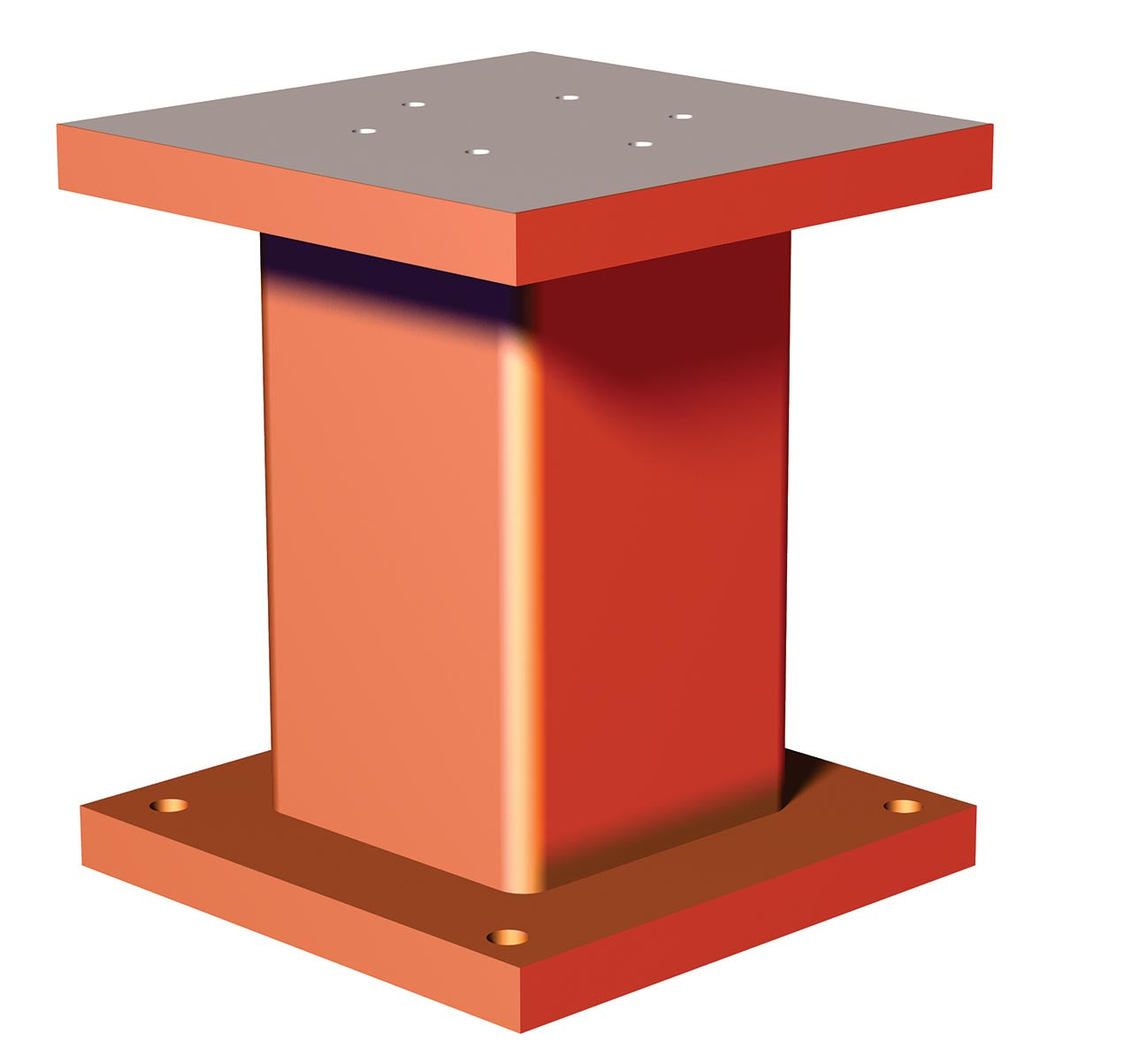

DESTACO CPI-HTW-700-4 Hold Table Weldment - 4" Post - 700mm High
SKU: DE-STA-CO-CPI-HTW-700-4
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO CPI-HTW-700-4 Hold Table Weldment - 4" Post - 700mm HighPedestal Hold Table Weldment, when used with Mid Mount assemblies, servers as a pedestal base for a robust parts nest Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-HTW-700-4 Hold Table Weldment - 4" Post - 700mm High
Pedestal Hold Table Weldment, when used with Mid Mount assemblies, servers as a pedestal base for a robust parts nest Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- 4" square Pedestal Hold Table Weldment when used in conjunction with 45mm or 60mm flange and end mount assemblies serves as a pedestal base for a robust parts nest.
Tube Diameter (mm) | 45, 60 |
Tube Diameter (in) | 1.77, 2.36 |
Length (mm) | 203.2 |
Length (in) | 8.000 |
Width (mm) | 203.2 |
Width (in) | 8.000 |
Height (mm) | 700.0 |
Height (in) | 27.560 |
Material | Steel |
Mounting Pattern | 4xM10 x 1.50 thru on 79.4 mm square |
Product Type | Hold Table |
Tube Size | 45B or 60B |
Weight (kg) | 32.15 |
Weight (lb) | 70.88 |
Product Series Description | Pedistal Hold Table |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | bodybuilder end effector |
