Brand: DESTACO

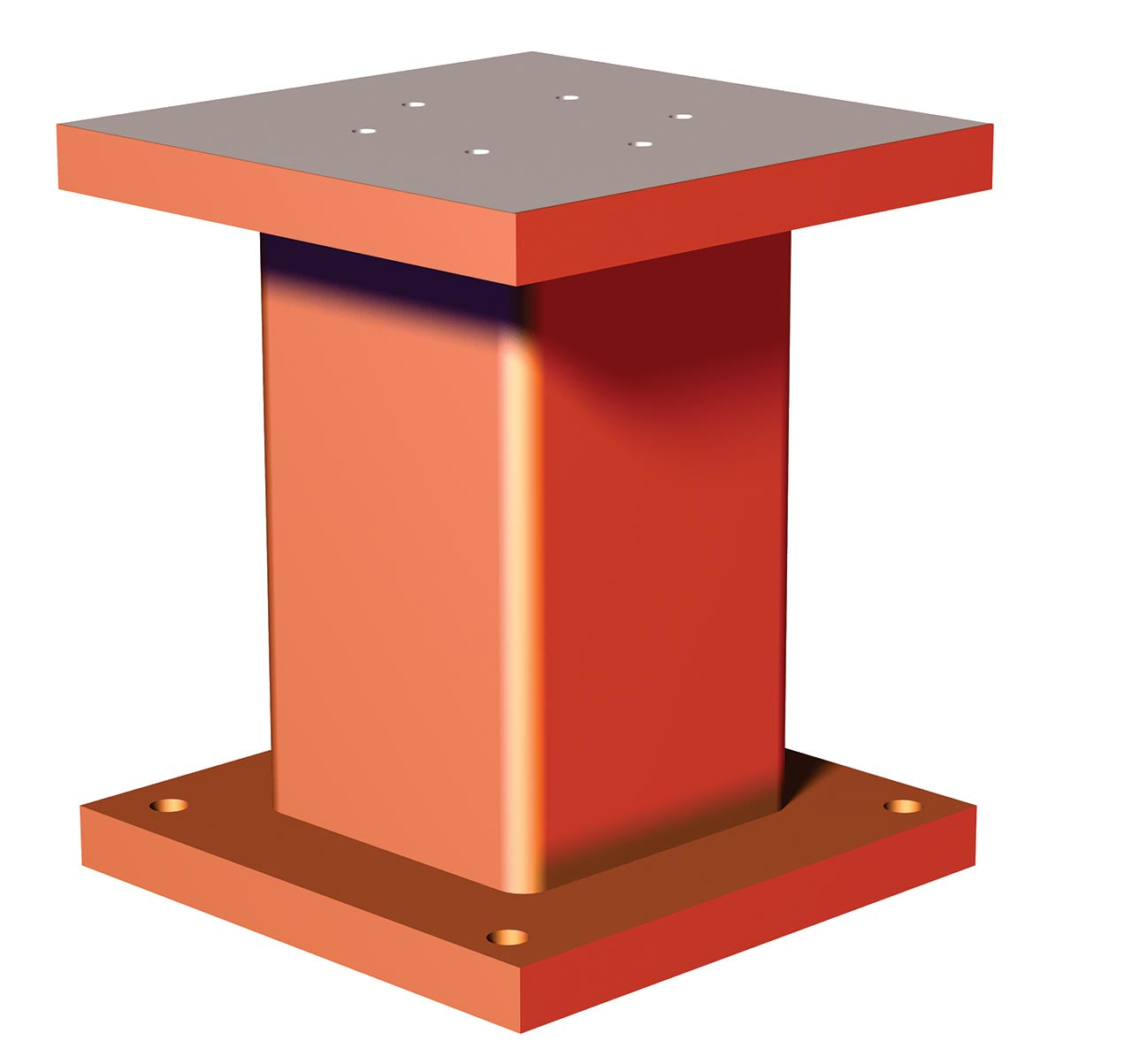

DESTACO CPI-HTW-650-4 Hold Table Weldment - 4" Post - 650mm High

SKU: DE-STA-CO-CPI-HTW-650-4
MPN: CPI-HTW-650-4

$938.83
Unit price per
Save $108.53

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Discover the versatile DESTACO CPI-HTW-650-4 Hold Table Weldment - 4" Post - 650mm High! When paired with Mid Mount assemblies, this weldment seamlessly transforms into a sturdy pedestal base for a powerful parts nest. Experience the excellence of High-Performance Automation, Workholding, & Containment Solutions with the Destaco 4" square Pedestal Hold Table Weldment, designed to work perfectly with 45mm or 60mm flange and end mount assemblies. With a tube diameter of 45mm or 60mm and a length and width of 203.2mm, this robust hold table is made of durable steel and features a mounting pattern of 4xM10 x 1.50 thru on 79.4mm square. Enhance your workflow with the versatile DESTACO hold table today!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-HTW-650-4 Hold Table Weldment - 4" Post - 650mm High

Pedestal Hold Table Weldment, when used with Mid Mount assemblies, servers as a pedestal base for a robust parts nest Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

4" square Pedestal Hold Table Weldment when used in conjunction with 45mm or 60mm flange and end mount assemblies serves as a pedestal base for a robust parts nest.

Tube Diameter (mm)	45, 60
Tube Diameter (in)	1.77, 2.36
Length (mm)	203.2
Length (in)	8.000
Width (mm)	203.2
Width (in)	8.000
Height (mm)	650.0
Height (in)	25.590
Material	Steel
Mounting Pattern	4xM10 x 1.50 thru on 79.4 mm square
Product Type	Hold Table
Tube Size	45B or 60B
Weight (kg)	31.25
Weight (lb)	68.89
Product Series Description	Pedestal Hold Table
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	bodybuilder end effector
