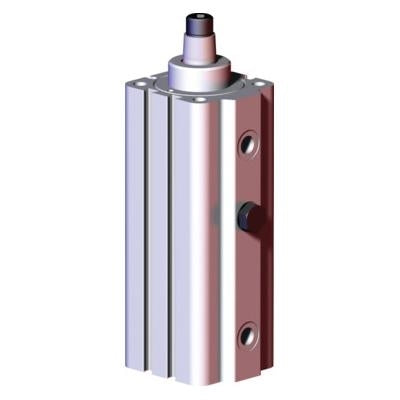

DESTACO 89R63-025-2 - PNEUMATIC SWING CLAMP

Brand: DESTACO

DESTACO 89R63-025-2 - PNEUMATIC SWING CLAMP

SKU: DE-STA-CO-89R63-025-2
MPN: 89R63-025-2

  • $599.70
    Unit price per
  • Save $46.38
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO 89R63-025-2 - PNEUMATIC SWING CLAMP boasts a compact design and unbeatable reliability, making it ideal for applications that require fast and unencumbered access to the clamping station. With an updated design that accommodates both 4mm round and 6.5mm X 5mm T-slot style switches, you'll enjoy even greater versatility and ease of use. Plus, the swing direction can be easily adjusted to the left or right, and multiple mounting accessories and sensor readiness ensure a robust product that can withstand millions of cycles. With an impressive stroke of 58.5mm (2.300 in) and a cylinder bore of 63mm (2.48 in), this swing clamp delivers an impressive clamping force of 970 N (217 lbf) at 5 bar (72psi).

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 89R63-025-2 - PNEUMATIC SWING CLAMP

Product Details

The compact design and high reliability make these swing clamps suitable for applications where rapid and unobstructed access to the clamping station is required. New, updated design accommodates 4mm round as well as 6.5mm X 5mm T-slot style switches.

  • Swing direction is field adjustable between left or right
  • Multiple mounting accessories
  • Sensor ready
  • Robust design for several million cycles

Stroke (mm) 58.5
Stroke (in) 2.300
Cylinder Bore (mm) 63
Cylinder Bore (in) 2.48
Clamping Force @ 5Bar[72Psi] (N) 970
Clamping Force @ 5Bar[72Psi] (lbf.) 217
Mount Block style
Replacement Seal Kit 89R63-00
Swing Direction LH, RH, Straight
AirPort size G-1/4
Air Consumption (per double stroke at 5 bar) (dm³) 2.040
Air Consumption (per double stroke at 7 psi) (in³) 0.072
Stroke during rotation (mm) 33.5
Stroke during rotation (in) 1.32
Vertical clamp stroke (mm) 25.0
Vertical clamp stroke (in) 0.98
Sensor Ready Yes
Weight (kg) 2.80
Weight (lb) 6.17
Product Series Description Swing Clamp
