Brand: DESTACO

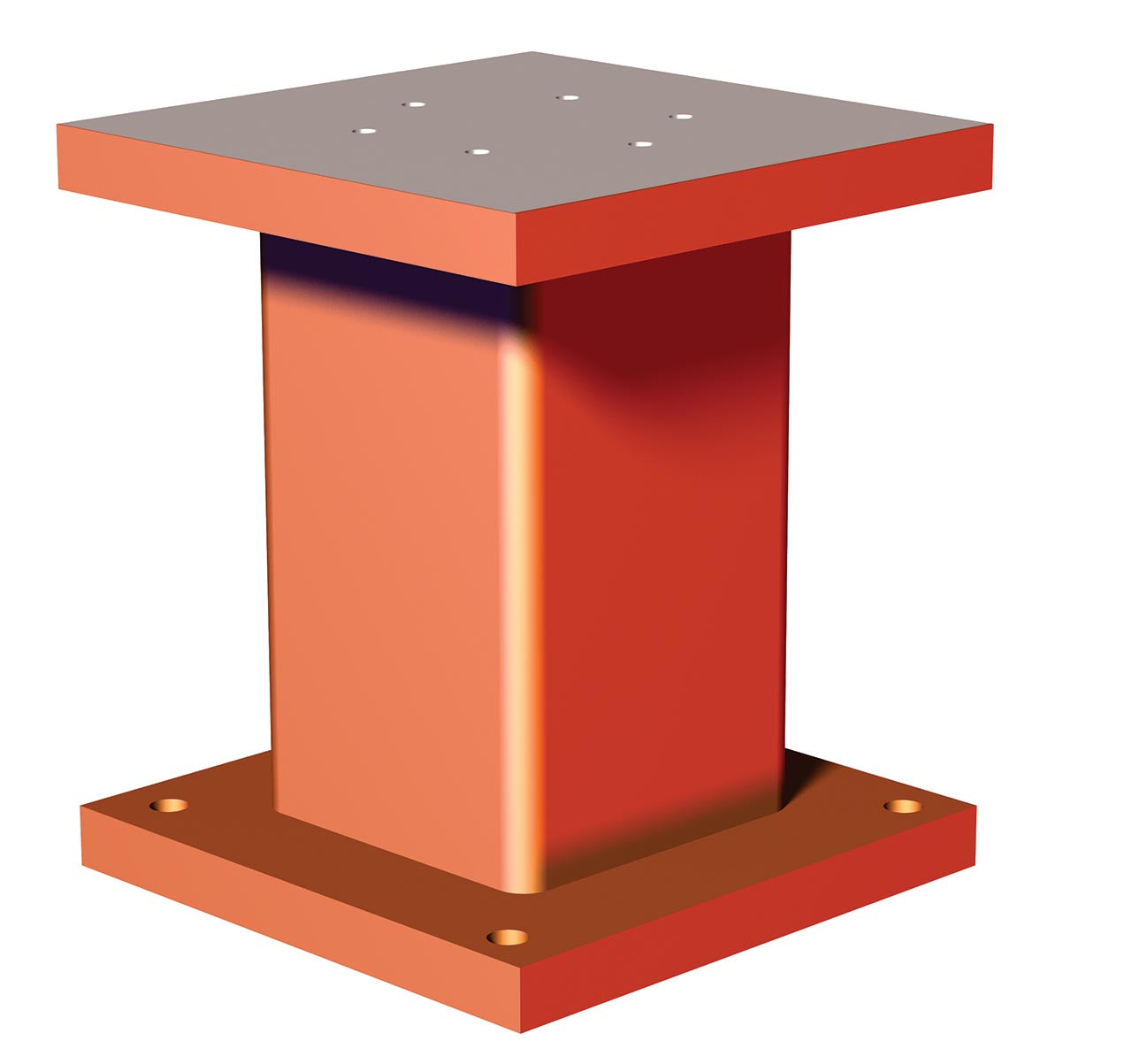

DESTACO CPI-HTW-600 Hold Table Weldment - 6" Post - 600mm High

SKU: DE-STA-CO-CPI-HTW-600
MPN: CPI-HTW-600

$819.79
Unit price per
Save $94.77

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

DESTACO CPI-HTW-600 Hold Table Weldment - 6" Post - 600mm High
Pedestal Hold Table Weldment, when used with Mid Mount assemblies, servers as a pedestal base for a robust parts nest Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-HTW-600 Hold Table Weldment - 6" Post - 600mm High

Pedestal Hold Table Weldment, when used with Mid Mount assemblies, servers as a pedestal base for a robust parts nest Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

6" square Pedestal Hold Table Weldment when used in conjunction with Mid Mount assemblies serves as a pedestal base for a robust parts nest.

Length (mm)	254.0
Length (in)	10.000
Width (mm)	254.0
Width (in)	10.000
Height (mm)	600.0
Height (in)	23.620
Material	Steel
Mounting Pattern	6xM10 x 1.50 thru and 2x10 P.F. dowel holes on 160 B.C.
Product Type	Hold Table
Weight (kg)	42.19
Weight (lb)	93.01
Product Series Description	Pedistal Hold Table
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	bodybuilder end effector
