Brand: DESTACO
DESTACO CPI-ED10-150-075-13 DOUBLE END EXTENSION ARM ASSEMBLY
SKU: DE-STA-CO-CPI-ED10-150-075-13
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description

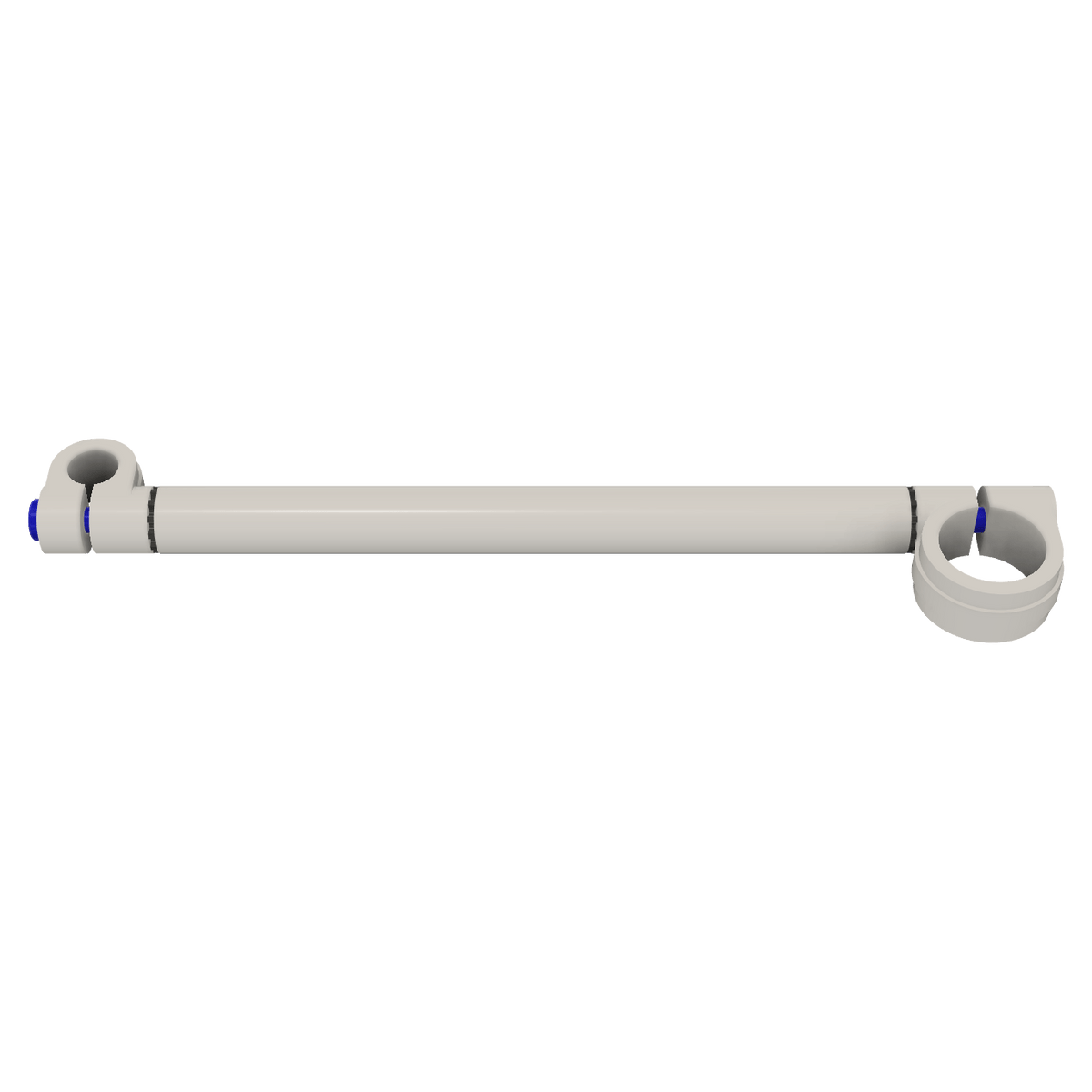

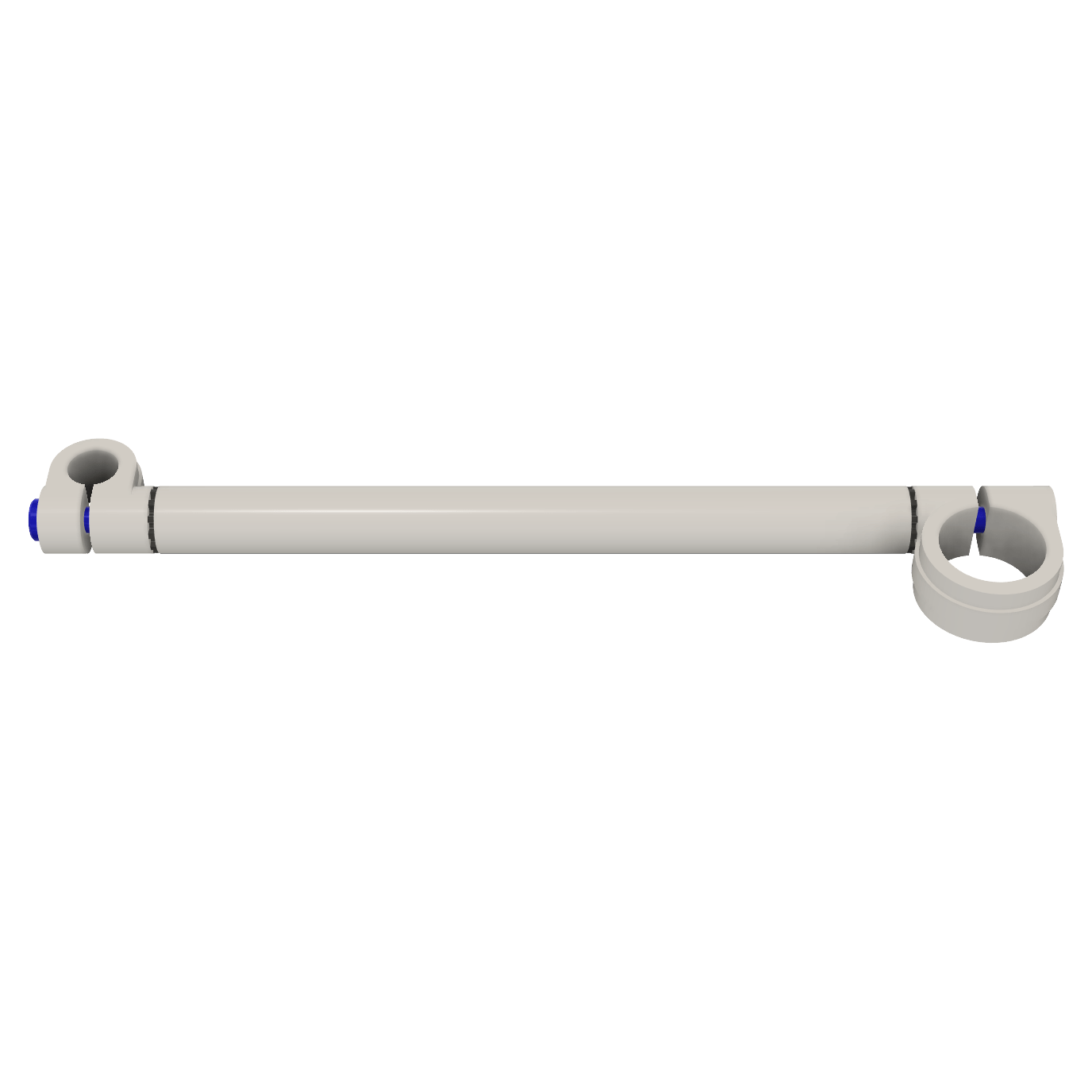

The DESTACO CPI-ED10-150-075-13 Double End Extension Arm Assembly is a versatile swivel arm designed to mount 0.75" apple core accessories onto 1.50" round tubes. It enables 360° rotational adjustments along three axes, offering excellent flexibility for mounting components such as venturi, bumpers, round locators, and proximity switches. The arm measures 334.0 mm (13.150 in) in length and is constructed from durable aluminum with a silver finish. Ideal for high-performance automation and workholding applications, it ensures stability and precision.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-ED10-150-075-13 DOUBLE END EXTENSION ARM ASSEMBLY
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Double bolt swivel arm
- Mounts 0.75"apple core accessories to 1.50" round tube
- Provides 360° of rotational adjustments along (3) axes
- Used to mount venturi, bumpers, round locators, and proximity switches
Apple Core (mm) | 19.0 |
Apple Core (in) | 0.750 |
Tube Diameter (mm) | 38.1 |
Tube Diameter (in) | 1.5 |
Length (mm) | 334.0 |
Length (in) | 13.150 |
Material | Aluminum |
Finish | Silver |
Product Type | Swivel Arm |
Tube Size | 1.50 in |
Weight (kg) | 0.59 |
Weight (lb) | 1.31 |
Product Series Description | Swivel Arm |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | round tooling |
Apple Core Size | 19 |
