DESTACO CPI-190-40-TSA 190MM Telescoping Swivel Arm - 40mm to Applecore Mount

Brand: DESTACO

DESTACO CPI-190-40-TSA 190MM Telescoping Swivel Arm - 40mm to Applecore Mount

SKU: DE-STA-CO-CPI-190-40-TSA
MPN: CPI-190-40-TSA

  • $655.85
    Unit price per
  • Save $75.81
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO CPI-190-40-TSA Telescoping Swivel Arm offers 360° rotational adjustments along three axes for precise positioning of venturi, bumpers, round locators, and proximity switches. It mounts 19.1 mm (0.75") apple core accessories onto a 40 mm (1.61") round tube, with a 50.8 mm (2.00") linear extension for fine-tuned reach and adjustment. Crafted from durable aluminum with a blue finish, it supports up to 190 Nm (140 ft-lbs) of static load. With a length of 201.7 mm (7.940 inches), this swivel arm combines extended reach with compact design, ideal for automation, containment, and workholding applications. It delivers superior flexibility and reliability for demanding industrial environments.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO CPI-190-40-TSA 190MM Telescoping Swivel Arm - 40mm to Applecore Mount

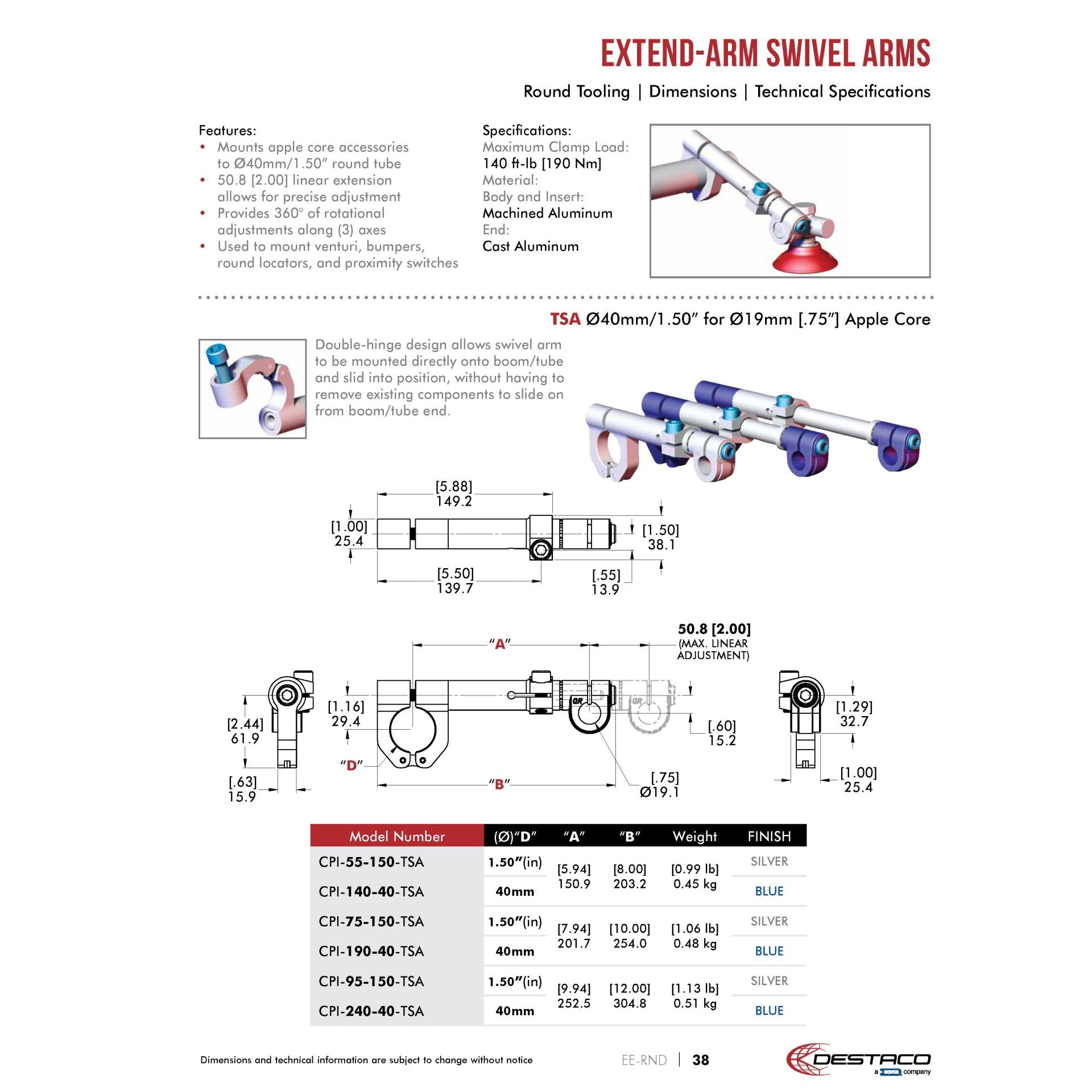

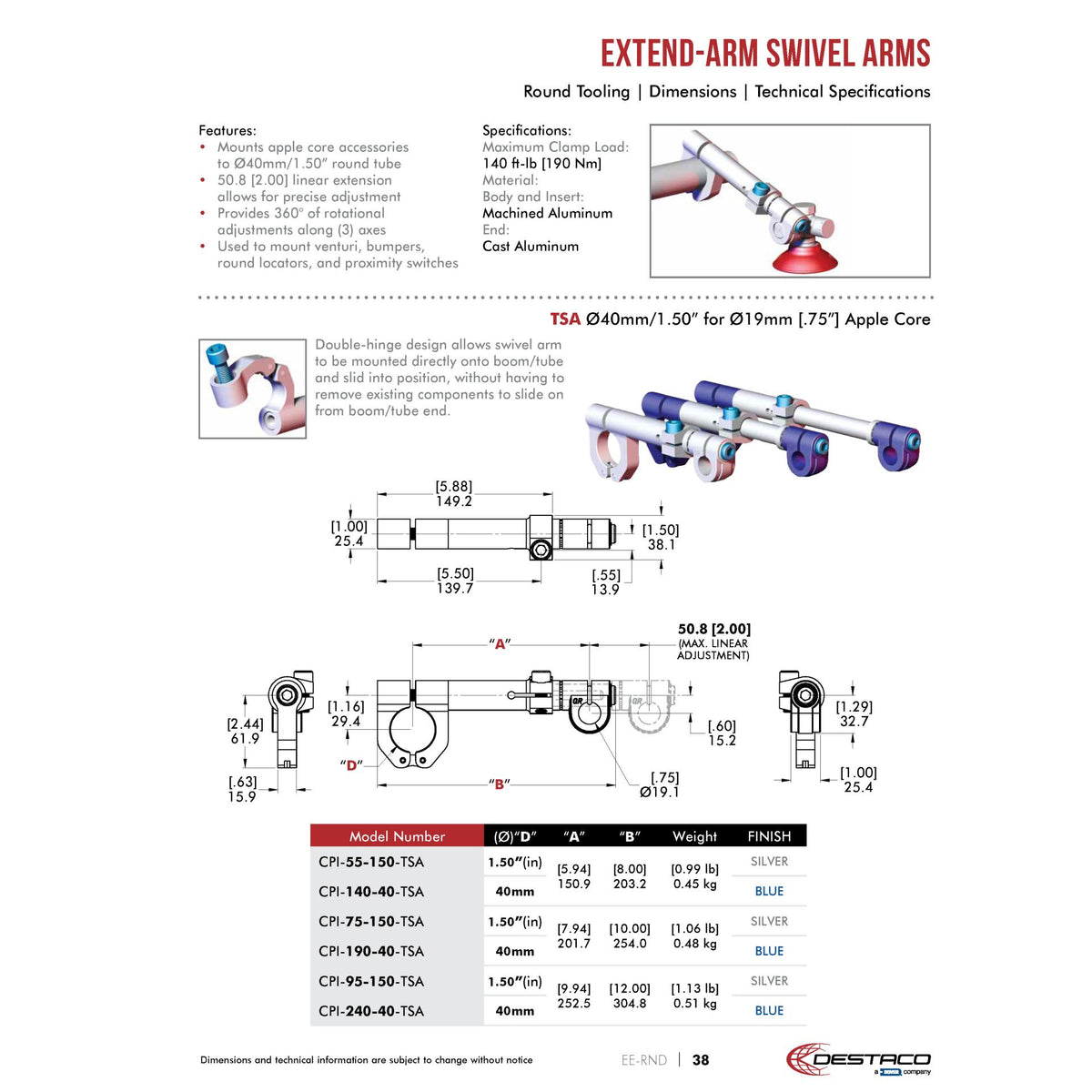

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

  • Mounts 19.1 mm (0.75") apple core accessories to 40 mm round tube
  • 50.8 mm linear extension allows for precise adjustment
  • Provides 360° of rotational adjustments along (3) axes
  • Used to mount venturi, bumpers, round locators, and proximity switches
Apple Core (mm) 19.0
Apple Core (in) 0.750
Tube Diameter (mm) 41
Tube Diameter (in) 1.61
Length (mm) 201.7
Length (in) 7.940
Material Aluminum
Finish Blue
Maximum Static Clamp Load (Nm) 190
Maximum Static Clamp Load (ft lb) 140
Product Type Swivel Arm, "Extend Arm"
Tube Size 41 mm
Weight (kg) 0.48
Weight (lb) 1.06
Product Series Description Swivel Arm
Product Function Robotic Tooling
Product Family End Effectors
Product Group round tooling
Apple Core Size 19
