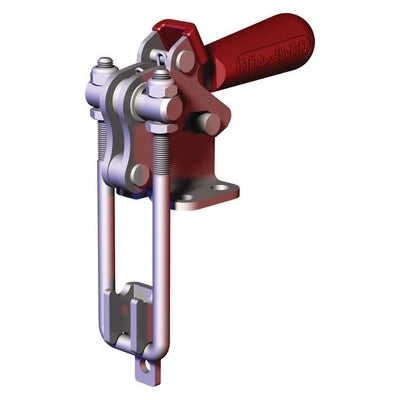

DESTACO 334-RSS ONE HANDED PULL ACTION LATCH CLAMP

Brand: DESTACO

DESTACO 334-RSS ONE HANDED PULL ACTION LATCH CLAMP

SKU: DE-STA-CO-334-RSS
MPN: 334-RSS

  • $63.28
    Unit price per
  • Save $9.36
Shipping calculated at checkout.

Only 0 left!
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

DESTACO 334-RSS ONE HANDED PULL ACTION LATCH CLAMP
*In-stock Destaco products will be shipped within 3 business days. Otherwise average lead times are 2-4 weeks*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 334-RSS ONE-HANDED PULL ACTION LATCH CLAMP

The clamp is mounted perpendicular to the latch surface. Ideal for latching applications on molds, doors, lids, access covers, drums, containers, vessels

  • Supplied with threaded U-hooks for easy adjustment
  • Latch plate included
  • With Toggle Lock Plus
  • Patented Thumb Control Lever provides one-handed operation
  • Optional hook lengths available
Maximum Holding Capacity (lbsf) 1,000
Drawing Movement (in) 2.040
Max Hook Adjustment (in) 0.860
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 31:1
Available Yes
Standard Material Stainless Steel
Toggle Lock Plus Yes
Base Mounting Style Flange
Hook Type U-Hook (Vertical)
Latch Plate 334101
Latch Plate Supplied? Yes
Replacement Hook Assembly 334915
Product Type Standard
Weight (lb) 0.60
Product Series Description Pull Action Latch Clamp
Product Function Clamping
Product Family Manual Clamping
Product Group Pull-action Latch Clamps
