Brand: Northwestern Tools

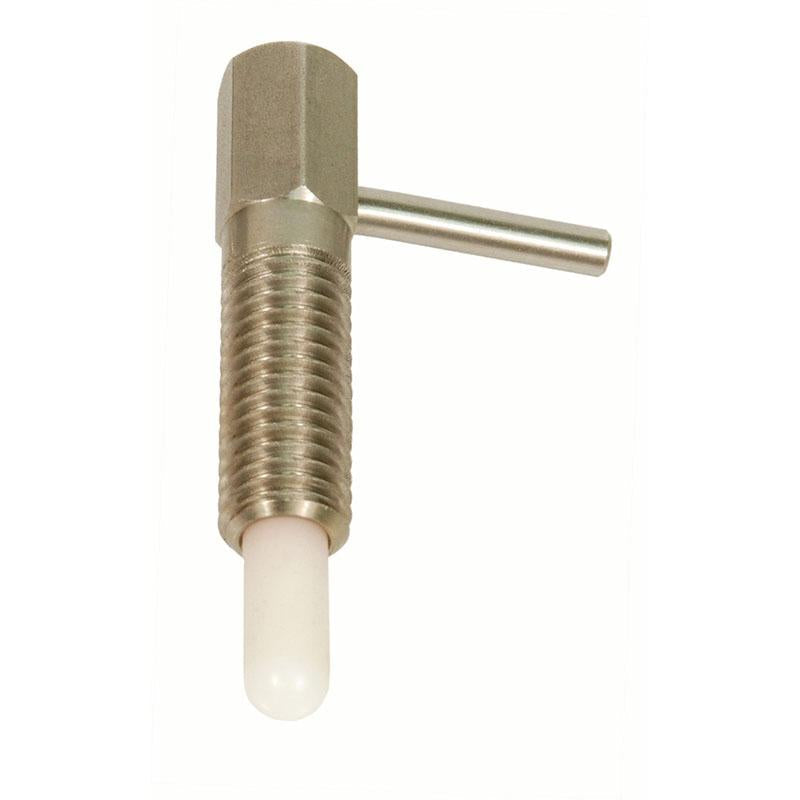

NORTHWESTERN TOOLS 33652 Hand Retractable Plungers - Long Reach - Standard - Locking - Radiused Delrin Nose - Steel, End Force: 1.0 Initial x 5.0 Full
SKU: NW-33652
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $200 minimum for all Northwestern Tools product orders*
Short Description
NORTHWESTERN TOOLS 33652 Hand Retractable Plungers - Long Reach - Standard - Locking - Radiused Delrin Nose - Steel, End Force: 1.0 Initial x 5.0 FullNorthwestern Part Number: 33652
Carr Lane equivalent: N/A
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
**Please note, this item is nonrefundable.**
Full Description
NORTHWESTERN TOOLS 33652 Hand Retractable Plungers - Long Reach - Standard - Locking - Radiused Delrin Nose - Steel, End Force: 1.0 Initial x 5.0 Full
Hand Retractable Plungers - Long Reach - Standard - Locking - Radiused Delrin Nose - Steel, End Force: 1.0 Initial x 5.0 Full
Northwestern Part Number: 33652
Carr Lane equivalent: N/A
Product Information Steel or Stainless Steel Long Reach, Standard Length, Locking Plungers with Radiused Delrin NoseSteel parts are 12L14 material, zinc plated and heat treated. All 90 degree handles are 303 stainless steel. All stainless steel parts are 303 material. The nylon locking element holds the plunger body securely in place without the need for lock nuts or other devices. We recommend a 90 degree countersink 1/32" larger than the major diameter of the mating thread to prevent damaging the element. Used in machining applications as positioners, loading pins, indexing devices. Available with or without locking element. |
| Steel or Stainless Steel Long Reach, Standard Length, Locking Plungers with Radiused Delrin Nose | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Steel Part No. |
Stainless Steel Part No. |
End Pressure Pounds Start |
End Pressure Pounds Full |
A | B | C | D | E | F | G | H | J | Net Lbs. Per 100 | |
| 33649 | 33657 | 0.5 | 2.5 | 1/4-20 | .156 | 3/8 | 5/8 | 1-1/4 | 1/4 | 5/8 | 3/32 | 1/2 | 1-1/2 | |
| 33650 | 33658 | 0.75 | 3.0 | 5/16-18 | .186 | 1/2 | 7/8 | 1-5/8 | 5/16 | 3/4 | 7/64 | 9/16 | 3 | |
| 33651 | 33659 | 0.75 | 3.75 | 3/8-16 | .250 | 9/16 | 1-1/16 | 2" | 3/8 | 15/16 | 9/64 | 11/16 | 5-1/4 | |
| 33652 | 33660 | 1.0 | 5.0 | 1/2-13 | .312 | 3/4 | 1-1/8 | 2-1/8 | 1/2 | 1-1/4 | 3/16 | 3/4 | 10-1/4 | |
| 33653 | 33661 | 1.0 | 5.0 | 5/8-11 | .375 | 1" | 1-3/4 | 3" | 5/8 | 1-5/16 | 3/16 | 1-1/16 | 22-1/4 | |
