NAAMS Shims and Spacers
NAAMS shims are a great way to fill small gaps or spaces in your automation process. These are metric fitting shims in compliance with the North American Automotive Metric Standards. They come with a slot design to fit tight areas between two objects or workpieces. The thickness offerings are of 0.25mm, 0.50mm, 1.00mm, and 2.00mm. All 0.50mm shims come with a yellow zinc dichromate coating and 1.00mm shims have a black oxide coating. 0.25mm and 2.0mm shims have no coating and are to be distinguished by their overall thickness. Shims are also able to support and provide a better fit, it can also be used with spacers to fill in gaps between parts when needed. Custom shims are available for order. Contact Sales@freertool.com or 586-463-3200 for a quote.

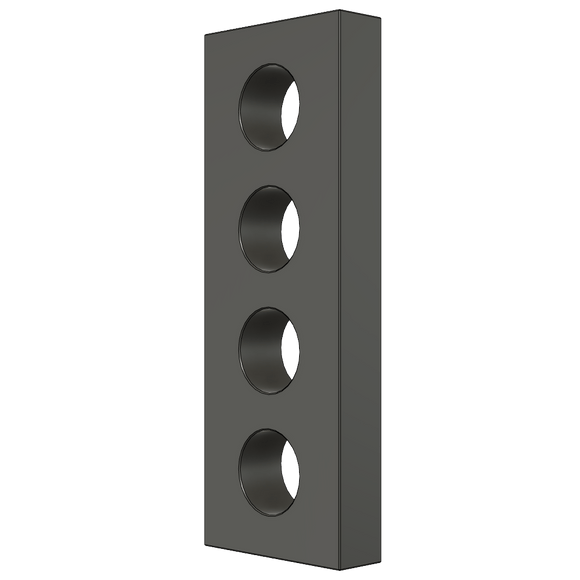

NAAMS spacers also help fill in the bigger areas where a shim just isn't enough. These are metric spacers with assorted hole configurations. Series 200, 300, 400, and 500 have adjacent holes. The number of holes is referenced by the series number. Series 300 comes with three holes, series 400 has four holes, and series 500 has 5 holes. Series 600 has six holes with three parallel holes running adjacent to three other holes on the opposite side of the spacer. Narrow shims are 20mm in width and are offered in series 300, 400, and 500. Slotted shims are offered in series 300, 400, 500, and 600 with a 20mm width also. Custom spacers are available for order. Contact Sales@freertool.com or 586-463-3200 for a quote.
Aside from the standard series, our NAAMS spacer offerings also include a 3-slot construction spacer, mounting spacers, and shock bracket spacers. You can browse all of our NAAMS shims and spacers or see the full catalogs below.
At Freer Tool & Supply, we're able to offer both NAAMS shims and spacers at a great value without compromising quality with ISO 9001:2015 compliance.
Full catalogs can be found by following the links below.
NAAMS Shims
NAAMS Spacers
Complete NAAMS Catalog

NAAMS Shims 2-Slot ASH6-KIT 7-Piece
SKU: FN-ASH6-KIT
MPN: ASH6-KIT

NAAMS Shims 5-Slot ASH5-KIT 7-Piece
SKU: FN-ASH5-KIT
MPN: ASH5-KIT

NAAMS Shims ACH602
SKU: FN-ACH602
MPN: ACH602

NAAMS Shims ACH605
SKU: FN-ACH605
MPN: ACH605

NAAMS Shims ACH610
SKU: FN-ACH610
MPN: ACH610

NAAMS Shims ACH620
SKU: FN-ACH620
MPN: ACH620

NAAMS Shims ASH102
SKU: FN-ASH102
MPN: ASH102

NAAMS Shims ASH102N
SKU: FN-ASH102N
MPN: ASH102N

NAAMS Shims ASH105
SKU: FN-ASH105
MPN: ASH105

NAAMS Shims ASH105N
SKU: FN-ASH105N
MPN: ASH105N

NAAMS Shims ASH110
SKU: FN-ASH110
MPN: ASH110

NAAMS Shims ASH110N
SKU: FN-ASH110N
MPN: ASH110N

NAAMS Shims ASH120
SKU: FN-ASH120
MPN: ASH120
