Brand: Northwestern Tools

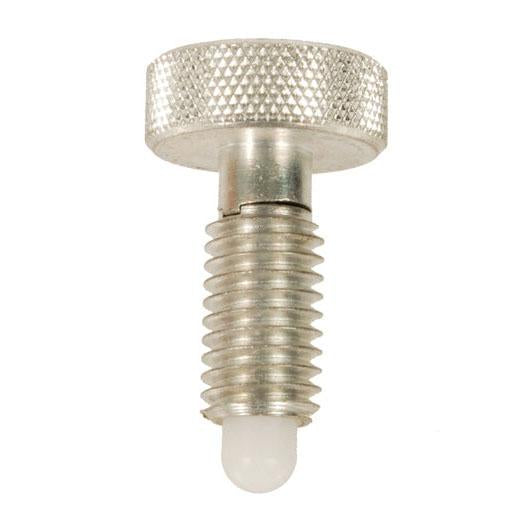

NORTHWESTERN TOOLS 34231 Hand Retractable Plungers - Knurled Head Plungers - Non-Locking Radiused Delrin Nose - Steel - Light Pressure, End Force: 1.25 Initial x 5.0 Full
SKU: NW-34231
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $200 minimum for all Northwestern Tools product orders*
Short Description
NORTHWESTERN TOOLS 34231 Hand Retractable Plungers - Knurled Head Plungers - Non-Locking Radiused Delrin Nose - Steel - Light Pressure, End Force: 1.25 Initial x 5.0 FullNorthwestern Part Number: 34231
Carr Lane equivalent: N/A
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
**Please note, this item is nonrefundable.**
Full Description
NORTHWESTERN TOOLS 34231 Hand Retractable Plungers - Knurled Head Plungers - Non-Locking Radiused Delrin Nose - Steel - Light Pressure, End Force: 1.25 Initial x 5.0 Full
Hand Retractable Plungers - Knurled Head Plungers - Non-Locking Radiused Delrin Nose - Steel - Light Pressure, End Force: 1.25 Initial x 5.0 Full
Northwestern Part Number: 34231
Carr Lane equivalent: N/A
Product Information Steel or Stainless Steel Knurled Head Plungers - Non-Locking with Radiused Delrin NoseZinc Plated Steel or Stainless Steel Steel parts are 12L14 material Noses are 11L41, heat treated. All stainless steel parts are 303 material. The nylon locking element holds the plunger body securely in place without the need for lock nuts or other devices. We recommend a 90 degree countersink 1/32" larger than the major diameter of the mating thread to prevent damaging the element. Available with or without locking element To order without locking element, add a "P" to the end of the part number. |
| Steel or Stainless Steel Knurled Head Plungers - Non-Locking with Radiused Delrin Nose | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Heavy Pressure | ||||||||||
| Steel Part No. |
Stainless Steel Part No. | End Pressures Lbs. Start |
End Pressures Lbs. Full |
A | B | C | D | E | F | Net Lbs. Per 100 |
| 34220 | 34220-SS | 1.0 | 5.0 | 1/4-20 | 1/2 | 1/8 | .144 | 1/4 | 1/2 | 3 |
| 34221 | 34221-SS | 1.5 | 6.0 | 5/16-18 | 5/8 | 3/16 | .179 | 9/32 | 5/8 | 5 |
| 34222 | 34222-SS | 1.5 | 8.0 | 3/8-16 | 3/4 | 7/32 | .216 | 5/16 | 3/4 | 7 |
| 34223 | 34223-SS | 2.5 | 10.0 | 1/2-13 | 7/8 | 1/4 | .310 | 3/8 | 1" | 13 |
| 34224 | 34224-SS | 5.0 | 10.0 | 5/8-11 | 1" | 5/16 | .373 | 13/32 | 1-1/8 | 20 |
| Light Pressure | ||||||||||
| 34228 | 34228-SS | 0.5 | 2.5 | 1/4-20 | 1/2 | 1/8 | .144 | 1/4 | 1/2 | 3 |
| 34229 | 34229-SS | 0.75 | 3.0 | 5/16-18 | 5/8 | 3/16 | .179 | 9/32 | 5/8 | 5 |
| 34230 | 34230-SS | 0.75 | 4.0 | 3/8-16 | 3/4 | 7/32 | .216 | 5/16 | 3/4 | 7 |
| 34231 | 34231-SS | 1.25 | 5.0 | 1/2-13 | 7/8 | 1/4 | .310 | 3/8 | 1" | 13 |
| 34232 | 34232-SS | 3.0 | 6.0 | 5/8-11 | 1" | 5/16 | .373 | 13/32 | 1-1/8 | 20 |
**Please note, this item is nonrefundable.**
