Brand: Northwestern Tools

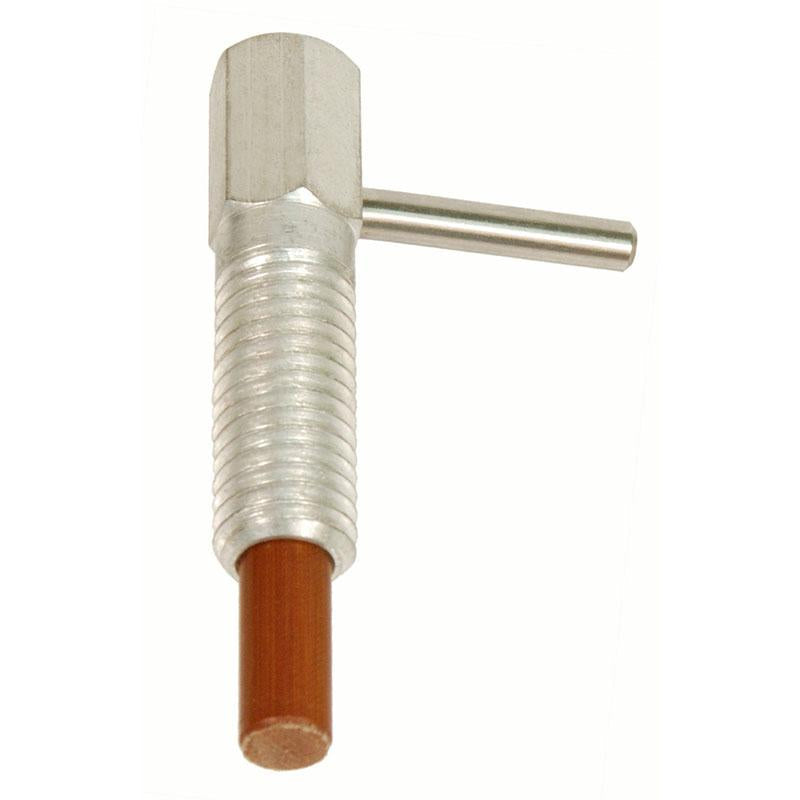

NORTHWESTERN TOOLS 33948 Hand Retractable Plungers - Long Reach - Short - Locking Plungers - Phenolic Nose - Steel
SKU: NW-33948
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $200 minimum for all Northwestern Tools product orders*
Short Description
NORTHWESTERN TOOLS 33948 Hand Retractable Plungers - Long Reach - Short - Locking Plungers - Phenolic Nose - SteelNorthwestern Part Number: 33948
Carr Lane equivalent: N/A
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
**Please note, this item is nonrefundable.**
Full Description
NORTHWESTERN TOOLS 33948 Hand Retractable Plungers - Long Reach - Short - Locking Plungers - Phenolic Nose - Steel
Hand Retractable Plungers - Long Reach - Short - Locking Plungers - Phenolic Nose - Steel
Northwestern Part Number: 33948
Carr Lane equivalent: N/A
Product Information Steel, Stainless Steel, or Phenolic Nose Long Reach - Short Length - Locking PlungersSteel parts are 12L14 zinc plated material, noses are zinc plated 11L41 heat treated. All 90 degree handles are 303 stainless steel. All stainless steel parts are 303 material. The nylon locking element holds the plunger body securely in place without the need for lock nuts or other devices. We recommend a 90 degree countersink 1/32" larger than the major diameter of the mating thread to prevent damaging the element. Used in machining applications as positioners, loading pins, indexing devices. Available with or without locking element. |
| Long Reach - Short Length - Locking Plungers with Steel, Stainless Steel | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Steel Part No. |
Stainless Steel Part No. |
End Pressure Pounds Start |
End Pressure Pounds Full |
A | B | C | D | E | F | G | H | J | Net Lbs. Per 100 |
| 33922 | 33932 | .125 | 0.50 | 1/4-20 | .156 | 3/16 | 7/16 | 3/4 | 1/4 | 9/16 | 3/32 | 1/4 | 1 |
| 33924 | 33934 | .25 | 1.25 | 3/8-16 | .250 | 5/16 | 5/8 | 1-1/8 | 3/8 | 3/4 | 9/64 | 3/8 | 3 |
| 33926 | 33936 | .50 | 2.0 | 1/2-13 | .312 | 13/32 | 7/8 | 1-1/2 | 1/2 | 1" | 3/16 | 1/2 | 7 |
| 33928 | 33938 | .75 | 2.5 | 5/8-11 | .375 | 1/2 | 1-1/8 | 1-7/8 | 5/8 | 1-3/16 | 3/16 | 5/8 | 13-1/2 |
| Phenolic Nose | |||||||||||||
| Steel Part No. |
Stainless Steel Part No. |
End Pressure Pounds Start |
End Pressure Pounds Full |
A | +.001 -.002 B |
C | D | E | F | G | H | J | Net Lbs. Per 100 |
| 33942 | 33952 | .125 | 0.50 | 1/4-20 | .156 | 3/16 | 7/16 | 3/4 | 1/4 | 9/16 | 3/32 | 1/4 | 1 |
| 33944 | 33954 | .25 | 1.25 | 3/8-16 | .250 | 5/16 | 5/8 | 1-1/8 | 3/8 | 3/4 | 9/64 | 3/8 | 3 |
| 33946 | 33956 | .50 | 2.0 | 1/2-13 | .312 | 13/32 | 7/8 | 1-1/2 | 1/2 | 1" | 3/16 | 1/2 | 7 |
| 33948 | 33958 | .75 | 2.5 | 5/8-11 | .375 | 1/2 | 1-1/8 | 1-7/8 | 5/8 | 1-3/16 | 3/16 | 5/8 | 13-1/2 |
