Brand: Northwestern Tools

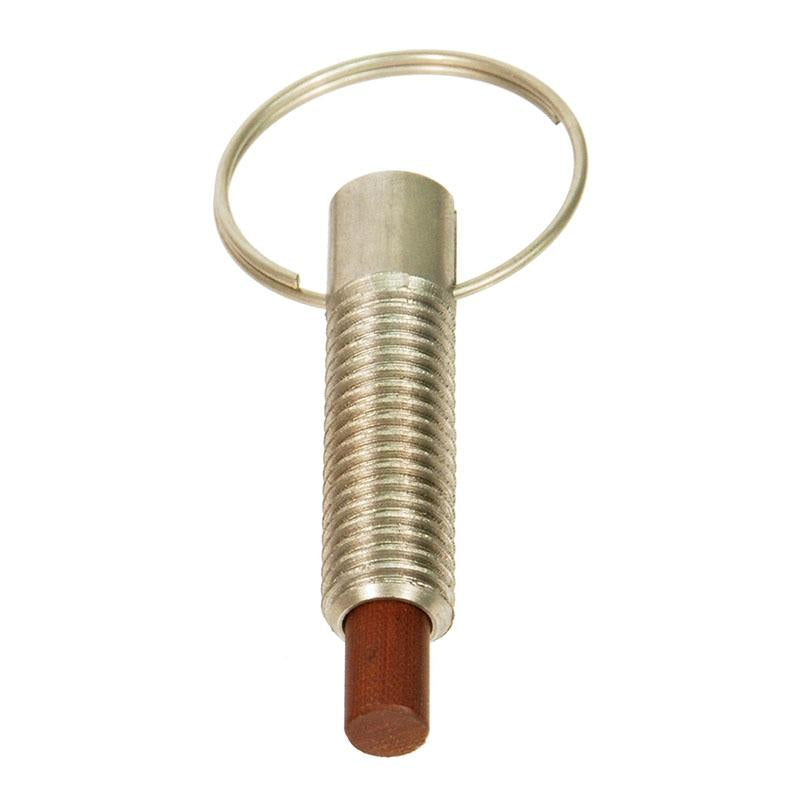

NORTHWESTERN TOOLS 33786 Hand Retractable Plungers - Pull Ring - Standard Length - Locking Plungers - Phenolic Nose - Steel
SKU: NW-33786
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $200 minimum for all Northwestern Tools product orders*
Short Description
NORTHWESTERN TOOLS 33786 Hand Retractable Plungers - Pull Ring - Standard Length - Locking Plungers - Phenolic Nose - SteelNorthwestern Part Number: 33786
Carr Lane equivalent: N/A
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
**Please note, this item is nonrefundable.**
Full Description
NORTHWESTERN TOOLS 33786 Hand Retractable Plungers - Pull Ring - Standard Length - Locking Plungers - Phenolic Nose - Steel
Hand Retractable Plungers - Pull Ring - Standard Length - Locking Plungers - Phenolic Nose - Steel
Northwestern Part Number: 33786
Carr Lane equivalent: N/A
Product Information Steel or Stainless Steel Pull Ring - Standard Length - Locking PlungersSteel bodies are 12L14 material zinc plated. Noses are 11L41 material zinc plated and heat treated. All stainless steel parts are 303 material. The nylon locking element holds the plunger body securely in place without the need for lock nuts or other devices. We recommend a 90 degree countersink 1/32" larger than the major diameter of the mating thread to prevent damaging the element. Used in machining applications as positioners, loading pins, indexing devices. Available with or without locking element. |
| Steel or Stainless Steel Pull Ring - Standard Length - Locking Plungers | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Steel Part No. |
Stainless Steel Part No. |
End Pressure Pounds Start |
End Pressure Pounds Full |
A | B | C | D | E | F | G | Net Lbs. Per 100 | ||
| 33762 | 33772 | 1.0 | 2.5 | 1/4-20 | 1" | 1/4 | 13/16 | 5/16 | .156 | 1-1/8 | 1-1/2 | ||
| 33764 | 33774 | 2.0 | 4.0 | 3/8-16 | 1-1/4 | 3/8 | 1-1/4 | 7/16 | .250 | 1-11/16 | 4-14 | ||
| 33766 | 33776 | 2.5 | 5.0 | 1/2-13 | 1-3/8 | 1/2 | 1-7/16 | 9/16 | .312 | 2" | 9 | Phenolic Nose | |
| 33782 | 33792 | 1.0 | 2.5 | 1/4-20 | 1" | 1/4 | 13/16 | 5/16 | .156 | 1-1/8 | 1-1/2 | ||
| 33784 | 33794 | 2.0 | 4.0 | 3/8-16 | 1-1/4 | 3/8 | 1-1/4 | 7/16 | .250 | 1-11/16 | 4-14 | ||
| 33786 | 33796 | 2.5 | 5.0 | 1/2-13 | 1-3/8 | 1/2 | 1-7/16 | 9/16 | .312 | 2" | 9 | ||
