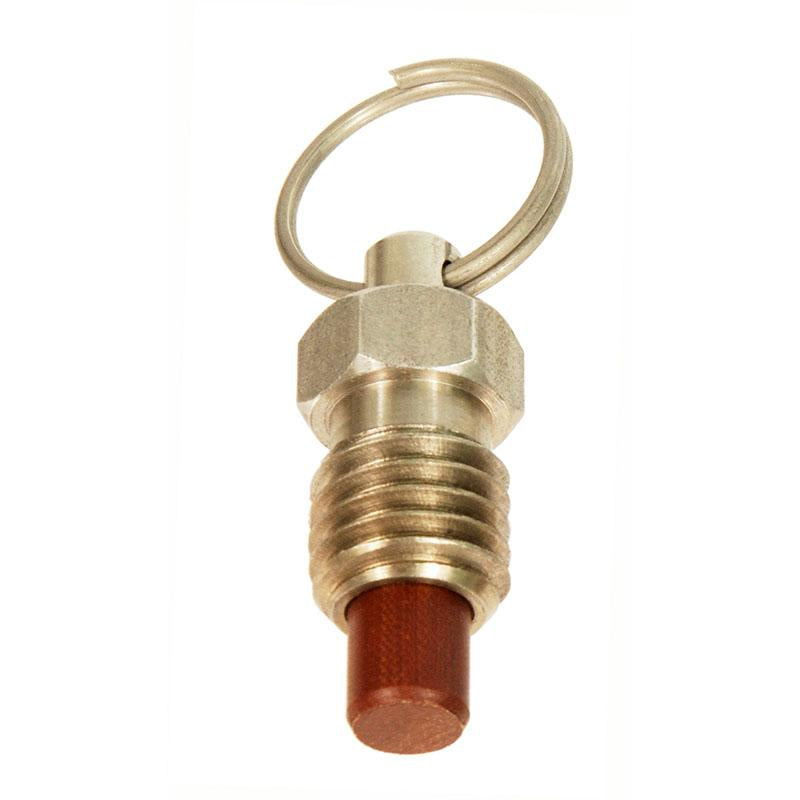

NORTHWESTERN TOOLS 33726 Hand Retractable Plungers - Pull Ring - Short - Non-Locking Plungers - Phenolic Nose - Steel
SKU: NW-33726
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $200 minimum for all Northwestern Tools product orders*
Short Description
NORTHWESTERN TOOLS 33726 Hand Retractable Plungers - Pull Ring - Short - Non-Locking Plungers - Phenolic Nose - SteelNorthwestern Part Number: 33726
Carr Lane equivalent: N/A
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
**Please note, this item is nonrefundable.**
Full Description
NORTHWESTERN TOOLS 33726 Hand Retractable Plungers - Pull Ring - Short - Non-Locking Plungers - Phenolic Nose - Steel
Hand Retractable Plungers - Pull Ring - Short - Non-Locking Plungers - Phenolic Nose - Steel
Northwestern Part Number: 33726
Carr Lane equivalent: N/A
Product Information Steel or Stainless Steel Short Pull Ring Non Locking PlungersDesigned to function where space is limited. Easy to grasp ring allows you to hold the plunger back while changing work piece. Plunger nose has a chamfered end to assure easy alignment. Steel parts are zinc plated 12L14 material. Noses are 11L41 zinc plated material. All stainless steel is 303 material. End pressures are given in pounds. Full pressures are the force pounds needed to move the nose the distance shown in "C" column. The nylon locking element holds the plunger body securely in place without the need for lock nuts or other devices. We recommend a 90 degree countersink 1/32" larger than the major diameter of the mating thread to prevent damaging the element. Used in machining applications as positioners, loading pins, indexing devices. Available with or without locking element. |
| Steel or Stainless Steel Short Pull Ring Non Locking Plungers | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Steel Part No. |
Stainless Steel Part No. |
End Pressure Pounds Start |
End Pressure Pounds Full |
A | B | C | D | E | F | G | H | Ring O.D. |
Net Lbs. Per 100 |
| 33702 | 33712 | .50 | 2.0 | 1/4-20 | 7/16 | 3/16 | .156 | 1/4 | 1/32 | 5/32 | 9/32 | 3/4 | 1 |
| 33703 | 33713 | .75 | 2.75 | 5/16-18 | 17/32 | 1/4 | .186 | 5/16 | 3/32 | 3/16 | 23/64 | 3/4 | 1.5 |
| 33704 | 33714 | .75 | 3.0 | 3/8-16 | 5/8 | 9/32 | .250 | 3/8 | 1/8 | 3/16 | 7/16 | 3/4 | 2 |
| 33706 | 33716 | 1.0 | 4.0 | 1/2-13 | 13/16 | 3/8 | .312 | 1/2 | 5/32 | 1/4 | 9/16 | 1" | 4-1/4 |
| 33708 | 33718 | 1.25 | 5.0 | 5/8-11 | 1" | 7/16 | .375 | 5/8 | 5/32 | 5/16 | 11/16 | 1" | 8 |
| Phenolic Nose | |||||||||||||
| Steel Part No. |
Stainless Steel Part No. |
End Pressure Pounds Start |
End Pressure Pounds Full |
A | B | C | +.001 -.002 D |
E | F | G | H | Ring O.D. |
Net Lbs. Per 100 |
| 33722 | 33732 | .50 | 2.0 | 1/4-20 | 7/16 | 3/16 | .156 | 1/4 | 1/32 | 5/32 | 9/32 | 3/4 | 1 |
| 33724 | 33734 | .75 | 3.0 | 3/8-16 | 5/8 | 9/32 | .250 | 3/8 | 1/8 | 3/16 | 7/16 | 3/4 | 2 |
| 33726 | 33736 | 1.0 | 4.0 | 1/2-13 | 13/16 | 3/8 | .312 | 1/2 | 5/32 | 1/4 | 9/16 | 1" | 4-1/4 |
| 33728 | 33738 | 1.25 | 5.0 | 5/8-11 | 1" | 7/16 | .375 | 5/8 | 5/32 | 5/16 | 11/16 | 1" | 8 |
