Brand: Northwestern Tools

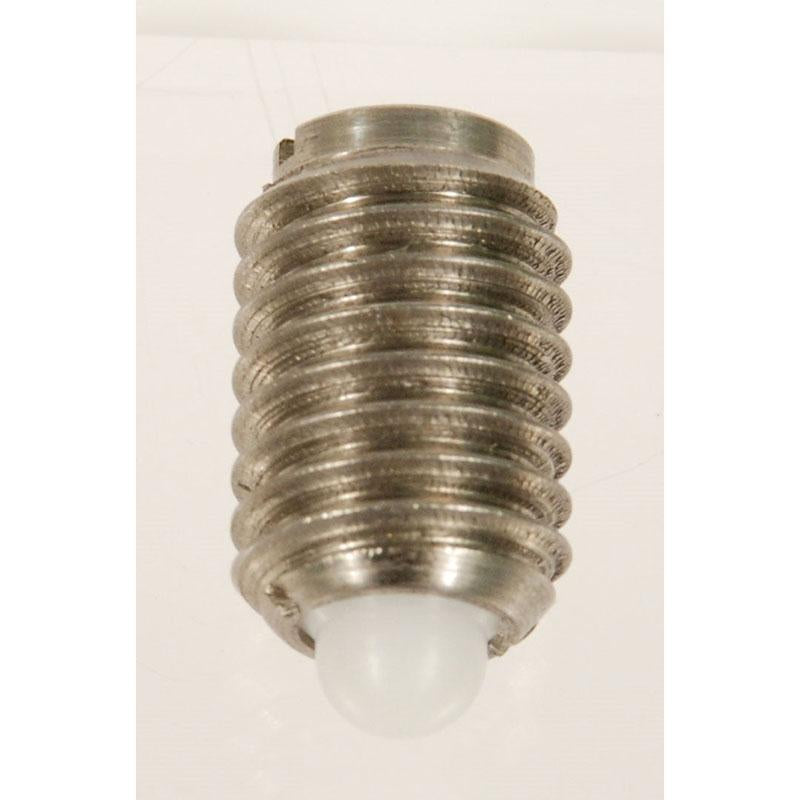

NORTHWESTERN TOOLS 33562 Stainless Steel Plungers - Short Lengths - Light Pressures - With Lock. Element - White Delrin Nose, End Force: 0.75 Initial x 1.62 Half x 2.5 Full
SKU: NW-33562
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $200 minimum for all Northwestern Tools product orders*
Short Description
NORTHWESTERN TOOLS 33562 Stainless Steel Plungers - Short Lengths - Light Pressures - With Lock. Element - White Delrin Nose, End Force: 0.75 Initial x 1.62 Half x 2.5 FullNorthwestern Part Number: 33562
Carr Lane equivalent: CL-31N/ASSPNN/A2
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
**Please note, this item is nonrefundable.**
Full Description
NORTHWESTERN TOOLS 33562 Stainless Steel Plungers - Short Lengths - Light Pressures - With Lock. Element - White Delrin Nose, End Force: 0.75 Initial x 1.62 Half x 2.5 Full
Stainless Steel Plungers - Short Lengths - Light Pressures - With Lock. Element - White Delrin Nose, End Force: 0.75 Initial x 1.62 Half x 2.5 Full
Northwestern Part Number: 33562
Carr Lane equivalent: CL-31N/ASSPNN/A2
Product Information Stainless Steel Short Lengths with Light Spring PressuresAll stainless steel parts are made of 303 material. The nylon locking element holds the plunger body securely in place without the need for lock nuts or other devices. We recommend a 90 degree countersink 1/32" larger than the major diameter of the mating thread to prevent damaging the element. To prevent possible spring damage, use of a Northwestern Wrench is recommended when installing from plunger end. |
| Short Lengths (With Light Spring Pressures) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Stainless Nose | ||||||||||
| With Lock Ele. Part No. |
Without Lock Ele. Part No. |
Color Code | End Pressures Lbs. Start | End Pressures Lbs. 1/2 |
End Pressures Lbs. Full |
A | B | C | D | Net Lbs. Per 100 |
| 33520 | 33520P | Plain | 0.5 | 1.0 | 1.5 | #8-32 | 7/16 | .052 | .070 | 1/2 |
| 33521 | 33521P | Plain | 0.5 | 1.0 | 1.5 | #8-36 | 7/16 | .052 | .070 | 1/2 |
| 33522 | 33522P | Plain | 0.75 | 1.62 | 2.5 | #10-32 | 15/32 | .065 | .093 | 1/2 |
| 33523 | 33523P | Plain | 1.0 | 2.25 | 3.5 | 1/4-20 | 17/32 | .078 | .119 | 1/2 |
| 33524 | 33524P | Plain | 1.5 | 2.75 | 4.0 | 5/16-18 | 9/16 | .084 | .135 | 1 |
| 33525 | 33525P | Plain | 1.5 | 3.25 | 5.0 | 3/8-16 | 5/8 | .110 | .186 | 2 |
| 33526 | 33526P | Plain | 1.75 | 3.62 | 5.5 | 1/2-13 | 3/4 | .151 | .248 | 3 |
| White Delrin Nose | ||||||||||
| 33560 | 33560P | Plain | 0.5 | 1.0 | 1.5 | #8-32 | 7/16 | .052 | .070 | 1/2 |
| 33561 | 33561P | Plain | 0.5 | 1.0 | 1.5 | #8-36 | 7/16 | .052 | .070 | 1/2 |
| 33562 | 33562P | Plain | 0.75 | 1.62 | 2.5 | #10-32 | 15/32 | .065 | .093 | 1/2 |
| 33563 | 33563P | Plain | 1.0 | 2.25 | 3.5 | 1/4-20 | 17/32 | .078 | .119 | 1/2 |
| 33564 | 33564P | Plain | 1.5 | 2.75 | 4.0 | 5/16-18 | 9/16 | .084 | .135 | 1 |
| 33565 | 33565P | Plain | 1.5 | 3.25 | 5.0 | 3/8-16 | 5/8 | .110 | .186 | 2 |
| 33566 | 33566P | Plain | 1.75 | 3.62 | 5.5 | 1/2-13 | 3/4 | .151 | .248 | 3 |
All parts conform to TCMAI Standards
Standard lengths available with Phenolic noses upon request.
