*NORTHWESTERN PRICES ARE SUBJECT TO CHANGE AT ANY TIME, PLEASE CALL/EMAIL SALES BEFORE PLACING YOUR ORDER TO VERIFY THE PRICE SHOWN. IF YOU PLACE THE ORDER WITHOUT VERIFICATION AND WANT TO CANCEL, YOU WILL BE CHARGED A 4% PROCESSING FEE, THIS IS NON REFUNDABLE.*
Brand: Northwestern Tools

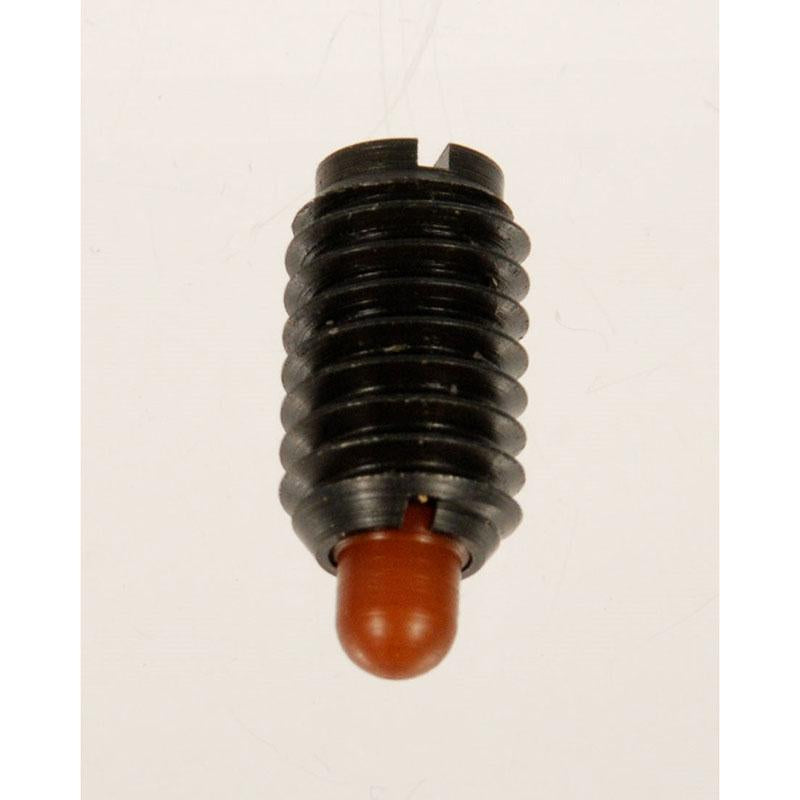

NORTHWESTERN TOOLS 33036 Short Spring Plungers with Extended Travel - Steel Body- With Lock. Element - Brown Delrin Nose, End Force: 1.0 Initial x 3.25 Full
SKU: NW-33036
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $200 minimum for all Northwestern Tools product orders*
Short Description
NORTHWESTERN TOOLS 33036 Short Spring Plungers with Extended Travel - Steel Body- With Lock. Element - Brown Delrin Nose, End Force: 1.0 Initial x 3.25 FullNorthwestern Part Number: 33036
Carr Lane equivalent: N/A
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
**Please note, this item is nonrefundable.**
Full Description
NORTHWESTERN TOOLS 33036 Short Spring Plungers with Extended Travel - Steel Body- With Lock. Element - Brown Delrin Nose, End Force: 1.0 Initial x 3.25 Full
Short Spring Plungers with Extended Travel - Steel Body- With Lock. Element - Brown Delrin Nose, End Force: 1.0 Initial x 3.25 Full
Northwestern Part Number: 33036
Carr Lane equivalent: N/A
Product Information Steel Body Short Spring Plungers with Extended TravelBodies are 12L14 steel with a black oxide finish. Noses are 12L14 black oxide steel or brown delrin. The nylon locking element holds the plunger body securely in place without the need for lock nuts or other devices. We recommend a 90 degree countersink 1/32" larger than the major diameter of the mating thread to prevent damaging the element. To prevent possible spring damage, use of a Northwestern Wrench is recommended when installing from plunger end. |
| Steel Body Short Spring Plungers with Extended Travel | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Heat Treated Black Oxide Steel Nose | ||||||||||
| With Lock Ele. Part No. |
Without Lock Ele. Part No. | End Pressures Lbs. Start | End Pressures Lbs. Full |
A | B | C | D | Net Lbs. Per 100 | ||
| 33135 | 33135P | 1.0 | 3.25 | #8-32 | 7/16 | .093 | .070 | 1/2 | ||
| 33136 | 33136P | 1.0 | 3.25 | #8-36 | 7/16 | .093 | .070 | 1/2 | ||
| 33137 | 33137P | 1.25 | 4.25 | #10-32 | 15/32 | .125 | .093 | 1/2 | ||
| 33138 | 33138P | 2.0 | 7.0 | 1/4-20 | 17/32 | .187 | .119 | 1/2 | ||
| 33139 | 33139P | 2.0 | 9.0 | 5/16-18 | 9/16 | .187 | .135 | 1 | ||
| 33140 | 33140P | 3.0 | 12.5 | 3/8-16 | 5/8 | .187 | .186 | 2 | ||
| 33141 | 33141P | 3.5 | 19.0 | 1/2-13 | 3/4 | .250 | .248 | 3 | ||
| 33142 | 33142P | 4.5 | 33.5 | 5/8-11 | 1-1/16 | .312 | .310 | 6 | ||
| Brown Delrin Nose | ||||||||||
| 33035 | 33035P | 1.0 | 3.25 | #8-32 | 7/16 | .093 | .070 | 1/2 | ||
| 33036 | 33036P | 1.0 | 3.25 | #8-36 | 7/16 | .093 | .070 | 1/2 | ||
| 33037 | 33037P | 1.25 | 4.25 | #10-32 | 15/32 | .125 | .093 | 1/2 | ||
| 33038 | 33038P | 2.0 | 7.0 | 1/4-20 | 17/32 | .187 | .119 | 1/2 | ||
| 33039 | 33039P | 2.0 | 9.0 | 5/16-18 | 9/16 | .187 | .135 | 1 | ||
| 33040 | 33040P | 3.0 | 12.5 | 3/8-16 | 5/8 | .187 | .186 | 1 | ||
| 33041 | 33041P | 3.5 | 19.0 | 1/2-13 | 3/4 | .250 | .248 | 2 | ||
| 33042 | 33042P | 4.5 | 33.5 | 5/8-11 | 1-1/16 | .312 | .310 | 5 | ||
