*NORTHWESTERN PRICES ARE SUBJECT TO CHANGE AT ANY TIME, PLEASE CALL/EMAIL SALES BEFORE PLACING YOUR ORDER TO VERIFY THE PRICE SHOWN. IF YOU PLACE THE ORDER WITHOUT VERIFICATION AND WANT TO CANCEL, YOU WILL BE CHARGED A 4% PROCESSING FEE, THIS IS NON REFUNDABLE.*
Brand: Northwestern Tools

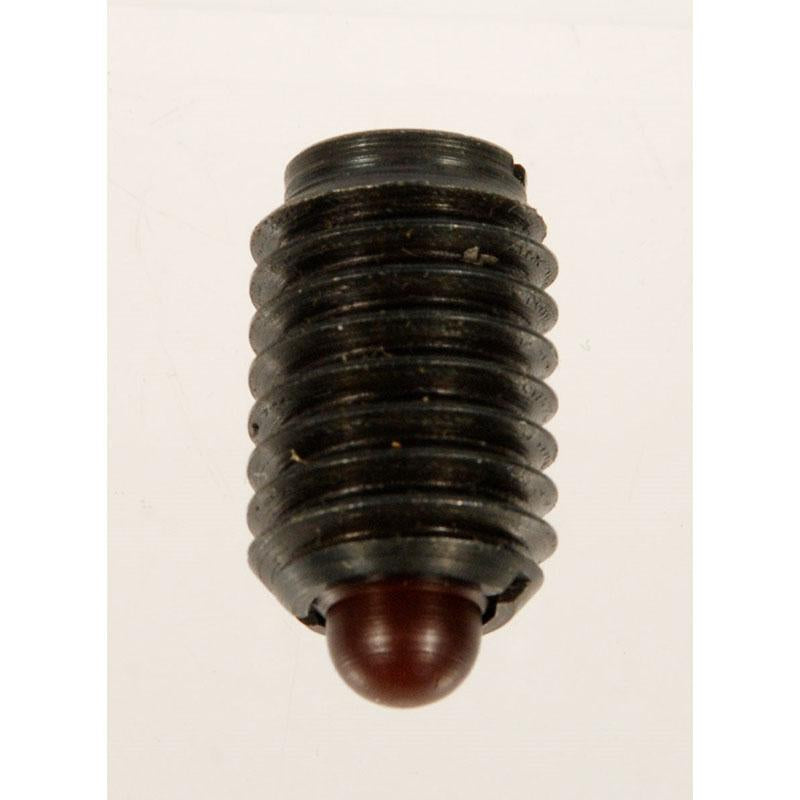

NORTHWESTERN TOOLS 33010 Short Spring Plungers - Heavy Pressures - With Lock. Element - Brown Delrin, End Force: 4.5 Initial x 11.5 Half x 18.5 Full
SKU: NW-33010
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $200 minimum for all Northwestern Tools product orders*
Short Description
NORTHWESTERN TOOLS 33010 Short Spring Plungers - Heavy Pressures - With Lock. Element - Brown Delrin, End Force: 4.5 Initial x 11.5 Half x 18.5 FullNorthwestern Part Number: 33010
Carr Lane equivalent: CL-61N/ASPNN/A1
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
**Please note, this item is nonrefundable.**
Full Description
NORTHWESTERN TOOLS 33010 Short Spring Plungers - Heavy Pressures - With Lock. Element - Brown Delrin, End Force: 4.5 Initial x 11.5 Half x 18.5 Full
Short Spring Plungers - Heavy Pressures - With Lock. Element - Brown Delrin, End Force: 4.5 Initial x 11.5 Half x 18.5 Full
Northwestern Part Number: 33010
Carr Lane equivalent: CL-61N/ASPNN/A1
Product Information Steel Short Spring Plungers with Heavy Spring PressuresSteel noses are case hardened for wear resistance without brittleness. Bodies are 12L14 steel with a black oxide finish. The nylon locking element holds the plunger body securely in place without the need for lock nuts or other devices. We recommend a 90 degree countersink 1/32" larger than the major diameter of the mating thread to prevent damaging the element. To prevent possible spring damage, use of a Northwestern Wrench is recommended when installing from plunger end. |
Steel Short Spring Plungers with Heavy Spring Pressures | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Heat Treated Black Oxide Steel Nose | ||||||||||
With Lock Ele. Part No. |
Without Lock Ele. Part No. | End Pressures Lbs. Start | End Pressures Lbs. 1/2 |
End Pressures Lbs. Full |
A | B | C | D | Net Lbs. Per 100 | |
33100 | 33100P | 1.5 | 3.1 | 4.75 | #8-32 | 7/16 | .052 | .070 | 1/2 | |
33104 | 33104P | 1.5 | 3.1 | 4.75 | #8-36 | 7/16 | .052 | .070 | 1/2 | |
33106 | 33106P | 1.75 | 4.0 | 6.25 | #10-32 | 15/32 | .065 | .093 | 1/2 | |
33110 | 33110P | 3.0 | 6.75 | 10.5 | 1/4-20 | 17/32 | .078 | .119 | 1/2 | |
33112 | 33112P | 3.75 | 9.6 | 15.5 | 5/16-18 | 9/16 | .084 | .135 | 1 | |
33114 | 33114P | 4.5 | 11.5 | 18.5 | 3/8-16 | 5/8 | .110 | .186 | 2 | |
33116 | 33116P | 5.0 | 16.5 | 28.0 | 1/2-13 | 3/4 | .151 | .248 | 3 | |
33118 | 33118P | 7.0 | 28.5 | 50.0 | 5/8-11 | 1-1/16 | .215 | .310 | 6 | |
Brown Delrin Nose | ||||||||||
33000 | 33000P | 1.5 | 3.1 | 4.75 | #8-32 | 7/16 | .052 | .070 | 1/2 | |
33002 | 33002P | 1.5 | 3.1 | 4.75 | #8-36 | 7/16 | .052 | .070 | 1/2 | |
33004 | 33004P | 1.75 | 4.0 | 6.25 | #10-32 | 15/32 | .065 | .093 | 1/2 | |
33006 | 33006P | 3.0 | 6.75 | 10.5 | 1/4-20 | 17/32 | .078 | .119 | 1/2 | |
33008 | 33008P | 3.75 | 9.6 | 15.5 | 5/16-18 | 9/16 | .084 | .135 | 1 | |
33010 | 33010P | 4.5 | 11.5 | 18.5 | 3/8-16 | 5/8 | .110 | .186 | 1 | |
33012 | 33012P | 5.0 | 16.5 | 28.0 | 1/2-13 | 3/4 | .151 | .248 | 2 | |
33014 | 33014P | 7.0 | 28.5 | 50.0 | 5/8-11 | 1-1/16 | .215 | .310 | 5 |
All parts conform to TCMAI Standards
**Please note, this item is nonrefundable.**
