*NORTHWESTERN PRICES ARE SUBJECT TO CHANGE AT ANY TIME, PLEASE CALL/EMAIL SALES BEFORE PLACING YOUR ORDER TO VERIFY THE PRICE SHOWN. IF YOU PLACE THE ORDER WITHOUT VERIFICATION AND WANT TO CANCEL, YOU WILL BE CHARGED A 4% PROCESSING FEE, THIS IS NON REFUNDABLE.*
Brand: Northwestern Tools

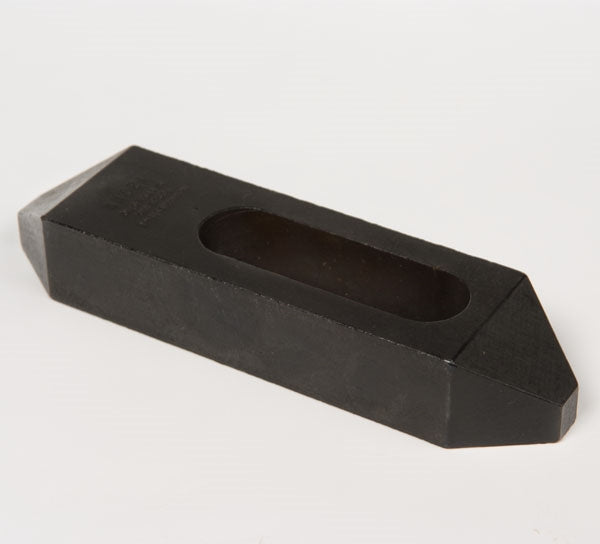

NORTHWESTERN TOOLS 12005 Strap Clamps - Plain Clamps; Bolt Size: 1/2, Thickness: 4"
SKU: NW-12005
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $200 minimum for all Northwestern Tools product orders*
Short Description
NORTHWESTERN TOOLS 12005 Strap Clamps - Plain Clamps; Bolt Size: 1/2, Thickness: 4"Northwestern Part Number: 12005
Carr Lane equivalent: CL-44N/APC
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
NORTHWESTERN TOOLS 12005 Strap Clamps - Plain Clamps; Bolt Size: 1/2, Thickness: 4"
Strap Clamps - Plain Clamps; Bolt Size: 1/2, Thickness: 4"
Northwestern Part Number: 12005
Carr Lane equivalent: CL-44N/APC
Product Information Plain ClampsClamps for 5/16, 3/8, 1/2, & 5/8 bolts work with metric bolts M8, M10, M12 & M16 Use with two step block halves for higher clamping requirements. |
| Plain Clamps | |||||||
|---|---|---|---|---|---|---|---|
| Part No. |
Ref. No. |
Bolt Size |
Length | Width | Thickness | Net Lbs. Per 100 | |
| 12001 | 25-P38 | 5/16 or 3/8 | 2-1/2 | 1" | 1/2 | 22 | |
| 12002 | 40-P38 | 5/16 or 3/8 | 4" | 1" | 5/8 | 47 | |
| 12003 | 60-P38 | 5/16 or 3/8 | 6" | 1-1/8 | 3/4 | 103 | |
| 12004 | 25-P12 | 1/2 | 2-1/2 | 1-1/8 | 1/2 | 24 | |
| 12005 | 40-P12 | 1/2 | 4" | 1-1/4 | 3/4 | 67 | |
| 12006 | 60-P12 | 1/2 | 6" | 1-1/4 | 7/8 | 128 | |
| 12007 | 25-P58 | 5/8 | 2-1/2 | 1-1/4 | 5/8 | 34 | |
| 12008 | 40-P58 | 5/8 | 4" | 1-1/2 | 3/4 | 83 | |
| 12009 | 60-P58 | 5/8 | 6" | 1-1/2 | 7/8 | 153 | |
| 12010 | 40-P34 | 3/4 | 4" | 1-1/2 | 3/4 | 79 | |
| 12011 | 60-P34 | 3/4 | 6" | 1-5/8 | 1" | 187 | |
| 12012 | 80-P34 | 3/4 | 8" | 1-3/4 | 1-1/8 | 323 | |
| 12013 | 60-P10 | 7/8 or 1" | 6" | 2" | 1-1/4 | 270 | |
| 12014 | 80-P10 | 7/8 or 1" | 8" | 2" | 1-3/8 | 445 | |
| 12015 | 10-P10 | 7/8 or 1" | 10" | 2" | 1-1/2 | 607 | |
