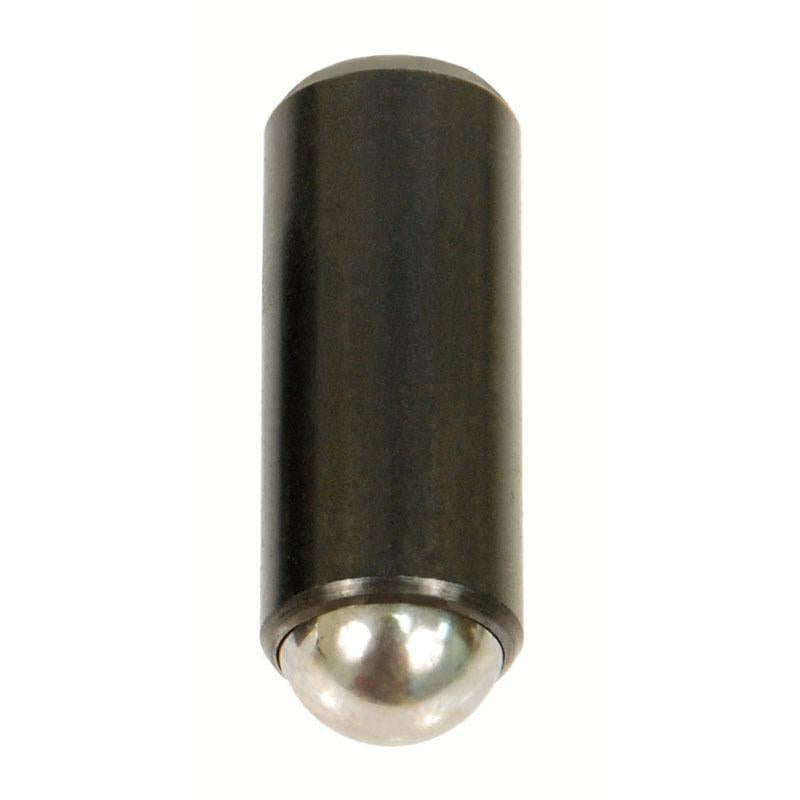

NORTHWESTERN TOOLS 10614 Press-Thru-Ball-Plunger / Stainless Ball / Heavy Pressure: End Pressure (Lbs): 2.0 Start, 5.0 Full; A: .125; B: .284; C: .035; Ball Dia. D: .093
SKU: NW-10614
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $200 minimum for all Northwestern Tools product orders*
Short Description
NORTHWESTERN TOOLS 10614 Press-Thru-Ball-Plunger / Stainless Ball / Heavy Pressure: End Pressure (Lbs): 2.0 Start, 5.0 Full; A: .125; B: .284; C: .035; Ball Dia. D: .093Northwestern Part Number: 10614
Carr Lane equivalent: N/A
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
NORTHWESTERN TOOLS 10614 Press-Thru-Ball-Plunger / Stainless Ball / Heavy Pressure: End Pressure (Lbs): 2.0 Start, 5.0 Full; A: .125; B: .284; C: .035; Ball Dia. D: .093
Press-Thru-Ball-Plunger / Stainless Ball / Heavy Pressure: End Pressure (Lbs): 2.0 Start, 5.0 Full; A: .125; B: .284; C: .035; Ball Dia. D: .093
Northwestern Part Number: 10614
Carr Lane equivalent: N/A
Product Information Steel and Stainless Steel Press-Thru Ball Plunger with Stainless BallThe new Press-Thru Ball Plunger has the same body dimensions, spring pressure and materials as the Press Fit Ball Plungers. It will not have the flange on the ball end. This will allow for insertion into the work piece from the top or bottom, front or back. Simply press the body so the plunger end is flush with the surface. Without the flange, these plungers may be used where less clearance is available. They are made oversized to secure firmly into the hole. Steel bodies are made of 12L14 material with a black oxide finish. Stainless bodies are made of 303 material. Balls are 440 stainless. White end represents light pressure. Yellow end represents heavy pressure. Patent No. 8,261,424B1 |
Steel and Stainless Steel Press-Thru Ball Plunger with Stainless Ball | |||||||
---|---|---|---|---|---|---|---|
Light Pressure | |||||||
Steel
|
Stainless Steel | End Pressure Lbs. Start | End Pressure Lbs. Full |
A | B | C | Ball Dia. D |
10600 | 10600-SS | 0.5 | 1.0 | .125 | .284 | .035 | .093 |
10600A | 10600A-SS | 0.75 | 2.0 | .157 | .365 | .046 | .125 |
10601 | 10601-SS | 1.0 | 2.5 | .188 | .440 | .058 | .156 |
10602 | 10602-SS | 1.5 | 3.5 | .250 | .525 | .070 | .187 |
10603 | 10603-SS | 2.0 | 5.0 | .312 | .688 | .090 | .250 |
10604 | 10604-SS | 2.5 | 7.0 | .375 | .864 | .110 | .312 |
10605 | 10605-SS | 4.0 | 9.0 | .500 | 1.218 | .161 | .437 |
Medium Pressure | |||||||
10607 | 10607-SS | 0.75 | 2.5 | .125 | .284 | .035 | .093 |
10607A | 10607A-SS | 1.5 | 3.5 | .157 | .365 | .046 | .125 |
10608 | 10608-SS | 2.0 | 5.0 | .188 | .440 | .058 | .156 |
10609 | 10609-SS | 3.0 | 7.0 | .250 | .525 | .070 | .187 |
10610 | 10610-SS | 4.0 | 10.0 | .312 | .688 | .090 | .250 |
10611 | 10611-SS | 5.0 | 14.0 | .375 | .864 | .110 | .312 |
10612 | 10612-SS | 8.0 | 18.0 | .500 | 1.218 | .161 | .437 |
Heavy Pressure | |||||||
10614 | 10614-SS | 2.0 | 5.0 | .125 | .284 | .035 | .093 |
10614A | 10614A-SS | 3.0 | 7.5 | .157 | .365 | .046 | .125 |
10615 | 10615-SS | 4.0 | 10.0 | .188 | .440 | .058 | .156 |
10616 | 10616-SS | 6.0 | 13.0 | .250 | .525 | .070 | .187 |
10617 | 10617-SS | 8.0 | 16.0 | .312 | .688 | .090 | .250 |
10618 | 10618-SS | 10.0 | 18.0 | .375 | .864 | .110 | .312 |
10619 | 10619-SS | 12.0 | 23.0 | .500 | 1.218 | .161 | .437 |
End pressures are given in pounds. Full pressures are the force pounds needed to move the ball the distance shown in "C" column.
