Brand: Northwestern Tools

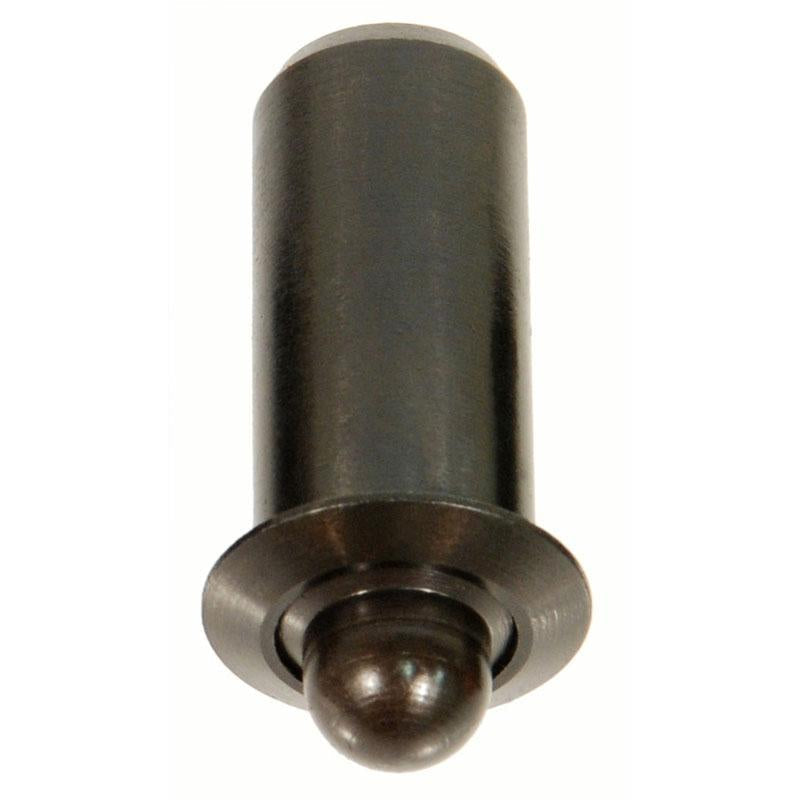

NORTHWESTERN TOOLS 10508 Press Fit Spring Plungers - Heavy Pressure, Heated Treated Steel Nose - Black Oxide Finish / Stainless Nose; End Force: 4.0 Initial x 10.0 Final
SKU: NW-10508
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $200 minimum for all Northwestern Tools product orders*
Short Description
NORTHWESTERN TOOLS 10508 Press Fit Spring Plungers - Heavy Pressure, Heated Treated Steel Nose - Black Oxide Finish / Stainless Nose; End Force: 4.0 Initial x 10.0 FinalNorthwestern Part Number: 10508
Carr Lane equivalent: N/A
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
NORTHWESTERN TOOLS 10508 Press Fit Spring Plungers - Heavy Pressure, Heated Treated Steel Nose - Black Oxide Finish / Stainless Nose; End Force: 4.0 Initial x 10.0 Final
Press Fit Spring Plungers - Heavy Pressure, Heated Treated Steel Nose - Black Oxide Finish / Stainless Nose; End Force: 4.0 Initial x 10.0 Final
Northwestern Part Number: 10508
Carr Lane equivalent: N/A
Product Information Steel and Stainless Steel Heavy Pressure Press Fit Spring PlungersSteel bodies are made of 12L14 material with a black oxide finish. All stainless steel parts are made of 303 stainless steel. Stainless steel not pictured. |
| Steel and Stainless Steel Heavy Pressure Press Fit Spring Plungers | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Heat Treated Steel Nose - Black Oxide Finish/Stainless Nose | ||||||||||
| Steel Part No. |
Stainless Steel Part No. | End Pressure Lbs. Start | End Pressure Lbs. Full |
A | B | C | D | E | F | Net Lbs. Per 100 |
| 10502 | 10526 | 1.0 | 2.0 | .125 | .252 | .062 | .070 | .187 | .032 | 1 |
| 10503 | 10527 | 1.25 | 3.25 | .157 | .330 | .078 | .093 | .215 | .035 | 1 |
| 10504 | 10528 | 1.5 | 4.5 | .188 | .405 | .094 | .121 | .250 | .035 | 1 |
| 10506 | 10530 | 2.5 | 6.0 | .250 | .481 | .125 | .168 | .312 | .044 | 1 |
| 10508 | 10532 | 4.0 | 10.0 | .312 | .643 | .151 | .186 | .375 | .045 | 1 |
| 10510 | 10534 | 5.0 | 14.0 | .375 | .785 | .187 | .234 | .500 | .078 | 2 |
| 10512 | 10536 | 8.0 | 18.0 | .500 | 1.130 | .250 | .332 | .688 | .088 | 4 |
| Brown Delrin Nose | ||||||||||
| 10550 | 10574 | 1.0 | 2.0 | .125 | .252 | .062 | .070 | .187 | .032 | 1 |
| 10551 | 10575 | 1.25 | 3.25 | .157 | .330 | .078 | .093 | .215 | .035 | 1 |
| 10552 | 10576 | 1.5 | 4.5 | .188 | .405 | .094 | .121 | .250 | .035 | 1 |
| 10554 | 10578 | 2.5 | 6.0 | .250 | .481 | .125 | .168 | .312 | .044 | 1 |
| 10556 | 10580 | 4.0 | 10.0 | .312 | .643 | .151 | .186 | .375 | .045 | 1 |
| 10558 | 10582 | 5.0 | 14.0 | .375 | .785 | .187 | .234 | .500 | .078 | 2 |
| 10560 | 10584 | 8.0 | 18.0 | .500 | 1.130 | .250 | .332 | .688 | .088 | 4 |
