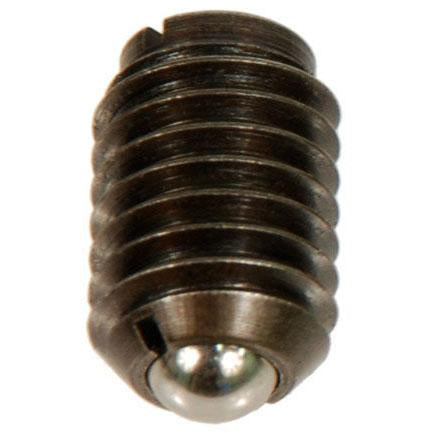

NORTHWESTERN TOOLS 10014 Ball Plungers - Steel - Stainless Ball, End Force: 2.5 Initial x 5.0 Final, Ball Dia: .187

Brand: Northwestern Tools

NORTHWESTERN TOOLS 10014 Ball Plungers - Steel - Stainless Ball, End Force: 2.5 Initial x 5.0 Final, Ball Dia: .187

SKU: NW-10014
MPN: 10014

  • $3.52
    Unit price per
  • Save $1.79
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


*Please note, there is a $200 minimum for all Northwestern Tools product orders*

Short Description

NORTHWESTERN TOOLS 10014 Ball Plungers - Steel - Stainless Ball, End Force: 2.5 Initial x 5.0 Final, Ball Dia: .187
Northwestern Part Number: 10014
Carr Lane equivalent: CL-60N/ABPN/A1

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

NORTHWESTERN TOOLS 10014 Ball Plungers - Steel - Stainless Ball, End Force: 2.5 Initial x 5.0 Final, Ball Dia: .187

Ball Plungers - Steel - Stainless Ball, End Force: 2.5 Initial x 5.0 Final, Ball Dia: .187

Northwestern Part Number: 10014

Carr Lane equivalent: CL-60N/ABPN/A1

Product Information

Steel Ball Plungers (Stainless Ball)

Steel bodies are 12L14 steel.

Bodies are color coded.

Plain is 303 stainless steel.

The nylon locking element holds the plunger body securely in place without the need for lock nuts or other devices. We recommend a 90 degree countersink 1/32" larger than the major diameter of the mating thread to prevent damaging the element.

To prevent possible spring damage, use of a Northwestern Wrench is recommended when installing from plunger end.

End pressures are given in pounds. Full pressures are the force pounds needed to move the ball the distance shown in "C" column.

#6-40 and smaller have no slot in ball end

Steel Ball Plungers (Stainless Ball)
With Lock.
Ele.Part #
W/O Lock.
Ele.Part #
**Color
Code
End Press. - Lbs.
Start
End Press. - Lbs.
Full
A B C Ball Dia.
D
Net Lbs.
Per 100
*10001B 10001BP Plain 0.12 0.5 # 4-48 3/16 .020 .062 1/4
*10002B 10002BP Plain 0.25 0.75 # 5-40 1/4 .020 .062 1/4
*10003B 10003BP Plain 0.5 1.0 # 6-40 5/16 .023 .078 1/4
*10004B 10004BP Plain 0.5 1.25 # 8-36 11/32 .025 .093 1/4
*10100B 10100BP Plain 0.5 1.25 # 8-32 11/32 .025 .093 1/4
10005 10005P Silver 0.5 1.5 # 10-32 33/64 .025 .093 1/4
10006 10006P Black 1.5 3.0 # 10-32 33/64 .025 .093 1/4
10007 10007P Gold 2.0 5.0 # 10-32 33/64 .025 .093 1/4
10008 10008P Silver 2.0 4.0 1/4-20 17/32 .035 .125 1/2
10009 10009P Black 3.0 7.0 1/4-20 17/32 .035 .125 1/2
10010 10010P Gold 4.0 12.0 1/4-20 17/32 .035 .125 1/2
10011 10011P Silver 2.0 4.5 5/16-18 37/64 .040 .156 1
10012 10012P Black 4.0 9.0 5/16-18 37/64 .040 .156 1
10013 10013P Gold 6.0 17.0 5/16-18 37/64 .040 .156 1
10014 10014P Silver 2.5 5.0 3/8-16 5/8 .048 .187 1-1/2
10015 10015P Black 5.0 10.0 3/8-16 5/8 .048 .187 1-1/2
10016 10016P Gold 6.0 21.0 3/8-16 5/8 .048 .187 1-1/2
10017 10017P Silver 3.0 6.0 1/2-13 3/4 .072 .281 3
10018 10018P Black 6.0 12.0 1/2-13 3/4 .072 .281 3
10019 10019P Gold 6.0 30.0 1/2-13 3/4 .072 .281 3
10020 10020P Silver 4.5 9.0 5/8-11 63/64 .096 .375 5-1/2
10021 10021P Black 9.0 18.0 5/8-11 63/64 .096 .375 5-1/2
10022 10022P Gold 7.0 50.0 5/8-11 63/64 .096 .375 5-1/2

** Silver - Light Pressures, Black - Medium Pressures, Gold - Heavy Pressures

All Parts conform to TCMAI Standards
