NAAMS Steel Risers
Freer Tool & Supply’s NAAMS steel risers collection supports rigid, repeatable height spacing for welding fixtures, assembly tooling, and automation builds where strength and stability are critical. Steel risers are used to raise locating, clamping, and support components to the correct working height while maintaining a solid foundation—helping reduce deflection, improve alignment retention, and keep part location consistent through high-cycle production
NAAMS steel risers are manufactured from ASTM A-36 steel and are available in a variety of heights. Metric options include M10 x 1.5 tapped holes or 11.0 mm holes, while standard versions feature 3/8-16 tapped holes or 13/32" holes.
| NAAMS Code | "A" | B Tap Holes | WT. kg | ||
|---|---|---|---|---|---|
| E | M | ||||
| AAB100E | AAB100M | 100.00 | 3/8-16 tap | M10x1.5 | 5.44 |
| AAB101E | AAB101M | 100.00 | 13/32 | 11.0 | 5.44 |
| AAB150E | AAB150M | 150.00 | 3/8-16 tap | M10x1.5 | 6.35 |
| AAB151E | AAB151M | 150.00 | 13/32 | 11.0 | 6.35 |
| AAB200E | AAB200M | 200.00 | 3/8-16 tap | M10x1.5 | 7.71 |
| AAB201E | AAB201M | 200.00 | 13/32 | 11.0 | 7.71 |
| AAB250E | AAB250M | 250.00 | 3/8-16 tap | M10x1.5 | 9.07 |
| AAB251E | AAB251M | 250.00 | 13/32 | 11.0 | 9.07 |
| AAB300E | AAB300M | 300.00 | 3/8-16 tap | M10x1.5 | 10.43 |
| AAB301E | AAB301M | 300.00 | 13/32 | 11.0 | 10.43 |
| AAB350E | AAB350M | 350.00 | 3/8-16 tap | M10x1.5 | 12.24 |
| AAB351E | AAB351M | 350.00 | 13/32 | 11.0 | 12.24 |
| AAB400E | AAB400M | 400.00 | 3/8-16 tap | M10x1.5 | 13.61 |
| AAB401E | AAB401M | 400.00 | 13/32 | 11.0 | 13.61 |
| AHB001E | AHB001M | - | 13/32 | 11.0 | 2.5 |
| AHB002E | AHB002M | - | 3/8-16 tap | M10 x 1.5 | 2.5 |
| - | ARA100M | 100.00 | - | M10x1.5 | 9.2 |
| - | ARA101M | 100.00 | - | 11.0 | 9.2 |
| - | ARA150M | 150.00 | - | M10x1.5 | 11.2 |
| - | ARA151M | 150.00 | - | 11.0 | 11.2 |
| - | ARA200M | 200.00 | - | M10x1.5 | 13.1 |
| - | ARA201M | 200.00 | - | 11.0 | 13.1 |
| - | ARA250M | 250.00 | - | M10x1.5 | 14.9 |
| - | ARA251M | 250.00 | - | 11.0 | 14.9 |
| - | ARA300M | 300.00 | - | M10x1.5 | 16.1 |
| - | ARA301M | 300.00 | - | 11.0 | 16.1 |
| - | ARA350M | 350.00 | - | M10x1.5 | 18.4 |
| - | ARA351M | 350.00 | - | 11.0 | 18.4 |
| - | ARA400M | 400.00 | - | M10x1.5 | 19.6 |
| - | ARA401M | 400.00 | - | 11.0 | 19.6 |
| ARA450E | ARA450M | 450.00 | 3/8-16 tap | M10x1.5 | 24.5 |
| ARA451E | ARA451M | 450.00 | 13/32 | 11.0 | 24.5 |
| ARA500E | ARA500M | 500.00 | 3/8-16 tap | M10x1.5 | 28.1 |
| ARA501E | ARA501M | 500.00 | 13/32 | 11.0 | 28.1 |
| ARA550E | ARA550M | 550.00 | 3/8-16 tap | M10x1.5 | 29.5 |
| ARA551E | ARA551M | 550.00 | 13/32 | 11.0 | 29.5 |
| ARA600E | ARA600M | 600.00 | 3/8-16 tap | M10x1.5 | 31.7 |
| ARA601E | ARA601M | 600.00 | 13/32 | 11.0 | 31.7 |
| ARA650E | ARA650M | 650.00 | 3/8-16 tap | M10x1.5 | 34.5 |
| ARA651E | ARA651M | 650.00 | 13/32 | 11.0 | 34.5 |
| ARA700E | ARA700M | 700.00 | 3/8-16 tap | M10x1.5 | 37.2 |
| ARA701E | ARA701M | 700.00 | 13/32 | 11.0 | 37.2 |
| ARA750E | ARA750M | 750.00 | 3/8-16 tap | M10x1.5 | 39.0 |
| ARA751E | ARA751M | 750.00 | 13/32 | 11.0 | 39.0 |
| ARA800E | ARA800M | 800.00 | 3/8-16 tap | M10x1.5 | 44.4 |
| ARA801E | ARA801M | 800.00 | 13/32 | 11.0 | 44.4 |
NAAMS Riser Angle Bracket ARA400M
SKU: FN-ARA400M
MPN: ARA400M
NAAMS Riser Angle Bracket ARA401M
SKU: FN-ARA401M
MPN: ARA401M
NAAMS Riser Angle Bracket ARA450M
SKU: FN-ARA450M
MPN: ARA450M
NAAMS Riser Angle Bracket ARA451M
SKU: FN-ARA451M
MPN: ARA451M
NAAMS Riser Angle Bracket ARA500M
SKU: FN-ARA500M
MPN: ARA500M
NAAMS Riser Angle Bracket ARA501M
SKU: FN-ARA501M
MPN: ARA501M
NAAMS Riser Angle Bracket ARA550M
SKU: FN-ARA550M
MPN: ARA550M
NAAMS Riser Angle Bracket ARA551M
SKU: FN-ARA551M
MPN: ARA551M
NAAMS Riser Angle Bracket ARA600M
SKU: FN-ARA600M
MPN: ARA600M
NAAMS Riser Angle Bracket ARA601M
SKU: FN-ARA601M
MPN: ARA601M
NAAMS Riser Angle Bracket ARA650M
SKU: FN-ARA650M
MPN: ARA650M
NAAMS Riser Angle Bracket ARA651M
SKU: FN-ARA651M
MPN: ARA651M

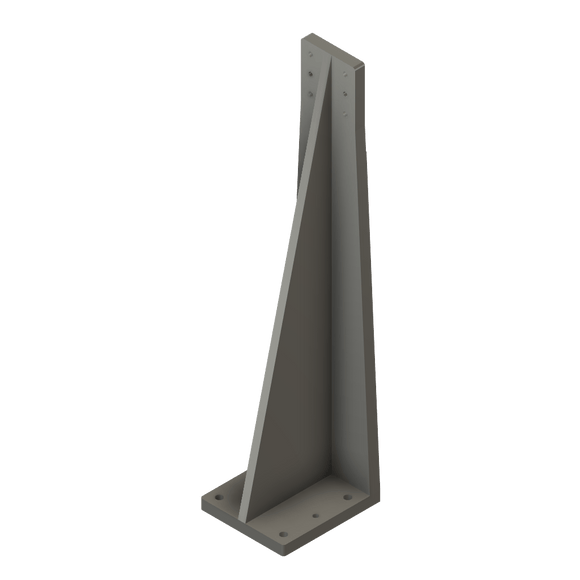

NAAMS Riser Angle Bracket ARA700M
SKU: FN-ARA700M
MPN: ARA700M
NAAMS Riser Angle Bracket ARA701M
SKU: FN-ARA701M
MPN: ARA701M

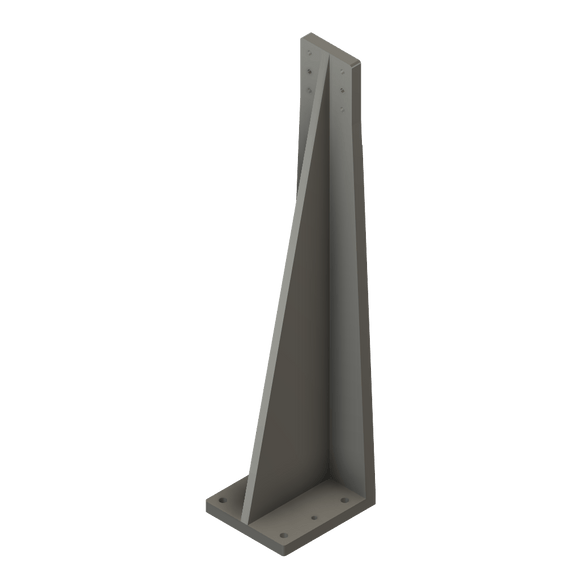

NAAMS Riser Angle Bracket ARA750M
SKU: FN-ARA750M
MPN: ARA750M
NAAMS Riser Angle Bracket ARA751M
SKU: FN-ARA751M
MPN: ARA751M
NAAMS Riser Angle Bracket ARA800M
SKU: FN-ARA800M
MPN: ARA800M
NAAMS Riser Angle Bracket ARA801M
SKU: FN-ARA801M
MPN: ARA801M
