NAAMS Steel Risers
Freer Tool & Supply’s NAAMS steel risers collection supports rigid, repeatable height spacing for welding fixtures, assembly tooling, and automation builds where strength and stability are critical. Steel risers are used to raise locating, clamping, and support components to the correct working height while maintaining a solid foundation—helping reduce deflection, improve alignment retention, and keep part location consistent through high-cycle production
NAAMS steel risers are manufactured from ASTM A-36 steel and are available in a variety of heights. Metric options include M10 x 1.5 tapped holes or 11.0 mm holes, while standard versions feature 3/8-16 tapped holes or 13/32" holes.
| NAAMS Code | "A" | B Tap Holes | WT. kg | ||
|---|---|---|---|---|---|
| E | M | ||||
| AAB100E | AAB100M | 100.00 | 3/8-16 tap | M10x1.5 | 5.44 |
| AAB101E | AAB101M | 100.00 | 13/32 | 11.0 | 5.44 |
| AAB150E | AAB150M | 150.00 | 3/8-16 tap | M10x1.5 | 6.35 |
| AAB151E | AAB151M | 150.00 | 13/32 | 11.0 | 6.35 |
| AAB200E | AAB200M | 200.00 | 3/8-16 tap | M10x1.5 | 7.71 |
| AAB201E | AAB201M | 200.00 | 13/32 | 11.0 | 7.71 |
| AAB250E | AAB250M | 250.00 | 3/8-16 tap | M10x1.5 | 9.07 |
| AAB251E | AAB251M | 250.00 | 13/32 | 11.0 | 9.07 |
| AAB300E | AAB300M | 300.00 | 3/8-16 tap | M10x1.5 | 10.43 |
| AAB301E | AAB301M | 300.00 | 13/32 | 11.0 | 10.43 |
| AAB350E | AAB350M | 350.00 | 3/8-16 tap | M10x1.5 | 12.24 |
| AAB351E | AAB351M | 350.00 | 13/32 | 11.0 | 12.24 |
| AAB400E | AAB400M | 400.00 | 3/8-16 tap | M10x1.5 | 13.61 |
| AAB401E | AAB401M | 400.00 | 13/32 | 11.0 | 13.61 |

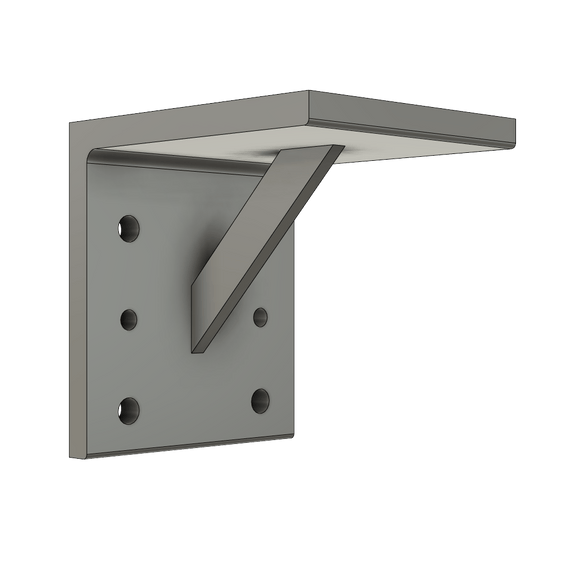

| AHB001E | AHB001M | - | 13/32 | 11.0 | 2.5 |
| AHB002E | AHB002M | - | 3/8-16 tap | M10 x 1.5 | 2.5 |
| - | ARA100M | 100.00 | - | M10x1.5 | 9.2 |
| - | ARA101M | 100.00 | - | 11.0 | 9.2 |
| - | ARA150M | 150.00 | - | M10x1.5 | 11.2 |
| - | ARA151M | 150.00 | - | 11.0 | 11.2 |
| - | ARA200M | 200.00 | - | M10x1.5 | 13.1 |
| - | ARA201M | 200.00 | - | 11.0 | 13.1 |
| - | ARA250M | 250.00 | - | M10x1.5 | 14.9 |
| - | ARA251M | 250.00 | - | 11.0 | 14.9 |
| - | ARA300M | 300.00 | - | M10x1.5 | 16.1 |
| - | ARA301M | 300.00 | - | 11.0 | 16.1 |
| - | ARA350M | 350.00 | - | M10x1.5 | 18.4 |
| - | ARA351M | 350.00 | - | 11.0 | 18.4 |
| - | ARA400M | 400.00 | - | M10x1.5 | 19.6 |
| - | ARA401M | 400.00 | - | 11.0 | 19.6 |
| ARA450E | ARA450M | 450.00 | 3/8-16 tap | M10x1.5 | 24.5 |
| ARA451E | ARA451M | 450.00 | 13/32 | 11.0 | 24.5 |
| ARA500E | ARA500M | 500.00 | 3/8-16 tap | M10x1.5 | 28.1 |
| ARA501E | ARA501M | 500.00 | 13/32 | 11.0 | 28.1 |
| ARA550E | ARA550M | 550.00 | 3/8-16 tap | M10x1.5 | 29.5 |
| ARA551E | ARA551M | 550.00 | 13/32 | 11.0 | 29.5 |
| ARA600E | ARA600M | 600.00 | 3/8-16 tap | M10x1.5 | 31.7 |
| ARA601E | ARA601M | 600.00 | 13/32 | 11.0 | 31.7 |
| ARA650E | ARA650M | 650.00 | 3/8-16 tap | M10x1.5 | 34.5 |
| ARA651E | ARA651M | 650.00 | 13/32 | 11.0 | 34.5 |
| ARA700E | ARA700M | 700.00 | 3/8-16 tap | M10x1.5 | 37.2 |
| ARA701E | ARA701M | 700.00 | 13/32 | 11.0 | 37.2 |
| ARA750E | ARA750M | 750.00 | 3/8-16 tap | M10x1.5 | 39.0 |
| ARA751E | ARA751M | 750.00 | 13/32 | 11.0 | 39.0 |
| ARA800E | ARA800M | 800.00 | 3/8-16 tap | M10x1.5 | 44.4 |
| ARA801E | ARA801M | 800.00 | 13/32 | 11.0 | 44.4 |

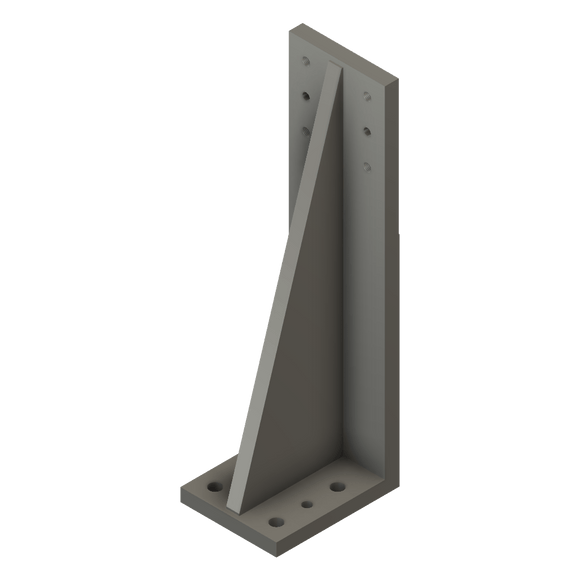

NAAMS Riser Angle Bracket AAB350E
SKU: FN-AAB350E
MPN: AAB350E
NAAMS Riser Angle Bracket AAB350M
SKU: FN-AAB350M
MPN: AAB350M
NAAMS Riser Angle Bracket AAB351E
SKU: FN-AAB351E
MPN: AAB351E
NAAMS Riser Angle Bracket AAB351M
SKU: FN-AAB351M
MPN: AAB351M
NAAMS Riser Angle Bracket AAB400E
SKU: FN-AAB400E
MPN: AAB400E

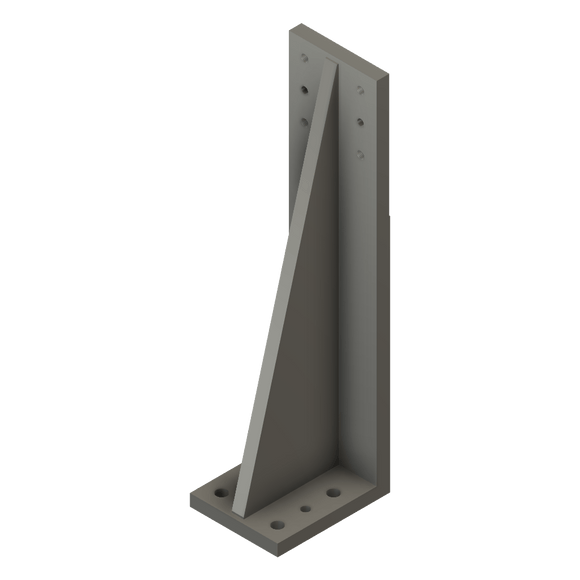

NAAMS Riser Angle Bracket AAB400M
SKU: FN-AAB400M
MPN: AAB400M
NAAMS Riser Angle Bracket AAB401E
SKU: FN-AAB401E
MPN: AAB401E
NAAMS Riser Angle Bracket AAB401M
SKU: FN-AAB401M
MPN: AAB401M

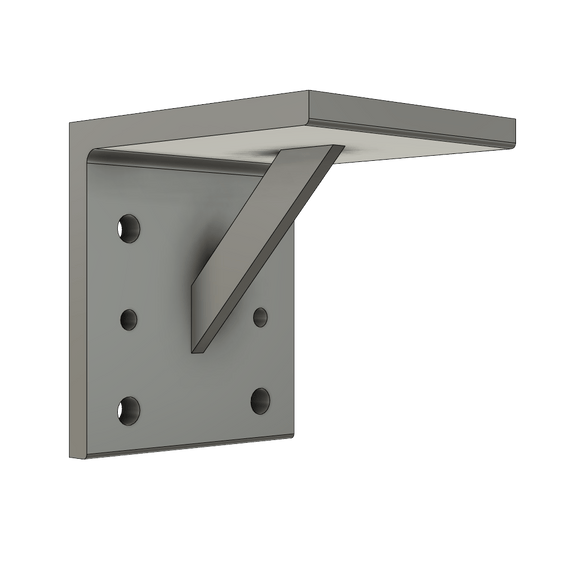

NAAMS Riser Angle Bracket AHB001M
SKU: FN-AHB001M
MPN: AHB001M

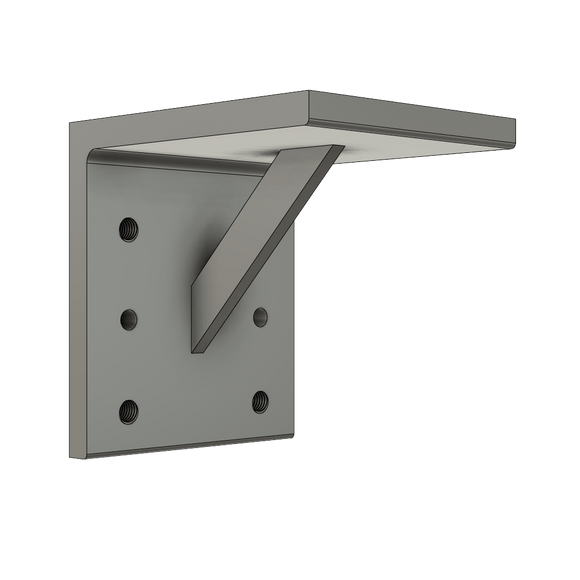

NAAMS Riser Angle Bracket AHB002M
SKU: FN-AHB002M
MPN: AHB002M
NAAMS Riser Angle Bracket ARA100M
SKU: FN-ARA100M
MPN: ARA100M
NAAMS Riser Angle Bracket ARA101M
SKU: FN-ARA101M
MPN: ARA101M
NAAMS Riser Angle Bracket ARA150M
SKU: FN-ARA150M
MPN: ARA150M
NAAMS Riser Angle Bracket ARA151M
SKU: FN-ARA151M
MPN: ARA151M
NAAMS Riser Angle Bracket ARA200M
SKU: FN-ARA200M
MPN: ARA200M
NAAMS Riser Angle Bracket ARA201M
SKU: FN-ARA201M
MPN: ARA201M
NAAMS Riser Angle Bracket ARA250M
SKU: FN-ARA250M
MPN: ARA250M
NAAMS Riser Angle Bracket ARA251M
SKU: FN-ARA251M
MPN: ARA251M
NAAMS Riser Angle Bracket ARA300M
SKU: FN-ARA300M
MPN: ARA300M
NAAMS Riser Angle Bracket ARA301M
SKU: FN-ARA301M
MPN: ARA301M
NAAMS Riser Angle Bracket ARA350M
SKU: FN-ARA350M
MPN: ARA350M
NAAMS Riser Angle Bracket ARA351M
SKU: FN-ARA351M
MPN: ARA351M
