Brand: Tungaloy

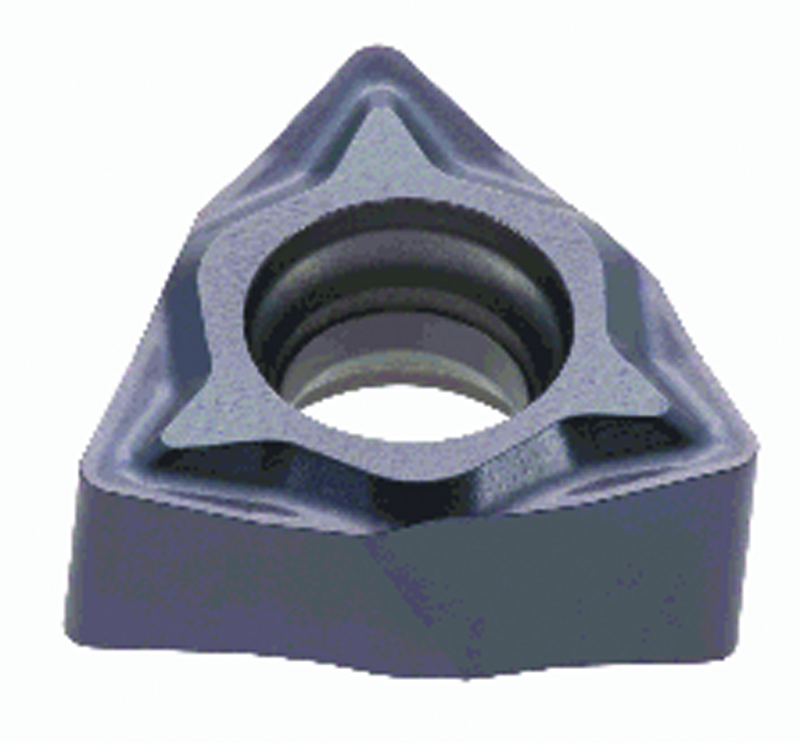

Tungaloy TG556995267 WXGU 221R SS AH725
SKU: FTS-TG556995267
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy 6995267 WXGU 221R SS AH725Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Fixing Hole Diameter (D1) | 0.106" |
| Application | | Inserts | | Min D.O.C. | 0.0059" |
| Insert Style | WXGU | Depth of Cut Maximum (APMX) | 0.059" |
| Corner Radius (RE) | 0.016" | Min. Turning Feed (ft(min)) | 0.002 "/rev |
| Insert Size | 221 | Max. Turning Feed (ft(max)) | 0.0078 "/rev |
| Insert Thickness (S) | 1/8" | Clearance Angle Major (AN) | 5 Degrees |
| Inscribed Circle Diameter (IC) | 1/4" | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | SS |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH725 | Series/List # | WXGU 221-SS |
| Tool Type | Turn Positive Inserts | Body Material | Carbide |
Family Description
Double sided trigon inserts with SS chipbreaker for finishing (low cutting force)
