Brand: INDUSTRIAL MAGNETICS

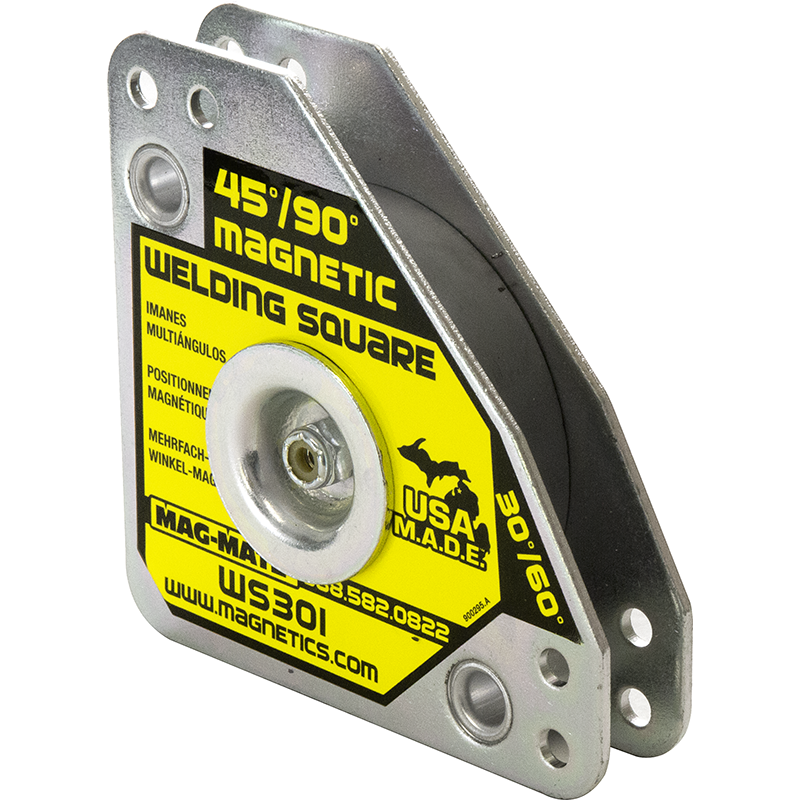

Industrial Magnetics MAG-MATE® Welding Square Multi-Angle 60Lb 3Axis WS301AX3
SKU: IM-WS301AX3
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Industrial Magnetics MAG-MATE Welding Square Multi-Angle 60Lb 3Axis WS301AX3. Magnetic Welding Squares. Welding Squares are available in Standard (always on) or Switchable On/Off models. Standard Welding Squares Our standard Magnetic Welding Squares are now made in the USA! Ideal for welders that need fast set-up and accurate holding of sheet stock or tubing.*Industrial Magnetics orders must meet a minimum of $75*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Industrial Magnetics MAG-MATE® Welding Square Multi-Angle 60Lb 3Axis WS301AX3
Magnetic Welding Squares
Welding Squares are available in Standard (always on) or Switchable On/Off models
Standard Welding Squares
Our standard Magnetic Welding Squares are now made in the USA! Ideal for welders that need fast set-up and accurate holding of sheet stock or tubing. Ferrous stock can be securely held at angles of 30°, 45°, 60°, 75°, 90° and 180°. Mounting holes are provided for fixturing squares into jigs.
- Large finger hole for easy setup and removal
- Through Holes for easy mounting and fixturing
- Plated vs. painted steel poles maintain a clean, non-rust surface
- Copper plated poles resist weld spatter and reduce marks on work surfaces. Available on models: WS300CP, WS301CP, WS400CP & WS410CP
- Fuzz Iron reduction covers on models: WS410, WS410CP, WS420, WS810 & WS820
- Breakaway handle on most powerful versions: WS420, WS810 & WS820
- Made In USA (USA M.A.D.E.)
3-Axis Kit for standard Weld Squares
The 3-Axis kit (WS3XK01) uses powerful permanent Rare Earth magnets inside an aluminum cup to hold a third steel surface during welding operations.The kit fits all standard "Always-On" Mag-Mate® welding squares. Kits include magnets and mounting hardware (Weld Square sold separately).
Mag90 - Switchable On/Off Magnetic Welding Squares and Fixture Magnets
Mag90 Magnetic Welding Squares
The switchable Mag90 On/Off Permanent Rare Earth Magnetic Squares are extremely powerful and eliminate the need for tedious clamping. These squares offer fast work-holding on multiple sides for flat or round steel. Features pre-tapped holes on all sides for mounting and a locking On/Off handle for safety.
- Fuzz iron is easy to clean when magnet is switched off
- Work holding on three sides
- Works with on flat or round steel
Mag90 - Multi-Angle Magnetic Welding Squares
The WSM0150R and WSM0150RG feature 5 common angles: 45, 75, 90 105 & 135 degrees. The WSM0150RG is dual-purpose as a weld angle and a 300 AMP ground.
Literature Download: Magnetic Welding Squares
| Standard Welding Squares | |||||||
| Part No. | Holding Value (lbs) | Description | Length (in) | Height (in) | Thickness (in) | Weight (lbs) | |
|---|---|---|---|---|---|---|---|
| WS11094 | 55 | Multi-Angle | 4-3/8 | 3 | 3/4 | 1.0 | |
| WS11094X2 | 110 | Multi-Angle, Extra Power | 4-3/8 | 3 | 1-9/16 | 2.0 | |
| WS100 | 40 | Inside 90°, Outside 45°/90° - Right Weld Pocket Square | 4-3/4 | 2-3/4 | 9/16 | 0.65 | |
| WS300 | 60 | Compact | 3-3/4 | 3-3/4 | 3/4 | 1.0 | |
| WS301 | 60 | Compact - 30°, 45°, 60° & 90° | 3-3/4 | 3-3/4 | 3/4 | 1.0 | |
| WS302 | 120 | Adjustable | 7-5/8 | 3-3/4 | 1-3/8 | 2.25 | |
| WS400 | 75 | Mid-Size | 3-3/4 | 4-3/8 | 3/4 | 1.05 | |
| WS410 | 75 | Mid-Size, Covered | 3-3/4 | 4-3/8 | 3/4 | 1.15 | |
| WS420 | 150 | Mid-Size, Extra Power Covered | 3-3/4 | 4-3/8 | 1-1/2 | 2.3 | |
| WS810 | 160 | Large, Covered | 8 | 8 | 3/4 | 3.9 | |
| WS820 | 325 | Large, Extra Power Covered | 8 | 8 | 1-1/2 | 7.5 | |
| WS11094AX3 | 55 | 3 Sided, Multi-Angle | 4-3/8 | 3 | 3/4 | 1.0 | |
| WS300AX3 | 60 | 3 Sided, Compact | 3-3/4 | 3-3/4 | 3/4 | 1.0 | |
| WS301AX3 | 60 | 3 Sided, Compact, Multi-Angle | 3-3/4 | 3-3/4 | 3/4 | 1.0 | |
| WS400AX3 | 75 | 3 Sided, Mid-Size | 3-3/4 | 4-3/8 | 3/4 | 1.05 | |
| WS410AX3 | 75 | 3 Sided, Mid-Size, Covered | 3-3/4 | 4-3/8 | 3/4 | 1.20 | |
| Copper Plated Welding Squares | |||||||
| WS300CP | 60 | Compact - Copper Plated | 3-3/4 | 3-3/4 | 3/4 | 1.0 | |
| WS301CP | 60 | Compact - 30°, 45°, 60° & 90° - Copper Plated | 3-3/4 | 3-3/4 | 3/4 | 1.0 | |
| WS400CP | 75 | Mid-Size - Copper Plated | 3-3/4 | 4-3/8 | 3/4 | 1.05 | |
| WS410CP | 75 | Mid-Size, Covered - Copper Plated | 3-3/4 | 4-3/8 | 3/4 | 1.15 | |
| Multi-Packs And Accessories | |||||||
| WS100PK02 | 40 ea. | 2 pack of WS100 (Right Weld) Pocket Welding Squares | |||||
| WS11094PK04 | 55 ea. | 4 Pack of W11094 Multi-Angle Weld Squares | |||||
| WS300PK04 | 60 ea. | 4 Pack of WS300 Compact Weld Square | |||||
| WS301PK02 | 60 ea. | 2 Pack of WS301 Compact Weld Squares | |||||
| WS400PK02 | 75 ea. | 2 Pack of WS400 Mid-Size Weld Squares | |||||
| WS410PK02 | 75 ea. | 2 Pack of WS410 Mid-Size,Covered Weld Squares | |||||
| WS3XK01 | 5.3 | 3-Axis Magnetic Kit Fits all standard "Always-On" style Mag-Mate® welding squares. Includes two sets of magnets and mounting hardware. | |||||
| Mag90 - On/Off Rare Earth Magnetic Welding Squares & Fixture Magnets | ||||||||||
| Part No. | Flat Part Holding Value (lbs) | Round Part | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
