Brand: DESTACO

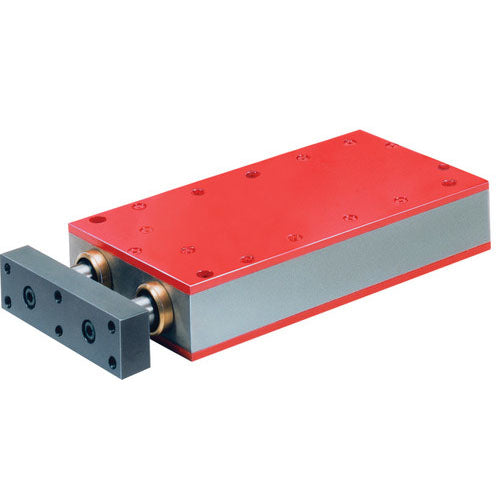

DESTACO WR2000-30-7 - PNEUMATIC POWER CYLINDER
SKU: DE-STA-CO-WR2000-30-7
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO WR2000-30-7 is a powerful pneumatic cylinder that serves as the driving force behind machines, tools, and devices. With a mechanical advantage of 10:1 from the wedge lever principle, it offers a dual-step stroke that includes both a forward stroke for longer distances and a power stroke that amplifies force over a shorter distance. This high-performing cylinder also boasts dual rods to prevent twisting and a solid, maintenance-free wedge lever mechanics for maximum durability. Its precise flange mount on the cylinder's head allows for exact positioning, while the magnetic field sensing enables end position control. With a maximum clamping force of 4,496 lbsf, a forward stroke of 1.180 inches, and a power stroke of 0.276 inches, this cylinder is capable of delivering unmatched performance in any position.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO WR2000-30-7 - PNEUMATIC POWER CYLINDER
Power element of machines, tools, and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (20 kN).
- Dual rods prevent twisting
- 10:1 mechanical advantage
- Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
- Exact positioning of the cylinder by flange mount on cylinder‚¬„¢s head
- The cylinder works in any position
- High durability because of solid and maintenance-free wedge lever mechanics.
- End position control by magnetic field sensing
Note:Use only clean, water- and oil-free compressed air. Force must be transmitted via the center of the pressure plate. One-sided loading of the pressure plate should be avoided.
Max. Clamping Force (lbsf) | 4,496 |
Forward Stroke (in) | 1.180 |
Cylinder Bore (in) | 2.76 |
Power Stroke (in) | 0.276 |
Temperature Range | -5 to 75°C (23 to 167°F) |
Product Type | Piston with Dual Rods |
Piston force within forwarding stroke at 6 bar (lbf) | 450 |
Air Consumption per double stroke at 6 bar (ft³) | 2.950 |
Air Consumption per double stroke at 87 psi (ft³) | 0.10 |
Stroke Frequency depending on total stroke (per minute) | 5 to 25 |
Weight (lb) | 3.90 |
Product Series Description | Power Cylinder |
Product Function | Clamping |
Product Family | Heavy-Duty Pneumatic Clamping |
Product Group | pneumatic power cylinder |
