Brand: DESTACO

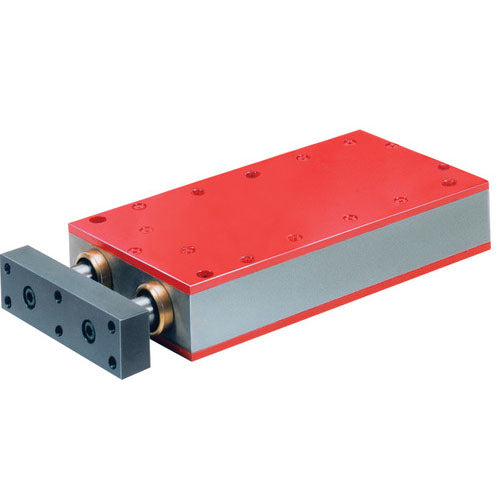

DESTACO WR2000-15-7 - PNEUMATIC POWER CYLINDER
SKU: DE-STA-CO-WR2000-15-7
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO WR2000-15-7 PNEUMATIC POWER CYLINDER is an essential component for various machines, tools, and devices. With a mechanical advantage of 10:1, thanks to its wedge lever principle, this unit offers a powerful and efficient solution. Its dual rods prevent twisting and ensure precise positioning with its two-step stroke system - a forward stroke for longer distances and a power stroke for greater force on a short distance. The solid and maintenance-free wedge lever mechanics provide high durability, while the cylinder can operate in any position. Magnetically controlled for precise end position control, this cylinder boasts a maximum clamping force of 4,496 lbsf, a 0.590 inch forward stroke, a 2.76 inch cylinder bore, and a 0.276 inch power stroke. Choose the DESTACO WR2000-15-7 for exceptional performance and reliability.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO WR2000-15-7 - PNEUMATIC POWER CYLINDER
Power element of machines, tools, and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (20 kN).
- Dual rods prevent twisting
- 10:1 mechanical advantage
- Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
- Exact positioning of the cylinder by flange mount on cylinder‚¬„¢s head
- The cylinder works in any position
- High durability because of solid and maintenance-free wedge lever mechanics.
- End position control by magnetic field sensing
Note:Use only clean, water- and oil-free compressed air. Force must be transmitted via the center of the pressure plate. One-sided loading of the pressure plate should be avoided.
| Max. Clamping Force (lbsf) | 4,496 |
| Forward Stroke (in) | 0.590 |
| Cylinder Bore (in) | 2.76 |
| Power Stroke (in) | 0.276 |
| Temperature Range | -5 to 75°C (23 to 167°F) |
| Product Type | Piston with Dual Rods |
| Piston force within forwarding stroke at 6 bar (lbf) | 450 |
| Air Consumption per double stroke at 6 bar (ft³) | 2.440 |
| Air Consumption per double stroke at 87 psi (ft³) | 0.09 |
| Stroke Frequency depending on total stroke (per minute) | 5 to 25 |
| Weight (lb) | 27.60 |
| Product Series Description | Power Cylinder |
| Product Function | Clamping |
| Product Family | Heavy-Duty Pneumatic Clamping |
| Product Group | pneumatic power cylinder |
