Brand: DESTACO

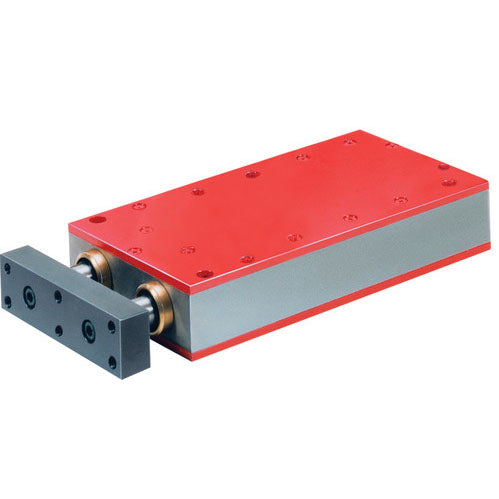

DESTACO WR2000-120-7 - PNEUMATIC POWER CYLINDER
SKU: DE-STA-CO-WR2000-120-7
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO WR2000-120-7 pneumatic power cylinder is a vital component for machines, tools, and devices. With a mechanical advantage of 10:1 due to the efficient wedge lever principle, it boasts a two-step stroke with a forward stroke and a power stroke that can amplify force up to 20 kN. To prevent twisting, it features dual rods and can be easily positioned with its flange mount on the cylinder's head. Its solid and maintenance-free wedge lever mechanics make it highly durable, while end position control is achieved through magnetic field sensing. Additionally, it works in any position and can provide a maximum clamping force of 4,496 lbsf. The cylinder bore measures 2.76 inches and the forward stroke is 4.720 inches, with the power stroke measuring 0.276 inches. Discover the incredible capabilities of this pneumatic power cylinder for yourself!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO WR2000-120-7 - PNEUMATIC POWER CYLINDER
Power element of machines, tools, and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (20 kN).
- Dual rods prevent twisting
- 10:1 mechanical advantage
- Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
- Exact positioning of the cylinder by flange mount on cylinder‚¬„¢s head
- The cylinder works in any position
- High durability because of solid and maintenance-free wedge lever mechanics.
- End position control by magnetic field sensing
Note:Use only clean, water- and oil-free compressed air. Force must be transmitted via the center of the pressure plate. One-sided loading of the pressure plate should be avoided.
| Max. Clamping Force (lbsf) | 4,496 |
| Forward Stroke (in) | 4.720 |
| Cylinder Bore (in) | 2.76 |
| Power Stroke (in) | 0.276 |
| Temperature Range | -5 to 75°C (23 to 167°F) |
| Product Type | Piston with Dual Rods |
| Piston force within forwarding stroke at 6 bar (lbf) | 450 |
| Air Consumption per double stroke at 6 bar (ft³) | 5.940 |
| Air Consumption per double stroke at 87 psi (ft³) | 0.21 |
| Stroke Frequency depending on total stroke (per minute) | 5 to 25 |
| Weight (lb) | 46.30 |
| Product Series Description | Power Cylinder |
| Product Function | Clamping |
| Product Family | Heavy-Duty Pneumatic Clamping |
| Product Group | pneumatic power cylinder |
