Brand: Iscar

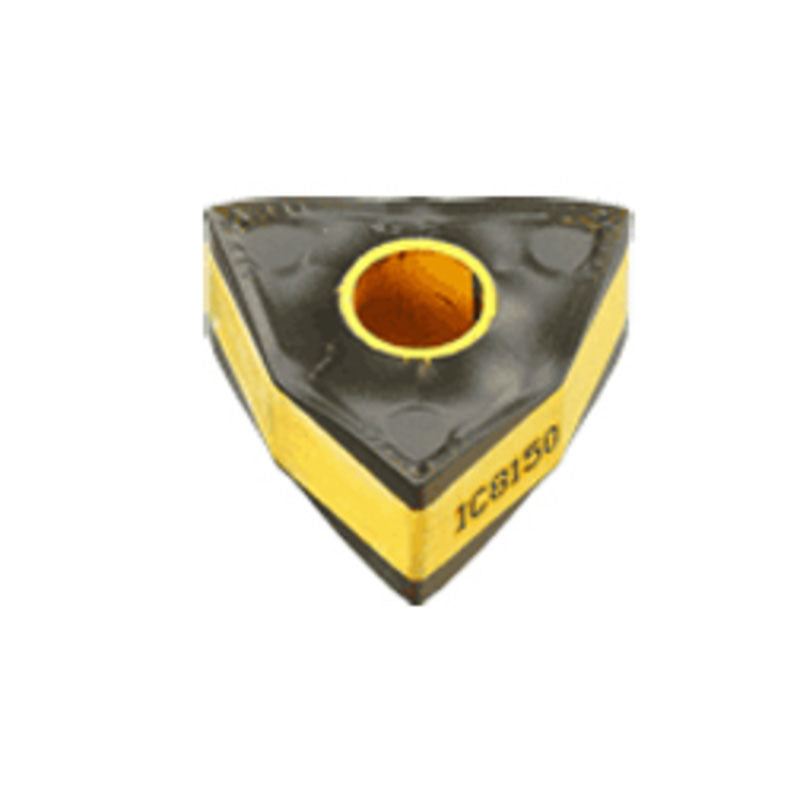

Iscar EH5507993 WNMX 342-M3PW IC8150
SKU: FTS-EH5507993
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5507993 WNMX 342-M3PW IC8150Full Description
| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Trigon 95° Approach | Insert | Int. 80° Trigon 95° Approach | | Fixing Hole Diameter (D1) | 0.15" |
| Insert Style | WNMX | Min D.O.C. | 0.059" |
| Corner Radius (RE) | 0.0315" | Depth of Cut Maximum (APMX) | 0.157" |
| Insert Size | 342 | Min. Turning Feed (ft(min)) | 0.0098 "/rev |
| Cutting Edge Length (L) | 0.256" | Max. Turning Feed (ft(max)) | 0.0236 "/rev |
| Insert Thickness (S) | 0.174" | Chip Breaker Type | HTW |
| Inscribed Circle Diameter (IC) | 3/8" | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | TiCN+Al2O3+TiCN+TiN | Series/List # | WNMX 342-HTW |
| Grade | IC8150 | Body Material | Carbide |
Family Description
The insert has a very positive radial, helical cutting edgegand a positive rake angle, which reduces the cutting forces. A wiper corner design produces a high surface finish even at high feed rates. Used for heavy machining applications.
