Brand: Iscar

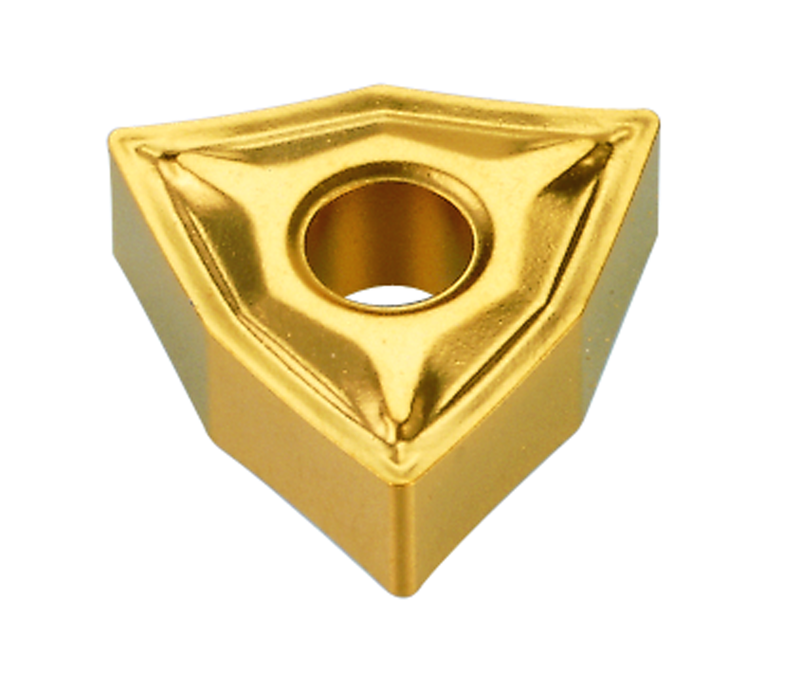

Iscar EH5550517 WNMG 3-1-SF IC807
SKU: FTS-EH5550517
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5550517 WNMG 3-1-SF IC807Full Description
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Trigon 95° Approach | Insert | Int. 80° Trigon 95° Approach | | Min D.O.C. | 0.012" |
| Insert Style | WNMG | Depth of Cut Maximum (APMX) | 0.059" |
| Corner Radius (RE) | 0.016" | Min. Turning Feed (ft(min)) | 0.002 "/rev |
| Insert Size | 3-1 | Max. Turning Feed (ft(max)) | 0.0059 "/rev |
| Cutting Edge Length (L) | 0.257" | Chip Breaker Type | SF |
| Insert Thickness (S) | 0.156" | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 3/8" | Shape | 80° Trigon |
| Cutting Edge Material | Carbide | Series/List # | WNMG 3-1-SF |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC807 |
Family Description
Double-sided trigon inserts for super finishing. Controls chip flow at very low feed and depth of cut. Excellent crater wear resistance.
For dimensions and tolerances, see more info.
