Brand: Iscar

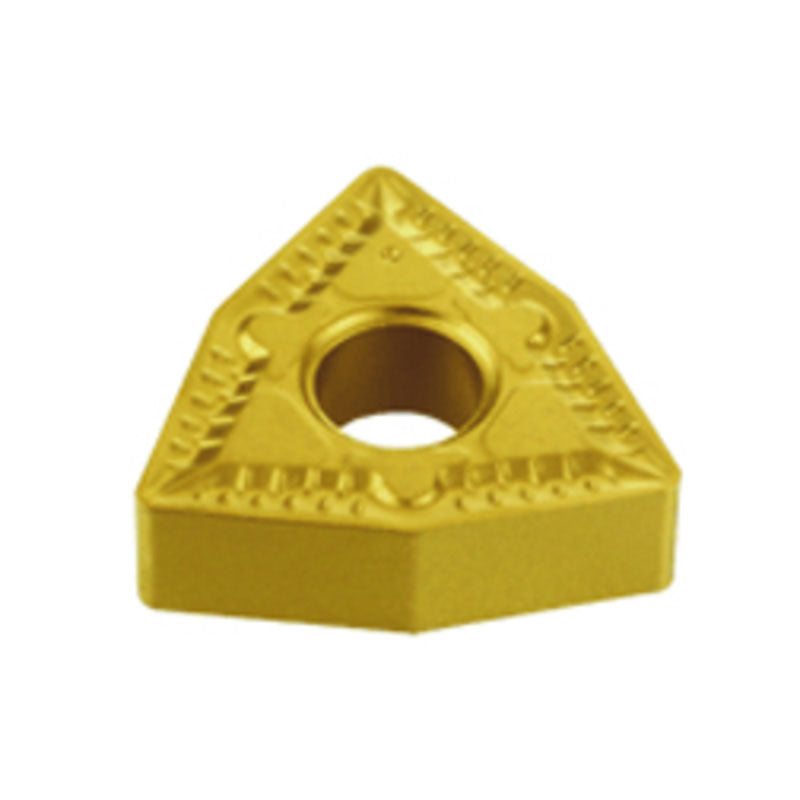

Iscar EH5591896 WNMG 3-1-GN IC9250
SKU: FTS-EH5591896
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5591896 WNMG 3-1-GN IC9250Full Description
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Trigon 95° Approach | Insert | Int. 80° Trigon 95° Approach | | Min D.O.C. | 0.039" |
| Insert Style | WNMG | Depth of Cut Maximum (APMX) | 0.138" |
| Corner Radius (RE) | 0.0157" | Min. Turning Feed (ft(min)) | 0.0055 "/rev |
| Insert Size | 3-1 | Max. Turning Feed (ft(max)) | 0.0157 "/rev |
| Cutting Edge Length (L) | 0.257" | Chip Breaker Type | GN |
| Insert Thickness (S) | 0.156" | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 3/8" | Shape | 80° Trigon |
| Cutting Edge Material | Carbide | Series/List # | WNMG 3-1-GN |
| Coating | TiCN+alpha Al2O3+TiN | Body Material | Carbide |
| Grade | IC9250 |
Family Description
Double-sided trigon insert, secure cutting edge, for medium- and semi-roughing on steel and cast iron.
For dimensions and tolerances, see more info.
