Brand: DESTACO

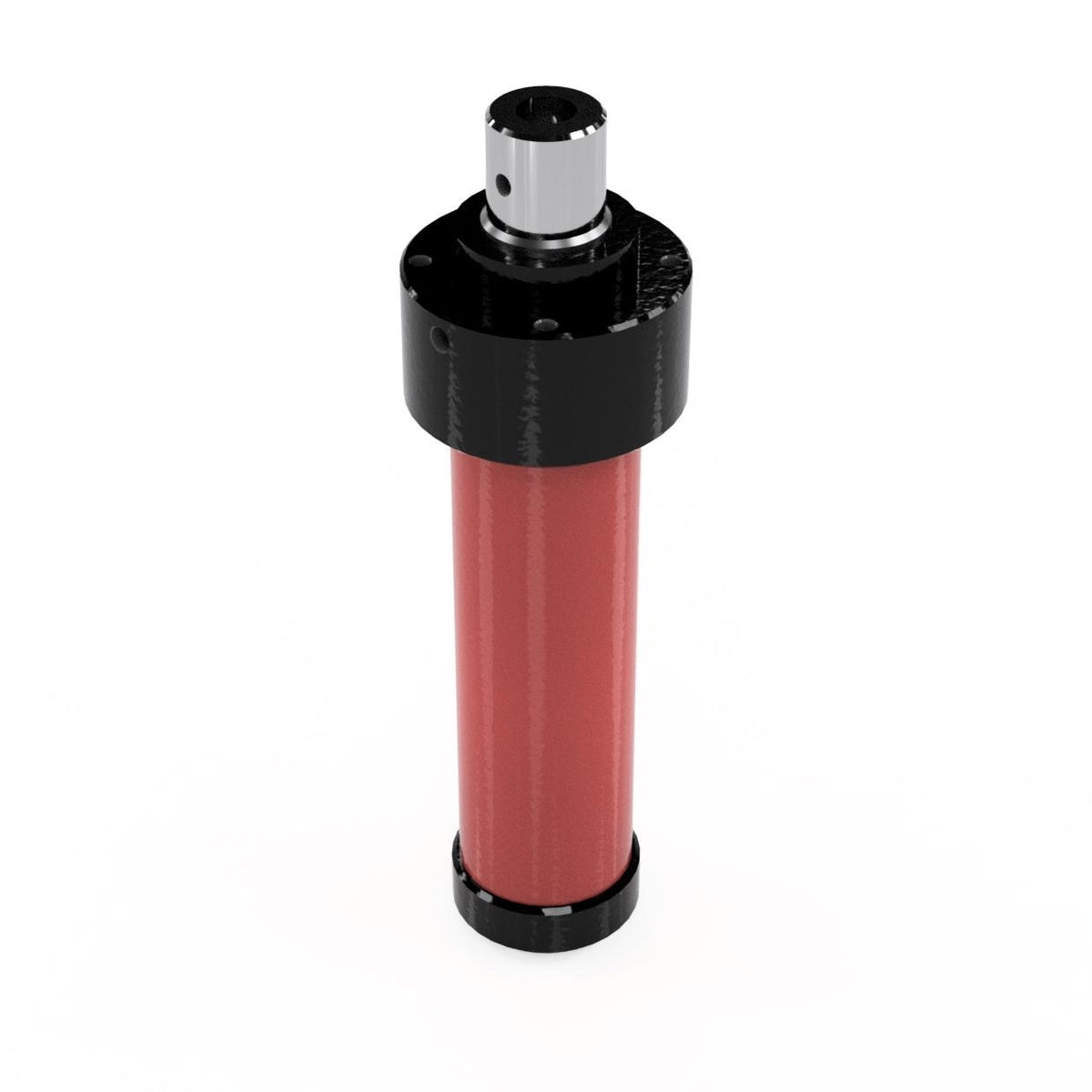

DESTACO WK4500-30-6-A - PNEUMATIC POWER CYLINDER

SKU: DE-STA-CO-WK4500-30-6-A
MPN: WK4500-30-6-A

$8,950.15
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO WK4500-30-6-A - PNEUMATIC POWER CYLINDER is essential for powering machines, tools, and devices. Its 10:1 mechanical advantage, based on the wedge lever principle, provides a powerful force - up to 45 kN - with only a short power stroke. The cylinder allows for precise positioning with its flange mount and works in any position. Its solid and maintenance-free wedge lever mechanics ensure long-lasting durability. The magnetic field sensing feature allows for accurate end position control. With a maximum clamping force of 10,116 lbsf and a bore size of 3.94 inches, this cylinder is a powerhouse for any application.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO WK4500-30-6-A - PNEUMATIC POWER CYLINDER

Power element of machines, tools, and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (45 kN). Piston rod with ISO fit.

10:1 mechanical advantage
Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
Exact positioning of the cylinder by flange mount on cylinder‚¬„¢s head
The cylinder works in any position
High durability because of solid and maintenance-free wedge lever mechanics.
End position control by magnetic field sensing

Note:Operating pressure max. 6 bar [87psi], min 3 bar [44psi]. Use only clean, water- and oil-free compressed air. The piston rod is not secured against twisting and should not be loaded transversal.

Max. Clamping Force (lbsf)	10,116
Forward Stroke (in)	1.180
Cylinder Bore (in)	3.94
Power Stroke (in)	0.236
Temperature Range	-5 to 75°C (23 to 167°F)
Product Type	Piston Rod with ISO Fit
Piston force within forwarding stroke at 6 bar (lbf)	944
Air Consumption per double stroke at 6 bar (ft³)	7.170
Air Consumption per double stroke at 87 psi (ft³)	0.25
Stroke Frequency depending on total stroke (per minute)	5 to 25
End position control by magnetic field sensors	Yes
Weight (lb)	30.90
Product Series Description	Power Cylinder
Product Function	Clamping
Product Family	Heavy-Duty Pneumatic Clamping
Product Group	pneumatic power cylinder
