Brand: DESTACO

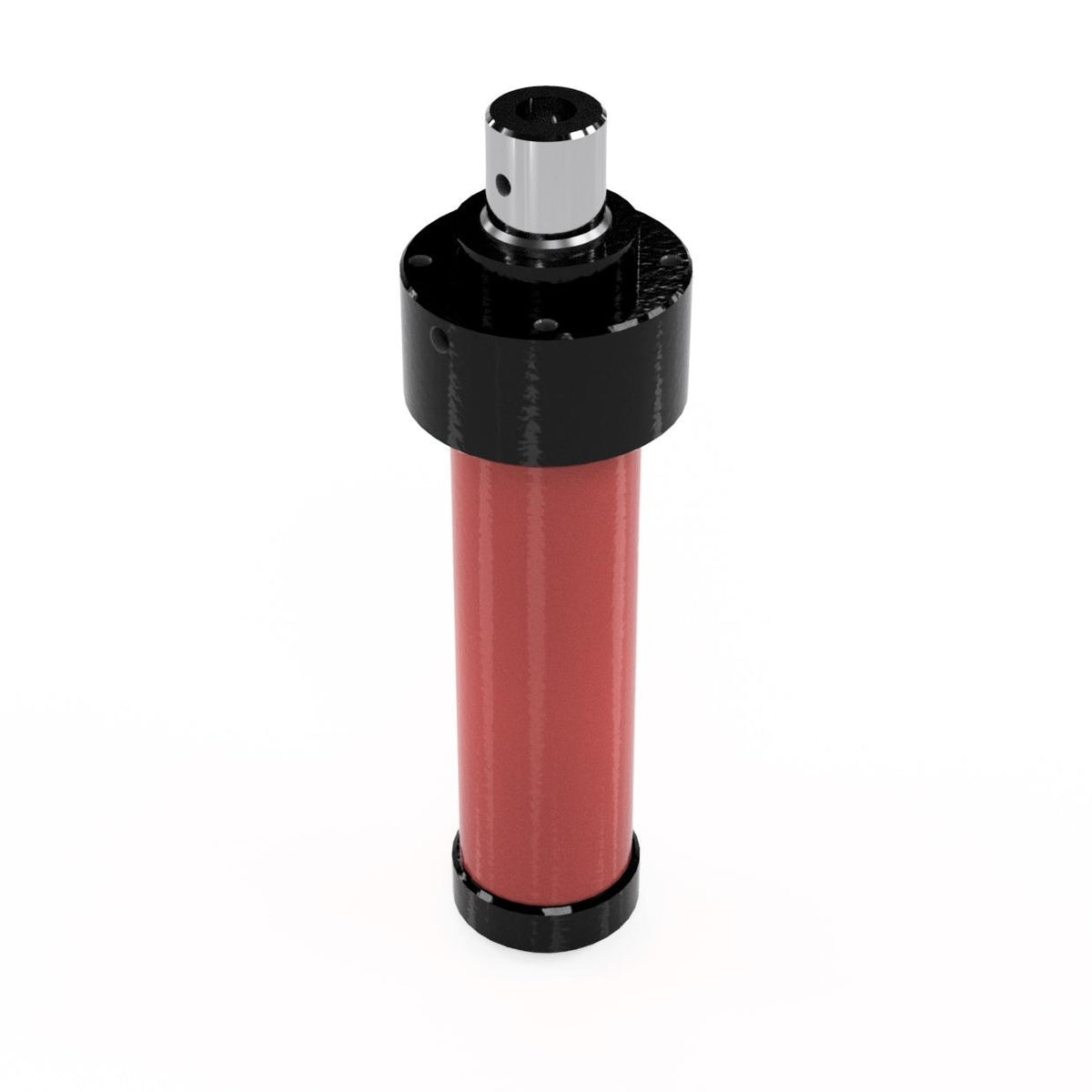

DESTACO WK4500-200-6-A - PNEUMATIC POWER CYLINDER

SKU: DE-STA-CO-WK4500-200-6-A
MPN: WK4500-200-6-A

$9,231.15
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO WK4500-200-6-A is a powerful, high-quality pneumatic cylinder that can increase the effectiveness of machines, tools, and devices. Featuring a 10:1 mechanical advantage thanks to its wedge lever principle, this unit has a two-step stroke for precise and powerful movement. Its piston rod is ISO-fit for optimal performance, and it offers exact positioning through flange mounting on the cylinder's head. This versatile cylinder can be used in any position and has solid, maintenance-free wedge lever mechanics for long-lasting durability. Its end positions can be easily controlled through magnetic field sensing, and it can provide a maximum clamping force of 10,116 lbsf. With a 7.870 inch forward stroke and a 3.94 inch cylinder bore, the DESTACO WK4500-200-6-A is the ultimate choice for superior power and performance.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO WK4500-200-6-A - PNEUMATIC POWER CYLINDER

Power element of machines, tools, and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (45 kN). Piston rod with ISO fit.

10:1 mechanical advantage
Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
Exact positioning of the cylinder by flange mount on cylinder‚¬„¢s head
The cylinder works in any position
High durability because of solid and maintenance-free wedge lever mechanics.
End position control by magnetic field sensing

Note:Operating pressure max. 6 bar [87psi], min 3 bar [44psi]. Use only clean, water- and oil-free compressed air. The piston rod is not secured against twisting and should not be loaded transversal.

Max. Clamping Force (lbsf)	10,116
Forward Stroke (in)	7.870
Cylinder Bore (in)	3.94
Power Stroke (in)	0.236
Temperature Range	-5 to 75°C (23 to 167°F)
Product Type	Piston Rod with ISO Fit
Piston force within forward stroke at 6 bar (lbf)	944
Air Consumption per double stroke at 6 bar (ft³)	18.500
Air Consumption per double stroke at 87 psi (ft³)	0.65
Stroke Frequency depending on total stroke (per minute)	5 to 25
End position control by magnetic field sensors	Yes
Weight (lb)	47.80
Product Series Description	Power Cylinder
Product Function	Clamping
Product Family	Heavy-Duty Pneumatic Clamping
Product Group	pneumatic power cylinder
