Brand: DESTACO

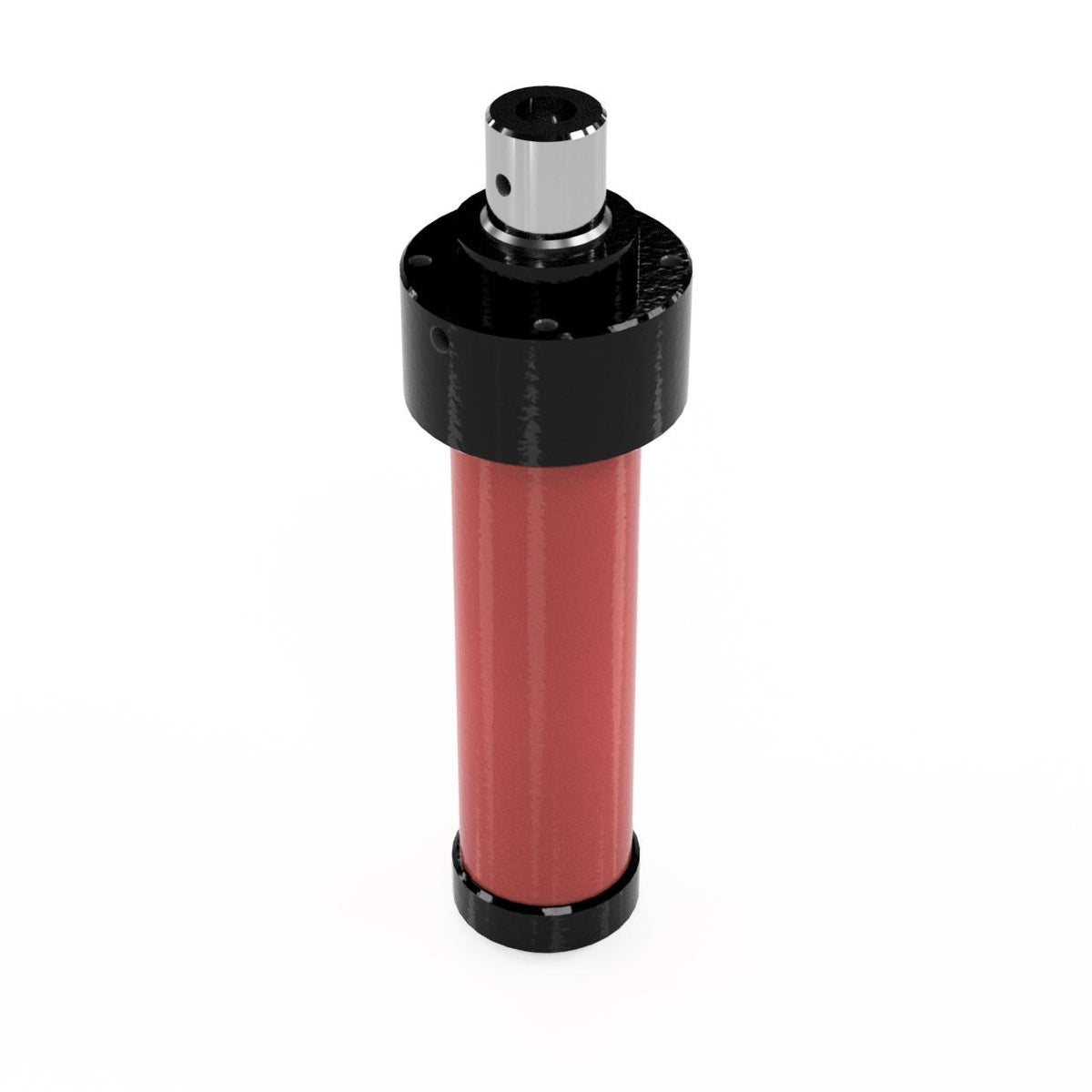

DESTACO WK400-50-6-1 - PNEUMATIC POWER CYLINDER

SKU: DE-STA-CO-WK400-50-6-1
MPN: WK400-50-6-1

$1,345.39
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO WK400-50-6-1 - PNEUMATIC POWER CYLINDER is an essential element for powering machines, tools, and devices. With a 10:1 mechanical advantage thanks to the wedge lever principle, it offers a two-step stroke that includes a forward motion and a power stroke with an impressive 4 kN force. This cylinder provides precise positioning with its ISO-fit piston rod and can be mounted on the cylinder's head for exact positioning. It is suitable for use in any position and boasts a long lifespan due to its sturdy and low-maintenance wedge lever mechanics. Thanks to magnetic field sensing, end position control is easily achieved. With a maximum clamping force of 899 lbsf, a forward stroke of 1.970 inches, a cylinder bore of 1.75 inches, and a short but powerful 0.236-inch power stroke, this cylinder is a reliable and efficient choice for your needs.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO WK400-50-6-1 - PNEUMATIC POWER CYLINDER

Power element of machines, tools, and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (4 kN). Piston rod with ISO fit.

10:1 mechanical advantage
Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
Exact positioning of the cylinder by flange mount on cylinder‚¬„¢s head
The cylinder works in any position
High durability because of solid and maintenance-free wedge lever mechanics.
End position control by magnetic field sensing

Note:Operating pressure max. 6 bar [87psi], min 3 bar [44psi]. Use only clean, water- and oil-free compressed air. The piston rod is not secured against twisting and should not be loaded transversal.

Max. Clamping Force (lbsf)	899
Forward Stroke (in)	1.970
Cylinder Bore (in)	1.75
Power Stroke (in)	0.236
Temperature Range	-5 to 75°C (23 to 167°F)
Product Type	Piston Rod with ISO Fit
Piston force within forwarding stroke at 6 bar (lbf)	153
Air Consumption per double stroke at 6 bar (ft³)	1.140
Air Consumption per double stroke at 87 psi (ft³)	0.04
Stroke Frequency depending on total stroke (per minute)	5 to 30
Weight (lb)	2.90
Product Series Description	Power Cylinder
Product Function	Clamping
Product Family	Heavy-Duty Pneumatic Clamping
Product Group	pneumatic power cylinder
