Brand: Widia

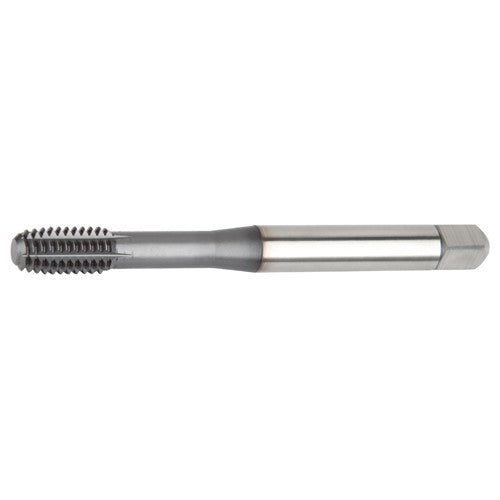

Widia WK345945107 1/4-20 H4 FT BOTT DIN ANSI HSS
SKU: FTS-WK345945107
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Widia WK345945107 1/4-20 H4 FT BOTT DIN ANSI HSSFull Description
| Tool Type | High Performance Tap|Forming Tap | Threads per Inch (TPI) | 20 |
| Thread Diameter Size (TDZ) | 1/4" | Helix Angle | 45 Degrees|CW |
| Overall Length (OAL) | 3.15" | Chamfer | 1P-2P |
| Thread Cutting Part Length (THL) | 0.51" | Measurement Type | Fractional |
| Connection Diameter Machine Side (DCONMS) | 0.255" | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H4 | Style | Bottoming |
| Tap Standard | ANSI|DIN | Cutting Edge Material | HSSCoPM |
| Thread Standard | NC | Cutting Direction (HAND) | Right Hand |
| Coating | TiCN | Thread Size | 1/4" - 20 |
| Coolant Supply Property (CSP) | External |
