Brand: Widia

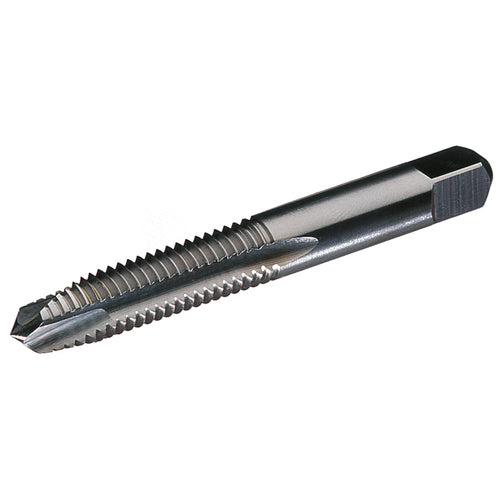

Widia WK302750135 13277 5301 1/4-28NF H1 GUN TAP
SKU: FTS-WK302750135
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Widia WK302750135 13277 5301 1/4-28NF H1 GUN TAPFull Description
| Thread Standard | NF | Applicable Material | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Thread Size | 1/4" - 28 | Connection Diameter Machine Side (DCONMS) | 0.255" |
| Thread Diameter Size (TDZ) | 1/4" | Thread Cutting Part Length (THL) | 1" |
| Threads per Inch (TPI) | 28 | Flute Type | Spiral |
| Thread Tolerance Class (TCTR) | H1 | End Shape | Spiral Point |
| Overall Length (OAL) | 2-1/2" | Style | Plug |
| Chamfer | 3P-5P | Shank Type | Round w/ Drive Square |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Square Size | 0.191" |
| Cutting Edge Material | HSS | Measurement Type | Fractional |
