Brand: Iscar

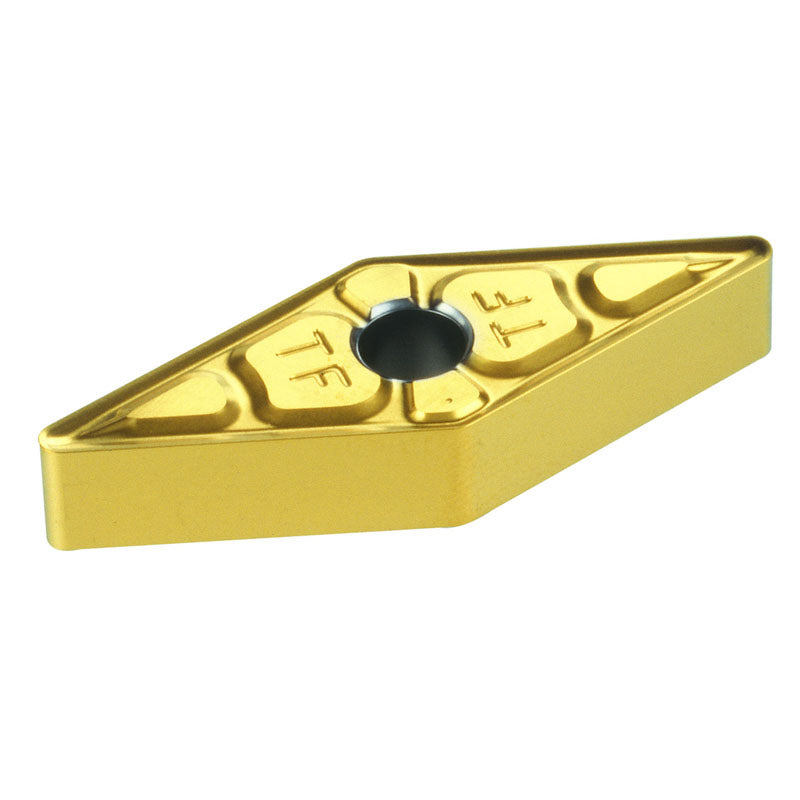

Iscar EH5550506 VNMG 333-TF IC807
SKU: FTS-EH5550506
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5550506 VNMG 333-TF IC807Full Description
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Insert | Int. 35° Diamond 93° Approach | | Min D.O.C. | 0.039" |
| Insert Style | VNMG | Depth of Cut Maximum (APMX) | 0.157" |
| Corner Radius (RE) | 0.0472" | Min. Turning Feed (ft(min)) | 0.0047 "/rev |
| Insert Size | 333 | Max. Turning Feed (ft(max)) | 0.015 "/rev |
| Cutting Edge Length (L) | 0.654" | Chip Breaker Type | TF |
| Insert Thickness (S) | 0.187" | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 3/8" | Shape | 35° Rhombic |
| Cutting Edge Material | Carbide | Series/List # | VNMG 333-TF |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC807 |
Family Description
Double-sided, 35° rhombic insert, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys.
For dimensions and tolerances, see more info.
