Brand: Iscar

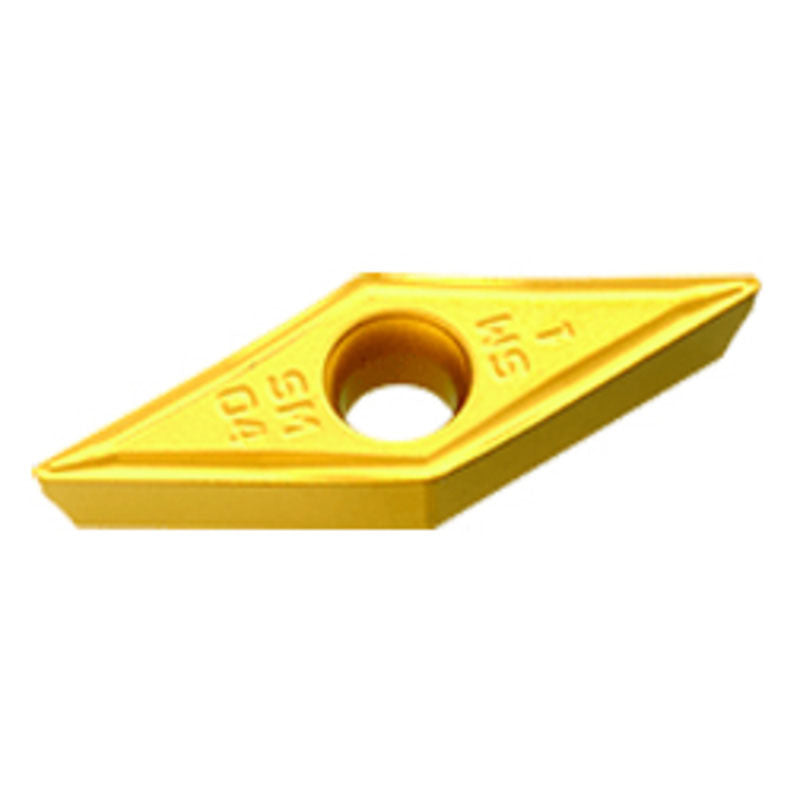

Iscar EH5508065 VNMG 2.5-2-NF IC5010
SKU: FTS-EH5508065
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5508065 VNMG 2.5-2-NF IC5010Full Description
| Applicable Material | | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Insert | Int. 35° Diamond 93° Approach | | Fixing Hole Diameter (D1) | 0.14" |
| Insert Style | VNMG | Min D.O.C. | 0.039" |
| Corner Radius (RE) | 0.031" | Depth of Cut Maximum (APMX) | 0.118" |
| Insert Size | 2.5-2 | Min. Turning Feed (ft(min)) | 0.0031 "/rev |
| Cutting Edge Length (L) | 0.488" | Max. Turning Feed (ft(max)) | 0.0094 "/rev |
| Insert Thickness (S) | 0.156" | Chip Breaker Type | NF |
| Inscribed Circle Diameter (IC) | 0.281" | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 35° Rhombic |
| Coating | TiCN+Al2O3+TiN | Series/List # | VNMG 2.5-2-NF |
| Grade | IC5010 | Body Material | Carbide |
Family Description
Double-sided 35° rhombic inserts for semi-finishing and finishing applications. Low cutting forces due to very sharp edge and positive rake.
For dimensions and tolerances, see more info.
