Brand: Ultra-Dex
Ultra-Dex FG553284 UD-1812–2D–150 2XD Indexable Drill
SKU: FTS-FG553284
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ultra-Dex 926-000-131 UD-1812–2D–150 2XD Indexable DrillFull Description

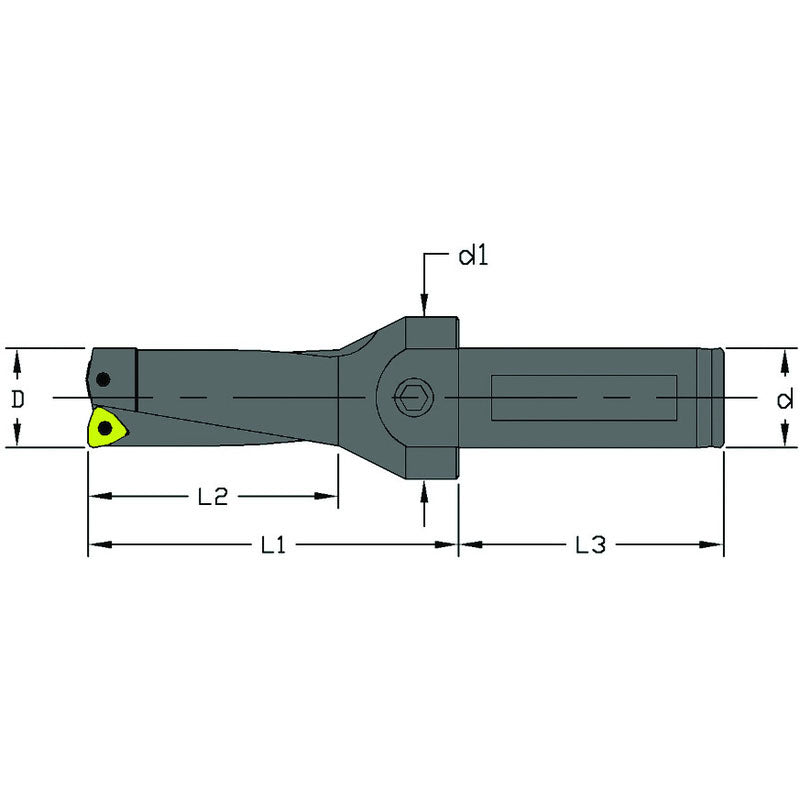

| Cutting Diameter (DC) | 1-13/16" | Functional Length (LF) | 5.025"Ultra-Dex FG553284 UD-1812–2D–150 2XD Indexable Drill" |
| Usable Length (LU) | 3.624" | Overall Length (OAL) | 7.9" |
| Connection Diameter Machine Side (DCONMS) | 1-1/2" | Length Group | 2xD |
| Protruding Length (LPR) | 5.025" | Master Insert Identification (MIID) | WCMX 433 |
| Shank Length (LS) | 2-7/8" | Decimal Equivalent | 1.8125" |
• 80° Trigon inserts offer 3 cutting edges • Coolant-thru access on bottom of shank and the side of the drill body • Spiral flutes to improve chip evacuation • Insert pockets precisely positioned to keep cutting forces low and evenly distributed • ION nitride coating available for tough applications • Proudly made in the USA
