Brand: Ultra-Dex
Ultra-Dex FG5530070 UD-1031–2D–100–1.031" Dia - Indexable Drill - Coolant Thru
SKU: FTS-FG5530070
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ultra-Dex 926-000-065 UD-1031–2D–100–1.031" Dia - Indexable Drill - Coolant ThruFull Description

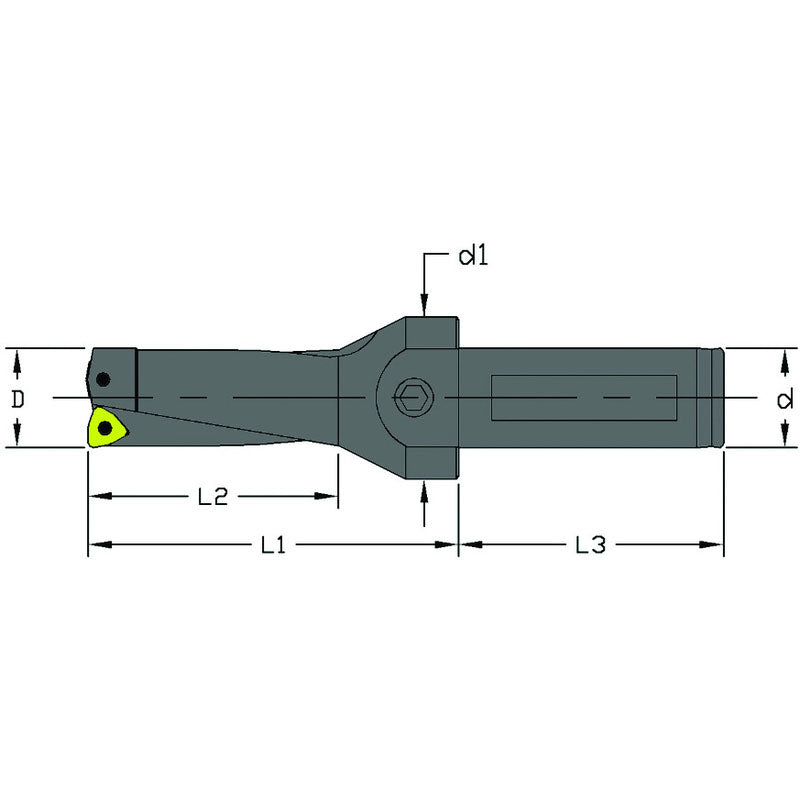

| Cutting Diameter (DC) | 1-1/32" | Functional Length (LF) | 2.375" |
| Usable Length (LU) | 2.062" | Overall Length (OAL) | 5.61" |
| Connection Diameter Machine Side (DCONMS) | 1" | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Length Group | 2xD |
| Protruding Length (LPR) | 3.235" | Master Insert Identification (MIID) | WCMX 2.522 |
| Shank Length (LS) | 2-3/8" | Decimal Equivalent | 1.0312" |
• Coolant-Thru access on bottom of shank and the side of the drill body • Spiral flutes to improve chip evacuation • Insert pockets precisely positioned to keep cutting forces low and evenly distributed
