Brand: Tungaloy

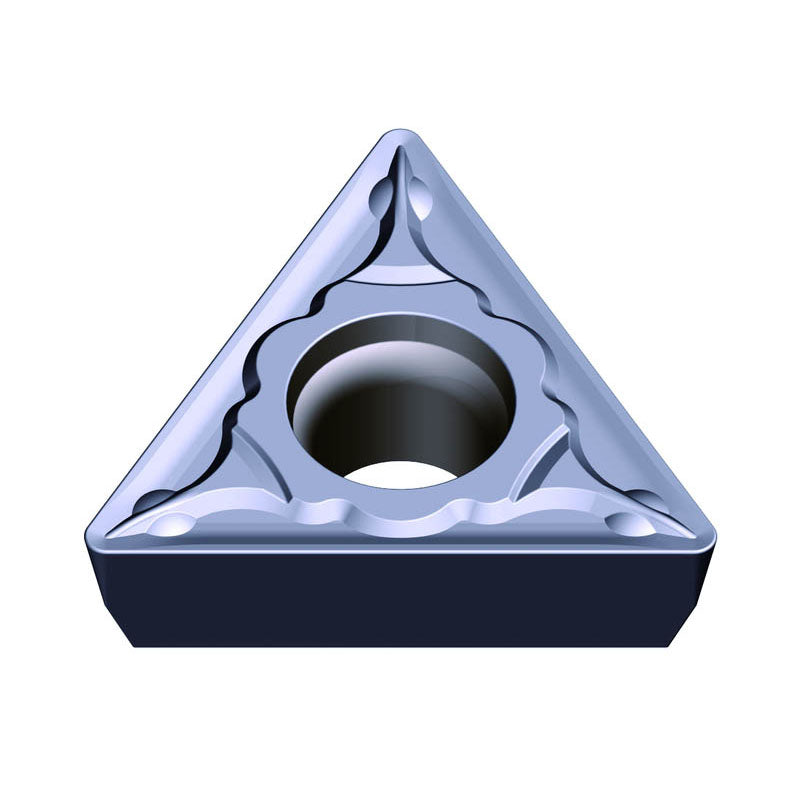

Tungaloy TG556856684 TPMT 32.52 PS AH725

SKU: FTS-TG556856684
MPN: 6856684

$15.69
Unit price per
Save $0.33

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Tungaloy 6856684 TPMT 32.52 PS AH725

Full Description

Applicable Material	\| Steel \| Stainless Steel \| Hi Temp Alloys \|	Fixing Hole Diameter (D1)	0.173"
Application	\| Inserts \|	Min D.O.C.	0.0197"
Insert Style	TPMT	Depth of Cut Maximum (APMX)	0.0984"
Corner Radius (RE)	0.031"	Min. Turning Feed (ft(min))	0.0039 "/rev
Insert Size	32.52	Max. Turning Feed (ft(max))	0.0118 "/rev
Cutting Edge Length (L)	0.65"	Clearance Angle Major (AN)	11 Degrees
Insert Thickness (S)	0.156"	Cutting Direction (HAND)	Neutral
Inscribed Circle Diameter (IC)	3/8"	Chip Breaker Type	PS
Cutting Edge Material	Carbide	Measurement Type	Inch
Coating	TiAlN	Series/List #	TPMT 32.52-PS
Grade	AH725	Body Material	Carbide
Tool Type	Turn Positive Inserts

Family Description

Positive 11deg relief ang., M class, triangular insert, for finishing to medium cutting
