Brand: Iscar

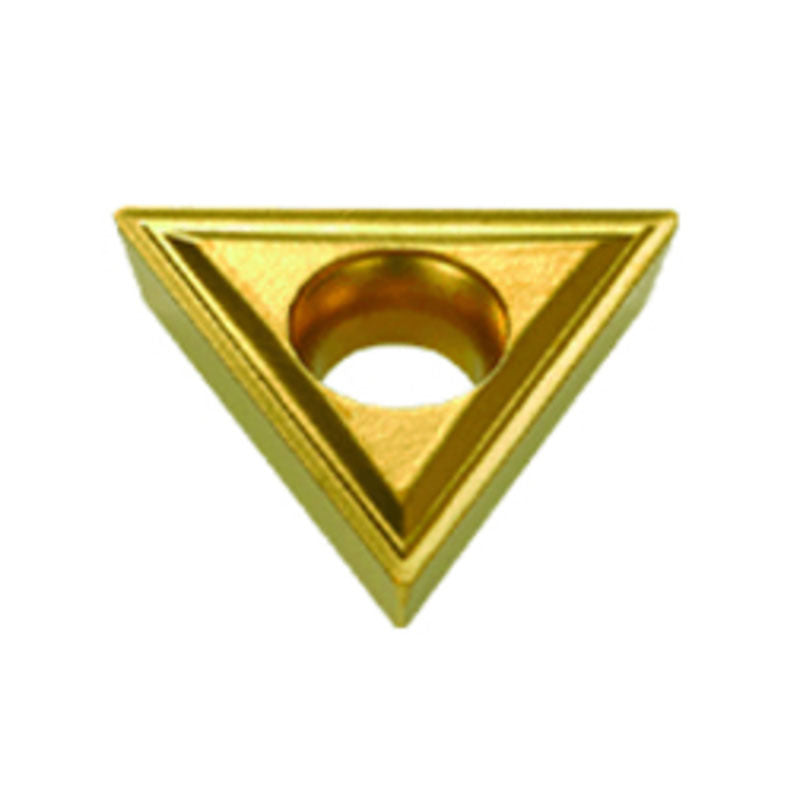

Iscar EH5505522 TPMT 321 IC907
SKU: FTS-EH5505522
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5505522 TPMT 321 IC907Full Description
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | | Tool Type | Turn Positive Inserts |
| Application | | Chamfering & Bottom Deburring | Countersinking | Insert | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | Slanted Shoulder & Chamfer | | Fixing Hole Diameter (D1) | 0.169" |
| Insert Style | TPMT | Min D.O.C. | 0.039" |
| Corner Radius (RE) | 0.0157" | Depth of Cut Maximum (APMX) | 0.157" |
| Insert Size | 321 | Min. Turning Feed (ft(min)) | 0.0047 "/rev |
| Cutting Edge Length (L) | 0.65" | Max. Turning Feed (ft(max)) | 0.0118 "/rev |
| Insert Thickness (S) | 1/8" | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 3/8" | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC907 |
Family Description
11° positive triangular inserts. Positive chipformer, low cutting forces. Used for internal turning and for finishing.
