Brand: DESTACO

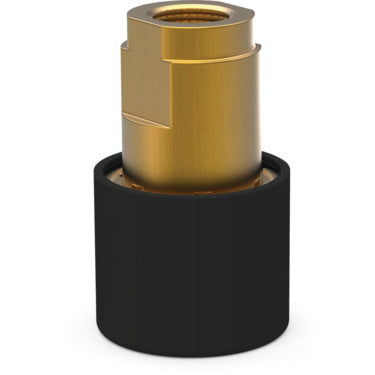

DESTACO CPI-TPLP15RB TPLP - MAGNET 1.5in W/ .03in URETHANE PAD AND LABEL(PTS KANBAN)
SKU: DE-STA-CO-CPI-TPLP15RB
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Promote the incredible possibility of the DESTACO CPI-TPLP15RB TPLP magnet, designed with a 1.5 inch width and .03 inch urethane pad with label (PTS KANBAN). This powerful tool is perfect for lifting and moving steel sheets, blanks, stamped parts, and assemblies with a maximum operating temperature of 140°F. Strong Rare Earth magnet holds parts securely, even in the event of air loss, with instantaneous pick-up and release at a maximum 60psi supply air pressure. With a Durometer of 50 and a low skid design, it boasts a vertical lift holding capacity of 3.18 kg to 4.54 kg with pad and 4.54 kg to 7.71 kg without pad. This round-shaped mag-lift magnet has a diameter of 1.5 inches, weighs 136 grams, and operates at a pressure of 2.4 bar or 35 PSI.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-TPLP15RB TPLP - MAGNET 1.5in W/ .03in URETHANE PAD AND LABEL(PTS KANBAN)
Product Details
DESTACO TPLP Series Magnets are ideal for use where vacuum cups or grippers are not able to be used and are typically used for lifting and moving steel sheets, blanks, stamped parts and complete assemblies.
- Powerful Rare Earth magnet positively holds parts - no dropping or shifting in the event of air loss
- Instantaneous pick-up and release - maximum 60psi supply air pressure to release with spring return for pick-up operation
- Maximum operating temperature 140° F (60° C)
Holding Capacity - Vertical Lift (kg) | 3.18 (26 Ga. metal plate) to 4.54 (3/16" metal pate) with pad 4.54 (26 Ga. metal plate) to 7.71 (3/16" metal pate) without pad |
Holding Capacity - Vertical Lift (lbf) | 7.0 (26 Ga. metal plate) to 10.0 (3/16" metal pate) with pad 10.0 (26 Ga. metal plate) to 17.0 (3/16" metal pate) without pad |
Weight (g) | 136.0 |
Weight (oz) | 5.0 |
Diameter (mm) | 38.1 |
Diameter (in) | 1.500 |
Operating Pressure (bar) | 2.4 |
Operating Pressure (PSI) | 35 |
Durometer | 50 (low skid) |
Mount | 3/8" NPT |
Port | 3/8" NPT Compressed Air Port |
Shape | Round |
Product Type | Mag-Lift Magnet |
Cup Size | 1.50 in |
Product Series Description | Magnet |
